Dominator / ES2 / Mod 50 / Commando / Jubilee
Spares / AMC Ersatzteile
All Parts + Post/Packing + (19%) VAT
Payment with C.Card (+6%)
or PayPal (+ our Charge)
or Bank Transfer
click pictures to enlarge
|
Norton Dominator / ES2 / Mod 50 / Commando / Jubilee Spares / AMC Ersatzteile All Parts + Post/Packing + (19%) VAT Payment with C.Card (+6%) or PayPal (+ our Charge) or Bank Transfer click pictures to enlarge |
|
| Norton Model 50 / Dominator | Norton Commando / ES2 |
 click |
| Valves / Ventile | Engine / Motor | Clutch , Gearbox / Kupplung , Getriebe | Wheels / Räder | Fork / Gabel | Sundries / Verschiedenes | Electric / Elektrik |
| Valves / Ventile Top Menue |
|||||
 |
 |
 |
 |
||

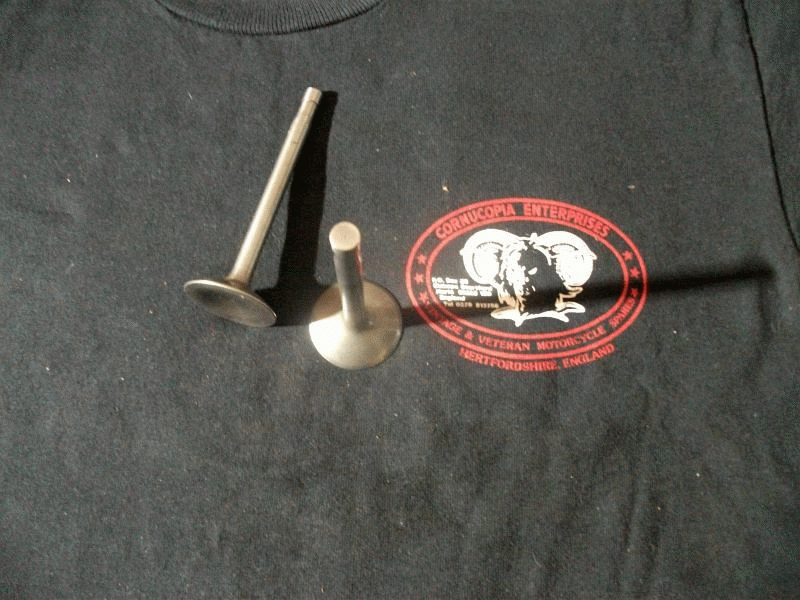

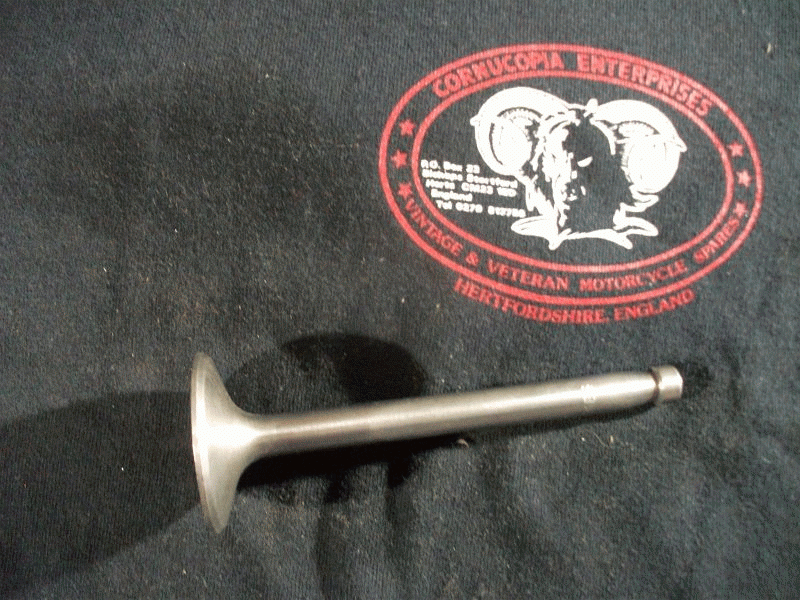

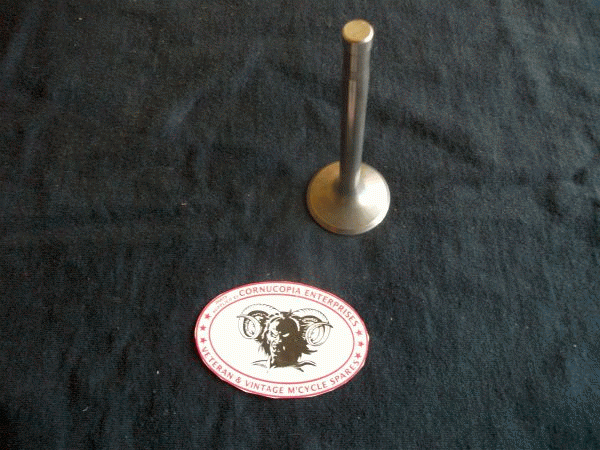

| Norton Valve Inlet or Exhaust NOS British Made ( James 3716 ) fits 1955-63 350cc Mod 50, fitted after Engine No. 73496 Norton Part No. L13-142 18737 |

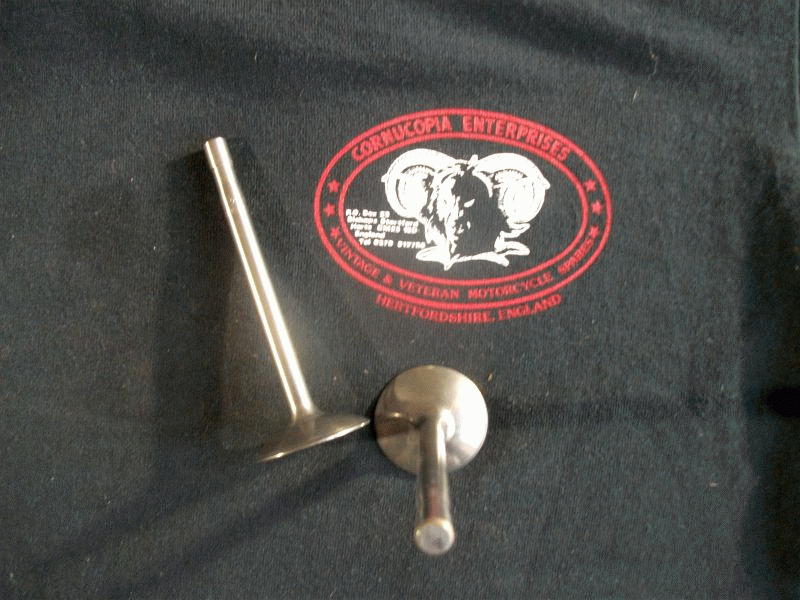

Norton Valve Inlet NOS British Made ( James 3717 ) fits 1960-66 Domminator 88, 99 + SS Manxman Twins |
Norton Valve Inlet NOS British Made ( James 44555 ) fits 1968-73 Norton Commando 750cc Twin Norton No 064034- 25501 |
Norton Valve Exhaust NOS British Made ( James 3705 ) Head 1. 19/32 = 40,5 mm, Stem .371 = 9,42, Length 4. 7/16 = 113,3 mm fits 1933-40 350cc OHV Mod 50 & 55 Norton Part No. 3075 |
||
| each 16,00 € | each 15,00 € | each 15,00 € | 18,00 € | ||
 |
 |
 |
 |
||

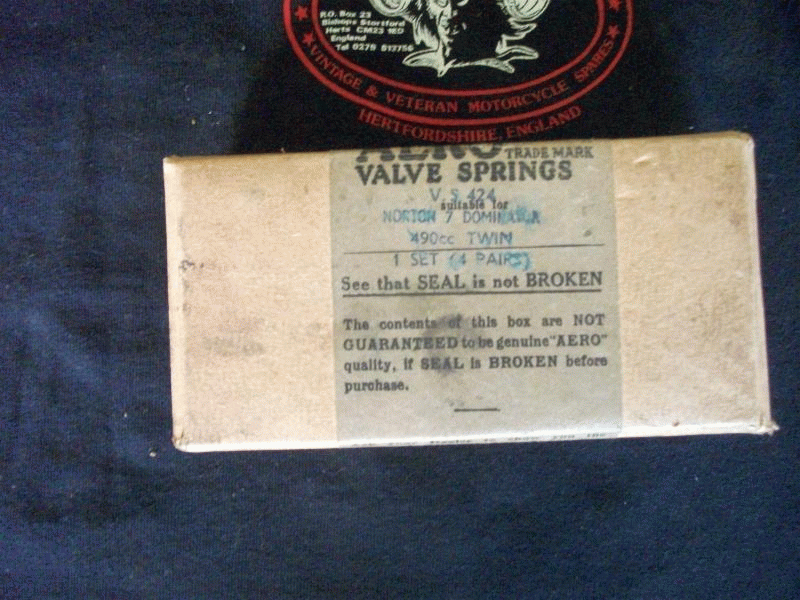

| Norton Valve Springs Genuine Terrys NOS VS 424 ( not the same as VS 501 !) fits 1949-50 Twin 500cc Model 7 ( Must be worth it only for the Box !) |

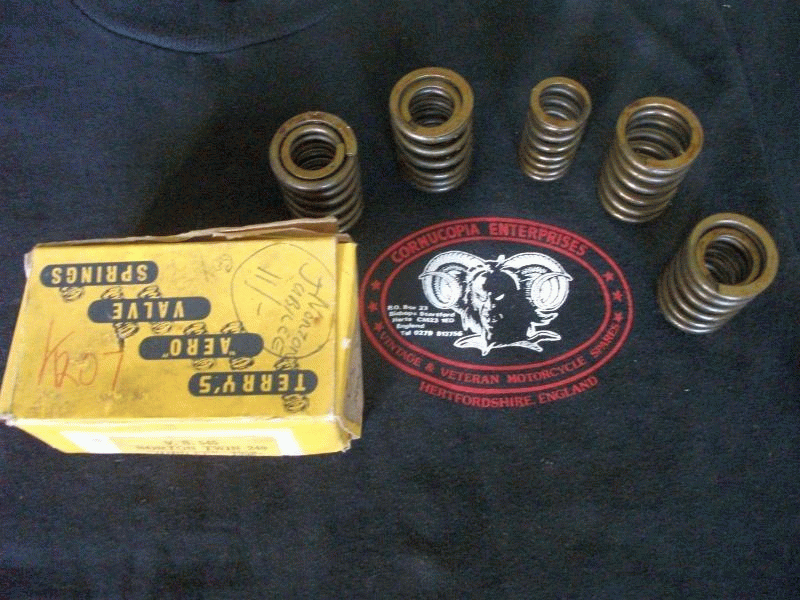

Norton Valve Spring Set Genuine Terrys NOS VS 545 fits Norton Jubilee 250cc Twins |

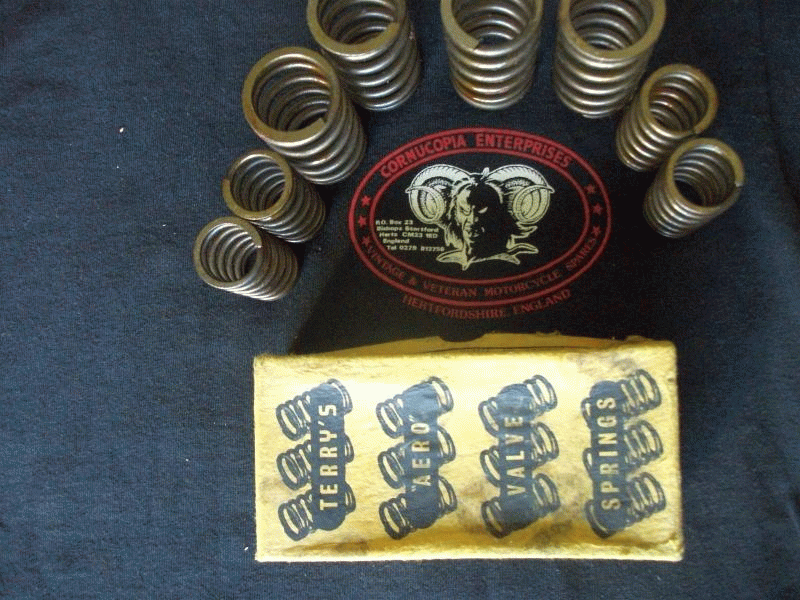

Norton Valve Springs Set Genuine Terrys NOS VS 501 fits 1950-62 Norton 500cc / 600cc 77-88-99 Twins |

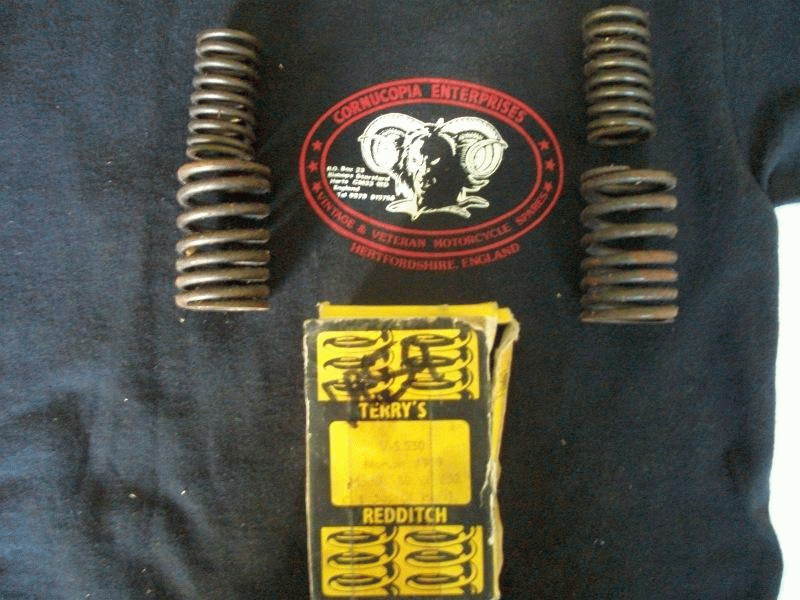

Norton Valve Spring Set Genuine Terrys NOS VS 530 fits 1959-63 Mod 50 350cc + ES2 500cc OHV Models |
||
| 40,00 € | 30,00 € | 35,00 € | 45,00 € | ||
 |
 |
||||

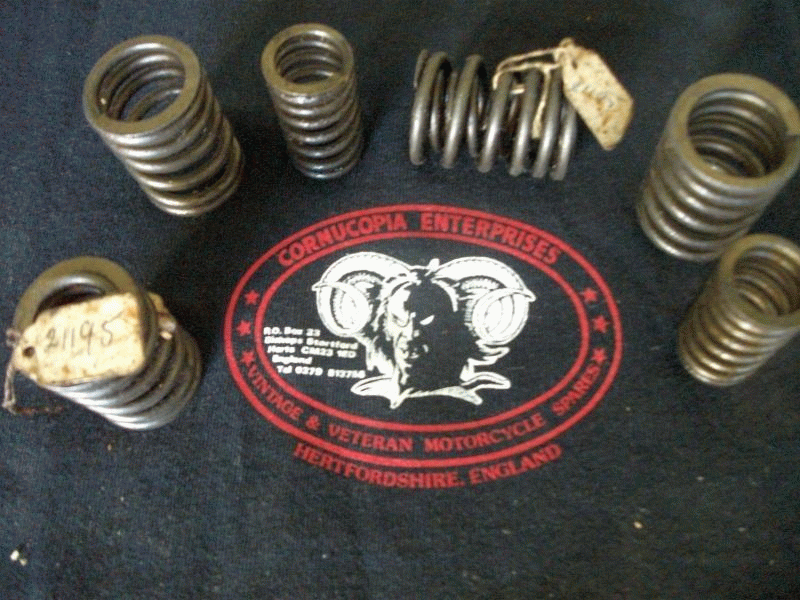

| Norton Valve Spring Set Genuine Norton NOS fits Jubilee 250cc, Navigator 350cc & 400cc E-Start ES 400 Norton Part No. 21194/95 |

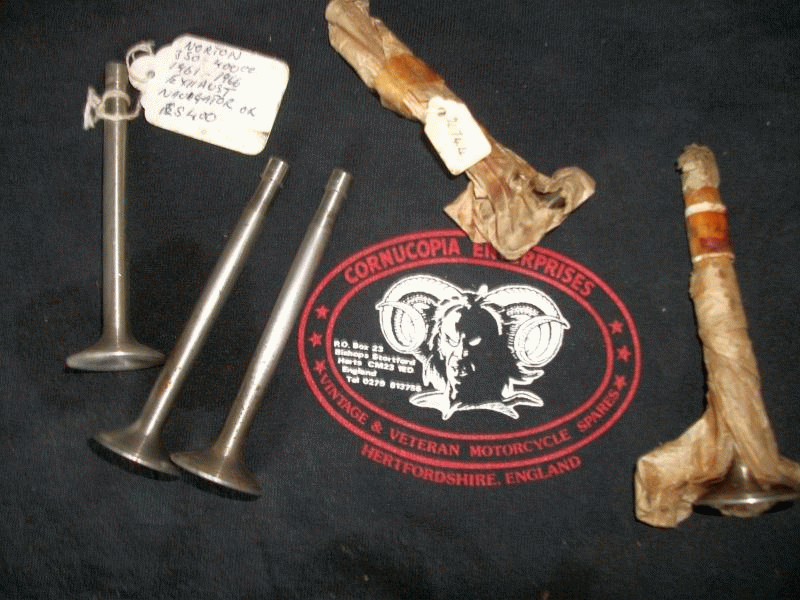

Norton Exhaust and Inlet Valves Norton Genuine NOS fits 1961-66 Norton Navigator 350cc + ES 400cc Norton Part No. 20744 |
||||
| 35,00 € | each 15,00 € | ||||
| Engine / Motor Back Menue |
|||||
 |
 |
||||

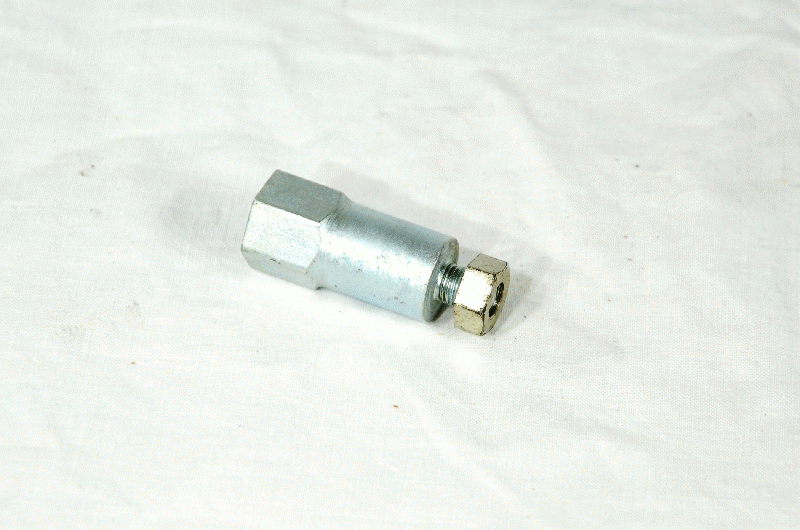

| Norton Inner Primary Chaincase Attachment Bolt + Nut ( Holds Inner Chaincase to Engine Plate ) Replica Norton Part No. 3423 | Norton Rocker Arms NOS Part No.( Casting No ) 10384 & 5 ( 84 Has end Pin missing ) Dia 12,8mm & 16.73, complete Length 64,39mm fit on Tapered Rocker Shafts fits what model ? Unknown ( Original Lable Shows Part No. A3/99 & A3/100 ? ) |
||||
| 12,00 € | Pair 100,00 € | ||||
| Clutch , Gearbox / Kupplung , Getriebe Top Menue |
|||||
 |
 |
 |
 |
||
| Norton Gearbox Return Spring for Pawl Carrier ( Replica ) Fits 1936-49 all Models Norton Part No. 3629 and A2/410 |
Norton Gearbox Bottom Bolt and Nut ( Replica ) 1/2 20 TPI + 5/16 26 TPI Threads Fits 1936-49 16H. ES2. 18 and Inters Norton Part No. 9461 and A2/312 |
Norton Kick Start Pawl Genuine NOS fits 1936-60 all Models Norton Part No. 9699 |

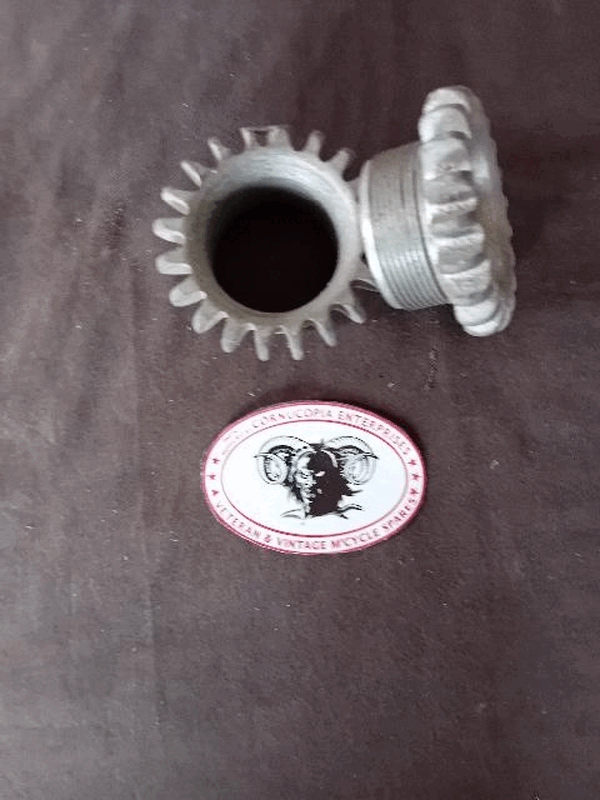

Norton Clutch Worm ( Fits in Gear Box Outer Cover ) Genuine NOS fits 1936-50 Models 16H, Mod 18, ES2, Inter Models 30 / 40 Norton Part No. 3608 ( A2 / 375 Late 50s ) |
||
| 6,00 € | 30,00 € | 26,00 € | 28,00 € | ||
 |
 |
 |
 |
||
| Norton Kickstart Pedal Bolt ( Black Finish ) Genuine NOS Size 1 3/16 X 5/16 ( many Applications on W.D. Nortons ) Norton Part No. 9702 |
Norton Gearbox, Pawl Carrier Spacing Washer ( Positive Stop Foot change Parts ) Genuine Norton NOS Norton Part No. 3634 |

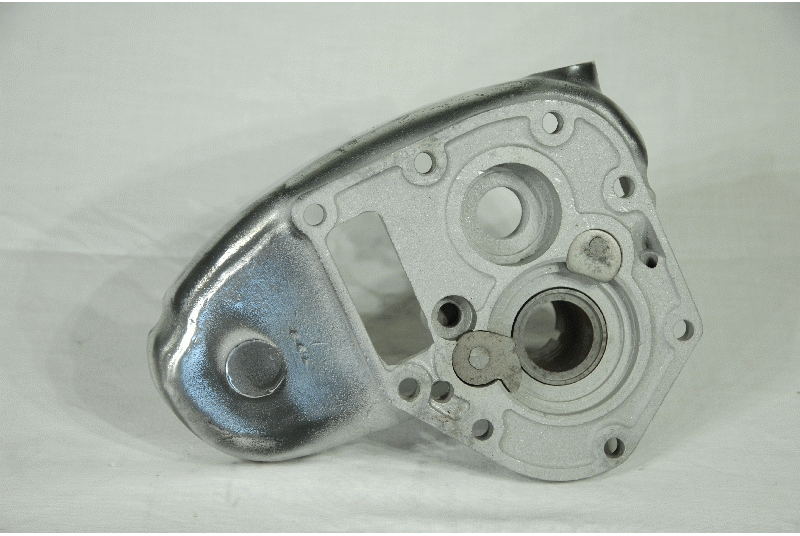

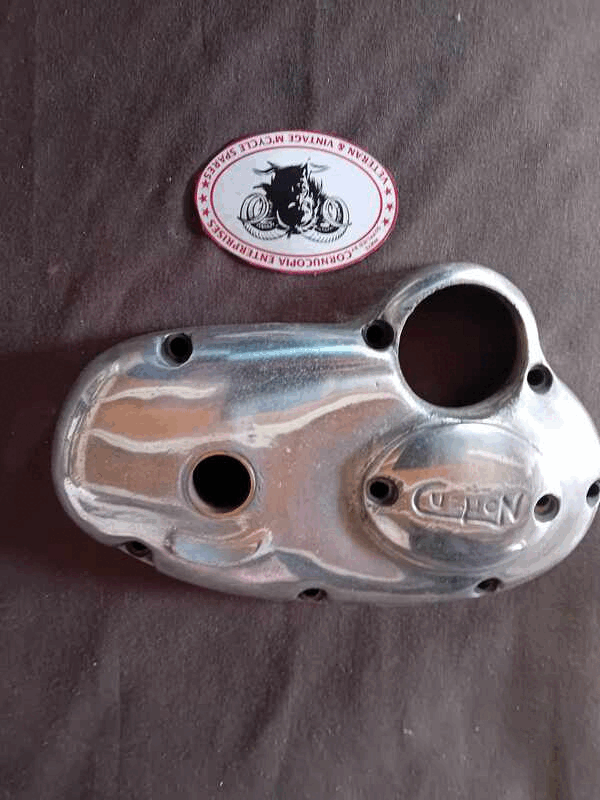

Norton Gear Box End Cover inner ( Lay Down G.Box ) Genuine ( used ) No Stamped on case GB8 2424 Bead Blasted, light polished Norton Part No. D12/300 T.N.73 |
Norton Gearbox Sprocket Nut, Tab Washer Genuine NOS fits all Models Norton Part No. 9715 |
||
| 5,00 € | 2,00 | 50,00 € | 8,00 € | ||
 |
 |
 |
 |
||
| Norton Set of 3 Clutch Springs Replica fits 1934-60 all Models 350cc, 500cc, 600cc Norton Part No. 3350 |
Norton Genuine NOS Gearbox Ratchet Plate Genuine fits 16H, Big Four, ES2 Models Norton Part No. 3641 |
Norton Gearbox Main Axel Pinion Genuine NOS ( 13 Teeth ) fits 16H, Big Four, ES2 Models Norton Part No. 9677 |
Norton Gearbox Main Axel Free Pinion Genuine NOS ( 18 Teeth ) fits 16H, Big Four, ES2 Models Norton Part No. 9676 |
||
| Set 18,00 € | 30,00 € | 45,00 € | 45,00 e | ||
 |
|||||

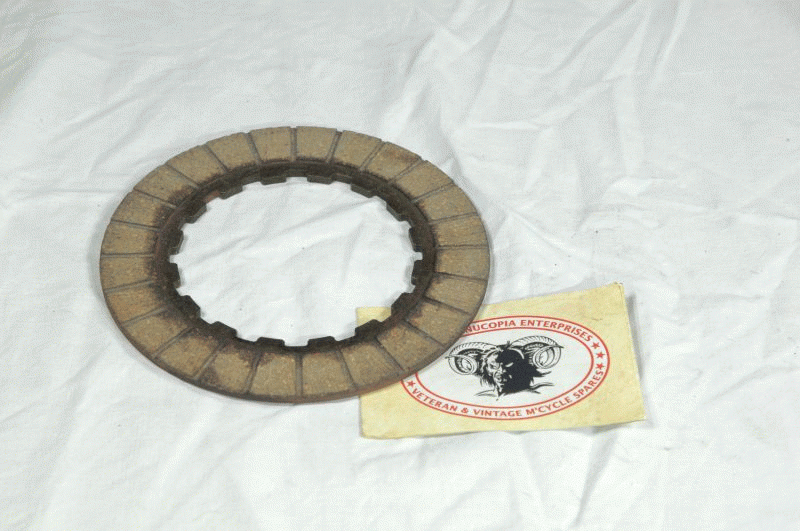

| Norton Clutch Friction Plate ( Make Surflex ) NOS bonded one Side, fits behind Pressure Plate fits all AMC Clutches from 1955 onwards Singles, Twins Norton Part No. 21260 |
|||||
| 16,00 € | |||||
| Wheels / Räder Top Menue |
|||||
 |
 |
 |
 |
||
| Norton used Front or Rear Brake Shoes ( Pair less Linings ) Genuine Norton fits 1936-50 all Models Norton Part No. 9499 |
Norton Brake Hub Bearing locking Ring Genuine NOS fits 1934-50 all Models with Half Hubs, Front or Rear Norton Part No. 3742 or A2/440 |
Norton Complete Front Hub & Brake Plate C/W Shoes, Bearings Etc Genuine Norton ( used ) ( Scalloped Type ) in good condition, Drum Surface, no scores ( Cooling, hole plugs in postion ) Please note, many Hubs fitted to 500T Models are a Standard 7 Inch Hub, with the scalloped Section filed out round the Drum, with Standard & Brake Plate fitted. ( includes a set of correct length used Spoke Set ) This Item has the original strengthened Brake Plate ( see Photos ) for Restoration fits 1949-50 Norton 500T Trial Model |

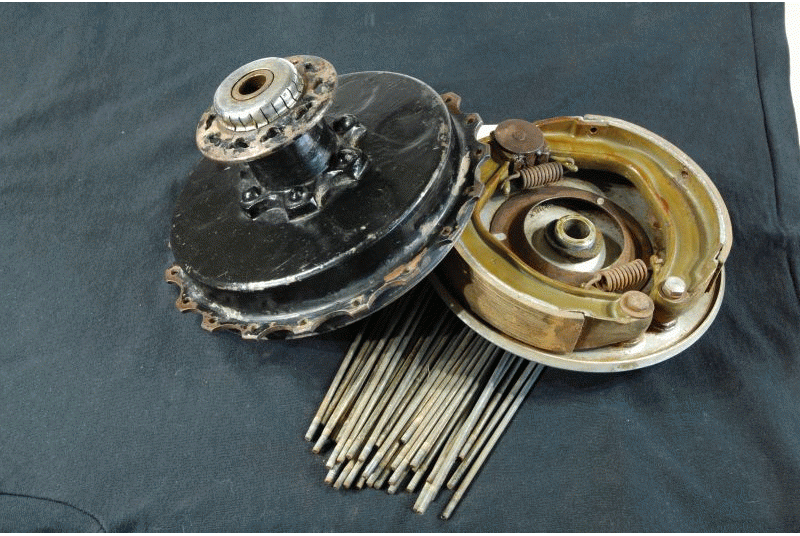

Norton Rear Brake Drum Genuine Norton NOS Sprocket 42 Teeth Genuine Pair Rear Brake Shoes Genuine Norton NOS fits 750cc & 850cc Twins Commando Norton Part No. Drum 06/2194 Shoes 06-3417 & 06-2194 |
||
| Pair 30,00 € | each 20,00 € | Sold 600,00 € |
150,00 € | ||
| Fork / Gabel Top Menue |
|||||
 |
|||||

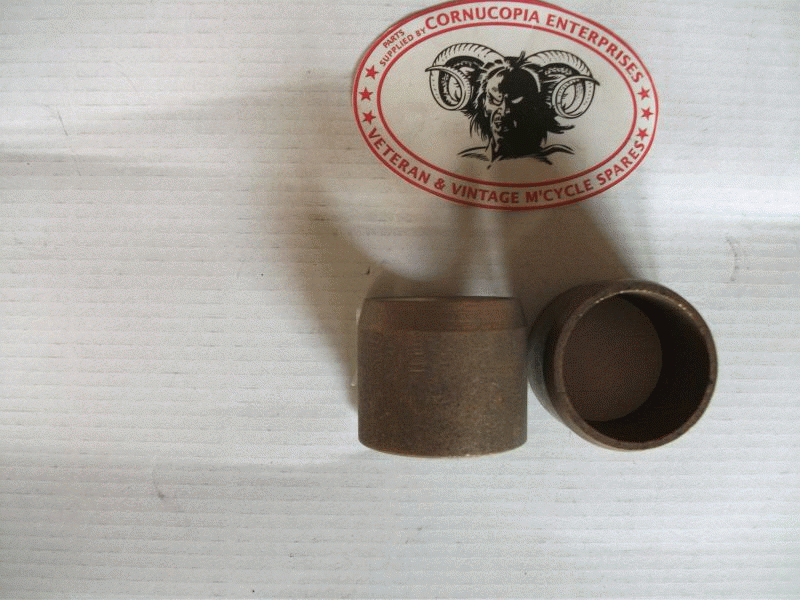

| AJS/Matchless Top Fork Bush Set ( two ) AMC Genuine NOS fits 250cc / 350cc Lightweight Matchless G2/G5 & AJS M14/M8 ( also fits 250cc Norton Jubilee Models ) AMC Part No. 21750 |
|||||
| Pair 45,00 € | |||||
| Sundries / Verschiedenes Top Menue |
|||||
 |
 |
 |
 |
||

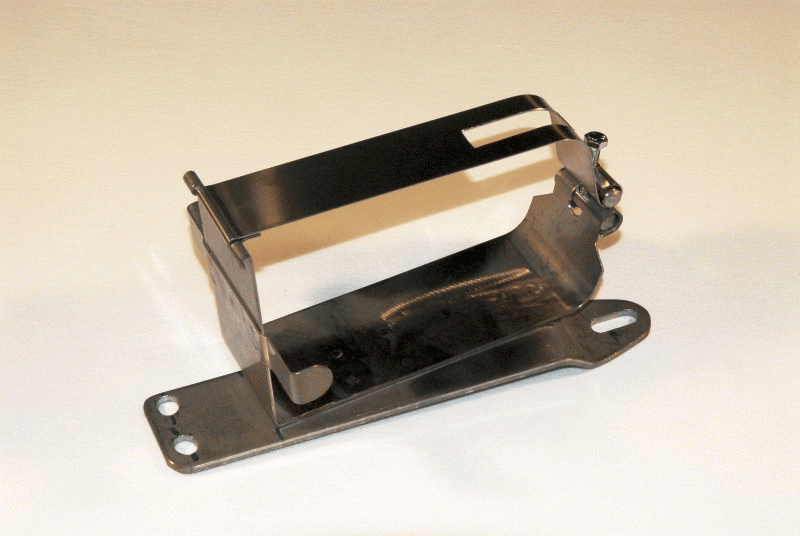

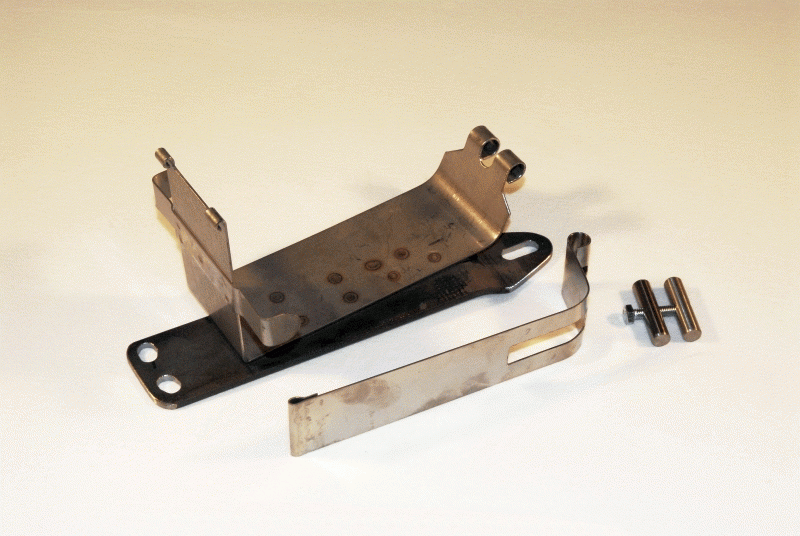

| Norton Twin Pre Featherbed Battery Carrier complete with Stainless Strap and Swivel Pin Set unpainted (Replica) fits Plunger ES2 models ( 1 ) complete Set ( 2 ) Carrier Strap and Swivel Pin Set Part No. NDR.B2 |
Norton Singles Pre Featherbed Battery Carrier complete with Stainless Strap and Swivel Pin Set unpainted (Replica) fits early Plunger and Swinging Arm Twins ( 1 ) complete Set ( 2 ) Carrier Strap and Swivel Pin Set Part No. NDR.B1 |
Norton Plunger Plunger Rear Frame Springs ( Replica ) Set of 4 Fits 1946-51 Norton Plunger Singles and Twins Norton Part No. B4/764 ( Top ) Norton Part No. B4/677 ( Bottom ) |
Norton Brake Shoe Springs ( Replica ) Fits 1936-70 all Models Norton Part No. 9502 and A27/446 |
||
| ( 1 ) 99,00 € ( 2 ) 42,00 € |
( 1 ) 99,00 € ( 2 ) 42,00 € |
80,00 € | Pair 12,50 € | ||
 |
 |
 |
 |
||

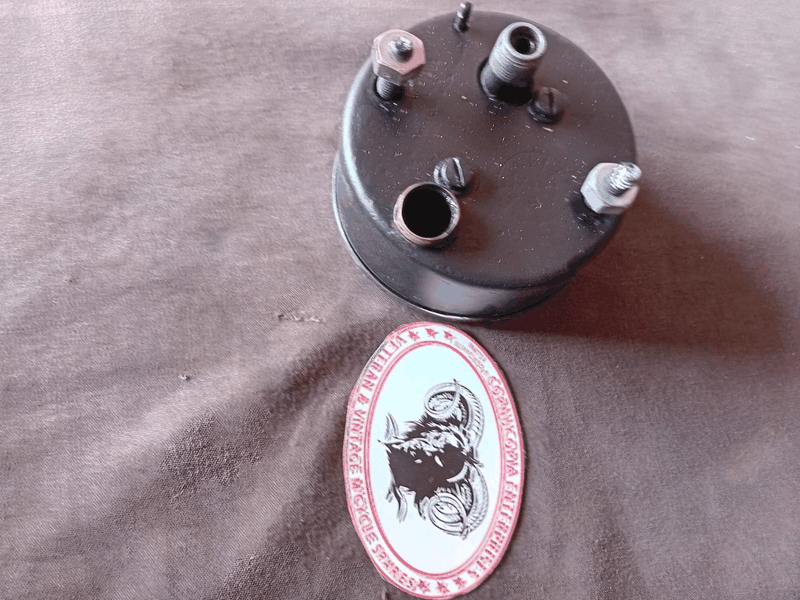

| Smiths Chrome Glass Rim ( Free Standing ) Smiths Rev Counter or Speedo ( Replica ) |
Norton Rear Brake Lever Arm Return Spring ( Replica ) fits 1936-56 16H, ES2, all Models Norton Part No. 9525 and A2/470< |

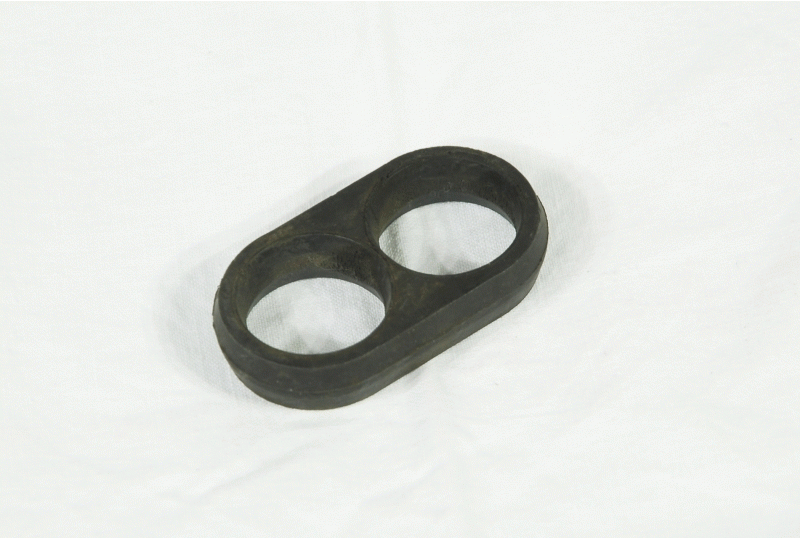

Norton Rocker Box, Push Rod Rubber Seal Genuine NOS fits 1940s ES2 500cc , Model 18 Models ( Limited Stocks ) |
Norton Front Mudguard Stay / Stand Replica unpainted fits 1936-56 all Girder Fork Models, also Tele Roadholder Fork Models Norton Part No. 9615 |
||
| 16,80 € | 25,00 € | 16,00 € | 48,00 € | ||
 |
 |
 |
 |
||
| Norton Prop Stand Foot Pin Bolt Genuine NOS Size 1.3/16 X 5/16 ( many Applications on W.D. Nortons ) Norton Part No 3766 |

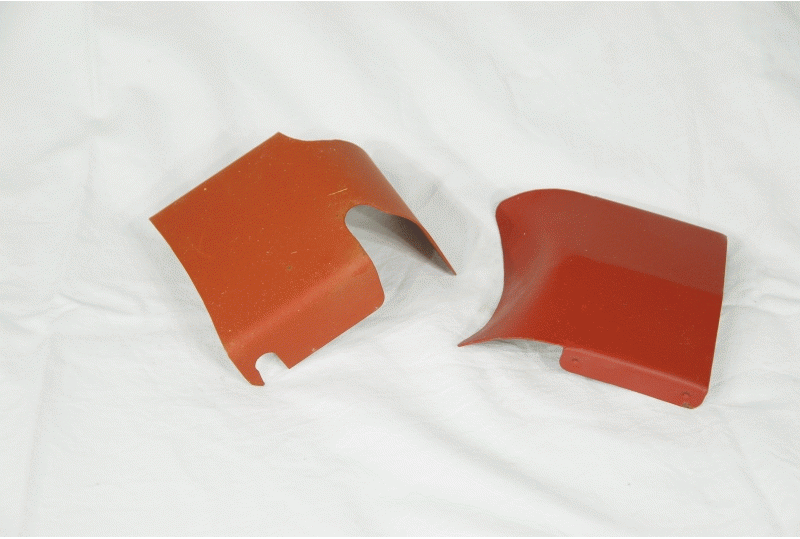

Norton ( 1 ) Slimline Front Engine Plate Cover Replica ( 2 ) Slimline Top Rear Engine Plate Cover Replica fits Norton Models 88/99 Featherbed Frame Models ( 1 ) Norton Part No. 20999 ( 2 ) Norton Part No. 21031 |
Norton Exhaust Pipe Front Bolt ( 7/16 in Diam x 20 Threads Per Inch ) Genuine NOS Norton Part No. 3756 | Norton Exhaust Pipe attachment Rear Bolt ( 3/8 in x 26 Threads Per Inch ) Genuine NOS Norton Part No. 9243 | ||
| each 5,00 € | ( 1 ) 27,20 € ( 2 ) 22,00 € |
Sold 16,00 € |
Sold 16,50 € |
||
 |
 |
 |
 |
||

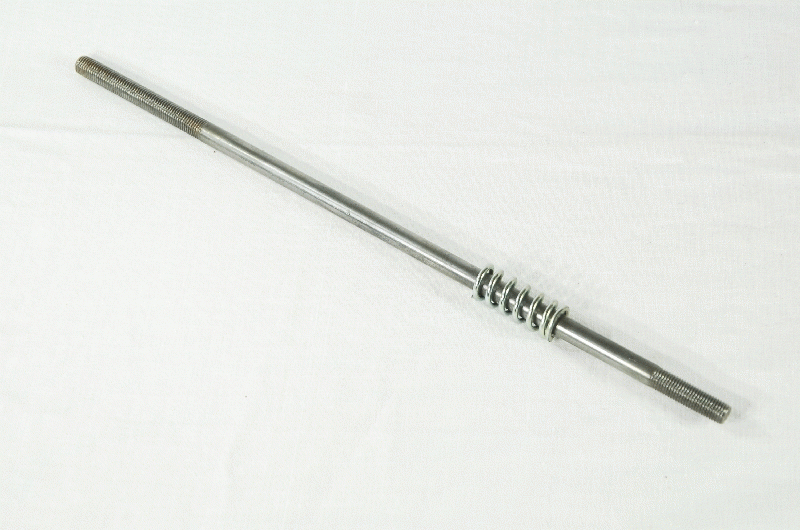

| Norton Steering Damper Adjusting Rod B2/203 + Damper Adjusting Spring B2/202 Replica fits all Norton Long Roadholder Forks |
Norton Rear Number Plate Replica unpainted fits 1930s onwards all Single Models Norton Part No. A2/532 |
Norton Footrest Tube Left Hand Genuine NOS Norton Part No. 3831 |
Norton Steering Head Bearing Set ( Four Bearings inc Ball bearings ) Replica British Made ( only sold as a set ) each one Norton Part No. 9258 Top Clip Ball Race Norton Part No. 9256 Steering Crown and Column Ball Race Norton Part No. 9579 Frame Head Race Top Norton Part No. 9580 Frame Head Race Bottom | ||
| 12,00 € | 60,00 € | 60,00 € | 120,00 € | ||
 |
 |
 |
 |
||
| Norton Primary Chaincase Inspection Disc. Genuine NOS fits all Models Norton Part No. 9542 |
Norton Air Filter Replica includes 3 Filters fits Amal 276 Carbs complete Air Filter will also fit Belgium Motorcycles Sarolea, & Gillet, fitted with Amal Carbs. |
Norton Filters for Air Filter Replica includes 3 Filters fits Amal 276 Carbs ( 1 ) Filters Stainless with Outside Ring ( 2 ) Filters Stainless without Ring will also fit Belgium Motorcycles Sarolea, & Gillet, fitted with Amal Carbs. |
Norton Wire Clip for Air Filter Replica fits Amal 276 Carbs will also fit Belgium Motorcycles Sarolea, & Gillet, fitted with Amal Carbs. |
||
| 16,00 € | 45,00 € | ( 1 ) each 7,00 € ( 2 ) each 2,00 € |
9,00 € | ||
 |
 |
 |
 |
||
| Norton Riders Footrest Replica Spares ( 1 ) Metal Footrest Pad Holder Norton Part No. 9559 or A2 /509 ( 2 ) Serrated Hanger Spindel 7/16 Dia, x 3/8 26 TPI Norton Part No. 9564 or A2/514 ( 3 ) Spindel Dome Nut 3/8 26 TPI Norton Part No. 9565 or A2/51 ( 4 ) Footrest Rubber securing Bolt and nut 3/16 Dia Norton Part No. 9557 or A2/508 ( 5 ) Footrest Rubbers also in Stock. ( not made in India , correct Shape ) fits all 1936-58 Norton Singles, Twins |
Norton Riders Footrest Rubbers Replica with Script or Plain ( no Script ) Please note, the Foot Rest Rubber, Frame + Fixing Spindel can be used on many 1920s 30s Motorcycles. Same size ! |
Norton Rear Brake Arm Spring Replica fits all Alloy full width Hubs Norton Part No. H12/470 |
Norton Replica Knee Rubbers (With Steel Insert) Not made in India. Fits 16H , ES2 Etc. Fits Ridgid + Plunger Models |
||
|
( 1 ) each 16,00 € ( 2 ) each 6,00 € ( 3 ) each 2,00 € ( 4 ) each 4,50 € ( Four Needed ) ( 5 ) Pair 35,00 € |
Pair 24,00 € | 12,00 € | Pair 52,00 € | ||
 |
 |
 |
 |
||
| Gearbox Main Axel Free Pinion 9676 Gear (BUSH) GENUINE NORTON NOS Gear Bush to Fit 9676 Gear |
Norton Dolls Head Gearbox Control Cover Pt Nr 3621 NOS. Fits 16H, B.Four, ES2 + International Models | Amal Pair, Genuine (R. Hand & L. Hand) One inch Dia Levers. (Used) For Restoration. Includes Mag & Air Levers. Fitted to Various 1930s Machines (Please Note also stocked the Special Stepped fixing Screws for the Clamps, Replica.) |
Amal Left hand 7/8 = 22mm Dia, Clutch Lever Assy, (For Restoration) Fitted with Amal R. Hand Air Lever! Fitted to various 1930s Machines |
||
| 12,00 € | 60,00 € | Pair 150,00 € | Sold 75,00 € |
||
 |
 |
 |
 |
||
| Norton Girder Fork Top Links. Genuine Norton NOS Pt No 3192 (Left Hand Side) |
Genuine Hoffman Brass cage M117L Roller Bearing, 40mm x 17mm x12mm. For Norton Dolls Head Gearbox Pt Nr 9668 +Upright, & Laydown Norton Gearbox. From 1930s to 1950s 16H, Big four, ES2, Inter + Mod 7 Dommie Twins. Fits on Mainshaft. |
Norton Layshaft Ball Bearing, ( British Made) Pt Nr 9667. Fits 16H, ES2 B. Four, Inter, etc. ( For end outer Cover) 40mm x 17mm x 12mm. Fits Dolls Head, Upright, & Laydown Norto Gearbox | Norton Mainshaft, Genuine. Pt Nr 3319 Good Condition, Little Wear. Fits Dolls Head, Upright, Laydown G. Box. GENUINE NORTON MAINSHAFTS NOS 3319 (New stocks just delivered) |
||
| 120,00 €, Used 80,00 € | 70,00 € | 30,00 € | 180,00 € | ||
 |
 |
 |
 |
||
| Genuine Norton Gearbox Cover (Used) Pt Nr 3592, Complete with Pawl Carrier Pt Nr 3633, + all Fittings. Gear Change Shaft Spline good. + Pt Nr 3621 Control Cover, K. Start Shaft Bush. For Restoration. |
Norton battery carrier front strap. Polished stainless steel. REPLICA. Fits Norton ES2 plunger frame and swinging arm Dominator Twins. |
NORTON CLUTCH DRUM (GENUINE) Pt Nr 3337 (Less Friction inserts) Fits most Pre 1955 Singles & Twins |
GENUINE NORTON NOS. GEAR BOX MAIL SHAFT, Pt Nr 3319 Shafts have been bead blasted, Showing slight (Rust Pit Marks) Fitted to Dolls Head & Upright G. Boxes. | ||
| 210,00 € | 40,00 € | 70,00 € | 170.00 € | ||
 |
 |
||||
| NORTON COMPLETE CLUTCH, Genuine NORTON (used) in PERFECT Condition, Clutch Plates (Friction) Need Replacing. (Some are good) Bronze Plating on Drum, Year approx 1944. Will fit all 350cc, 500cc, 600cc, singles and Twins 1935-1955 | NORTON DURAL ALLY FRONT OR REAR WHEEL AXLE NUTS, 20 TPI Fits 500cc singles, Twins, 500cc 600cc 750cc MODELS UP TO 1969 NOT COMMANDO |
||||
| 550.00 € | Each 8.50 € | ||||
| Electric / Elektrik Top Menue |
|||||
 |
 |
 |
 |
||
| Norton Genuine Lucas Points Assy ( NOS ) fits all Nortons fitted with MSL1 Magneto Norton 1936 350cc, 490cc and 596cc Lucas Part No. 470533 Lucas Part No. 470542 Also fitted to the following Motorcycles fitted with MSL1 Magneto 1936 BSA Y13 V-Twin 1936 BSA 498cc 1936 Norton 350cc, 490cc and 596cc 1936-39 Ariel 600cc 1936-39,1946-48 Ariel Square Fours 1936 Brough Superior SS100 V-Twin 1947-50 Douglas 350cc Twin 1936 Royal Enfield 350ccSV and 570cc SV 1938 Royal Enfield 600cc OHV Twin 1936 O.K.Supream Mag Dyno Models 1937-48 Scott Twin Cylinder 1946-47 Vincent HRD V. Twin 1948 Zenith V.Twin |
Lucas Dummy Battery Case ( With King of the Road Logo ) Replica British Made ( Customer supplies and fits own Batery inside case ) fits most British Models 4 3/4 Inch x 3 5/8 In x 6 1/4 Inch ( High ) |
Lucas Switch Knob ( Handle ) Genuine fits Lucas Head Lamp Switch Pt No U39, 31340 A fits 1936-57 all 6 / 7 Inch Lucas H.Lamps Lucas Part No. 351567 |
Lucas MT110 Rear Lamp Replica ( NOT MADE IN INDIA, A Cornucopia Product ) |
||
| 70,00 € | 55,00 € | 9,00 € | 128,00 € | ||
 |
 |
||||
| Norton / BSA / Lucas Contact ( Points ) Set Genuine Lucas fits late 1956-60 BSA Singles B31-33, Norton 350cc 500cc Mod 50 / ES2 fitted with 18D1 Distributor Part No. 425219 |
BSA / Norton / Triumph / Lucas Contact ( Points ) Set Genuine Lucas fits 1963-67 BSA B40, A50 - A 65 Twins also Triumph T120, Norton Atlas Twins Part No. 54419827 |
||||
| 20,00 € | 16,00 € | ||||
