Triumph
Singles OHV
3HW - T90
Spares / Triumph Ersatzteile
All Parts + Post/Packing + (19%) VAT
Payment with C.Card (+6%)
or PayPal (+ our Charge)
or Bank Transfer


click pictures to enlarge

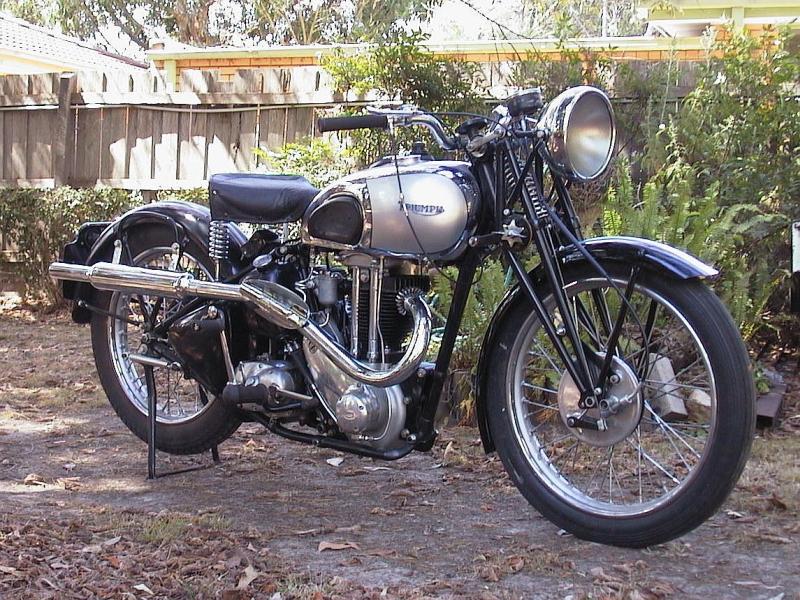

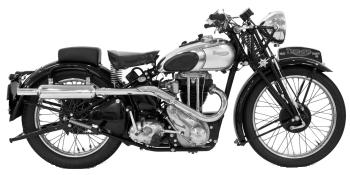

Triumph 3HW 1942 Triumph T90 1937
click
Valves / Ventile Engine / Motor Clutch , Gearbox / Kupplung , Getriebe Wheels / Räder Fork / Gabel Frame / Rahmen Sundries / Verschiedenes Electric / Elektrik
  Valves / Ventile
Top   Menue

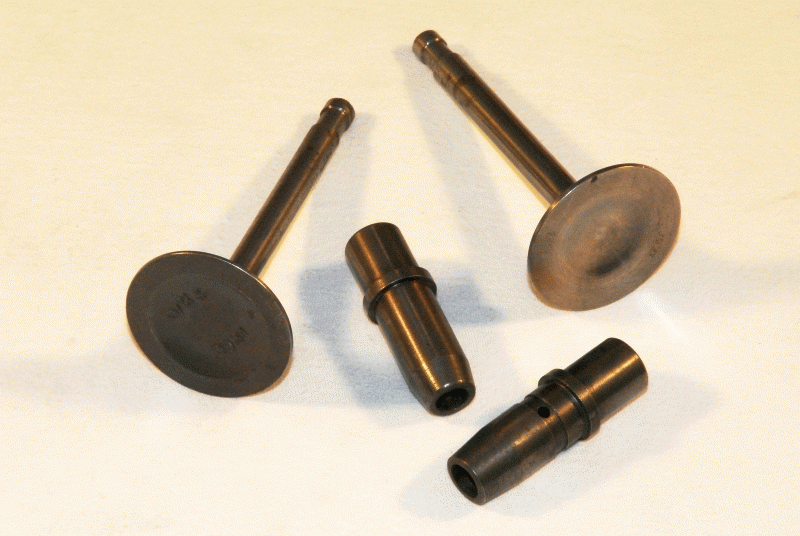

Triumph OHV
Inlet and Ex Valves + Guides
Genuine NOS
Britsh Made ( James )
fits 1937-40 Tiger 90, 500cc OHV Singles
( 1 ) Exhaust Valve
( 2 ) Inlet Valve
( 3 ) Guide
Triumph 3HW

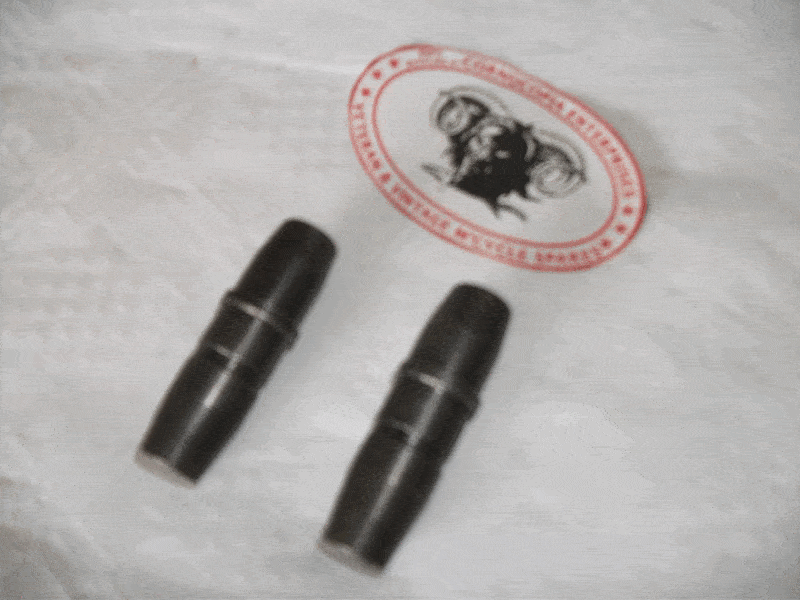

Cam Follower, Tappet
Genuine Triumph NOS
( possible some minor storage marks )
Triumph Part No. E. 2104

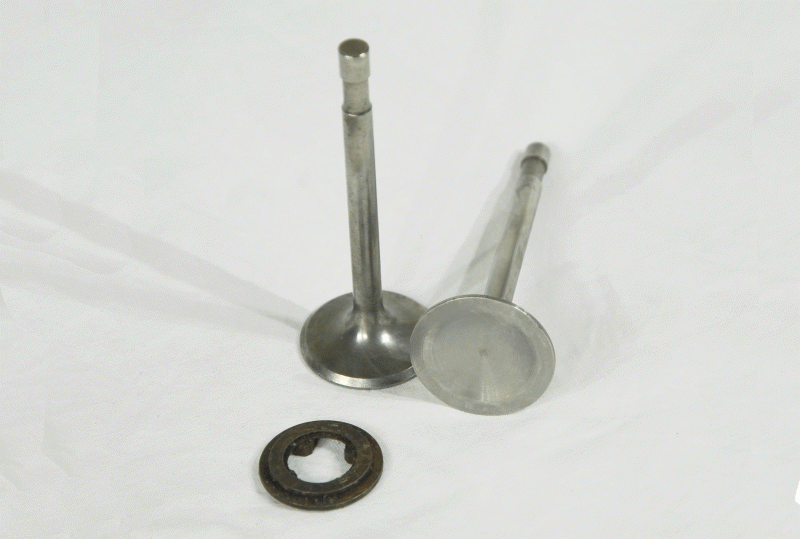

Triumph 3HW
( 1 ) Valves James Exhaust J.3940 and Inlet J.3939
British Made NOS from the 1950s
fits 3HW 1940-45
Triumph Part No. EX E.2115, IN E.2116
( 2 ) Exhaust Valve Coller / Cup for Exhaust Valve Spring
Genuine Triumph NOS
Triumph Part No. E.1108
Triumph OHV

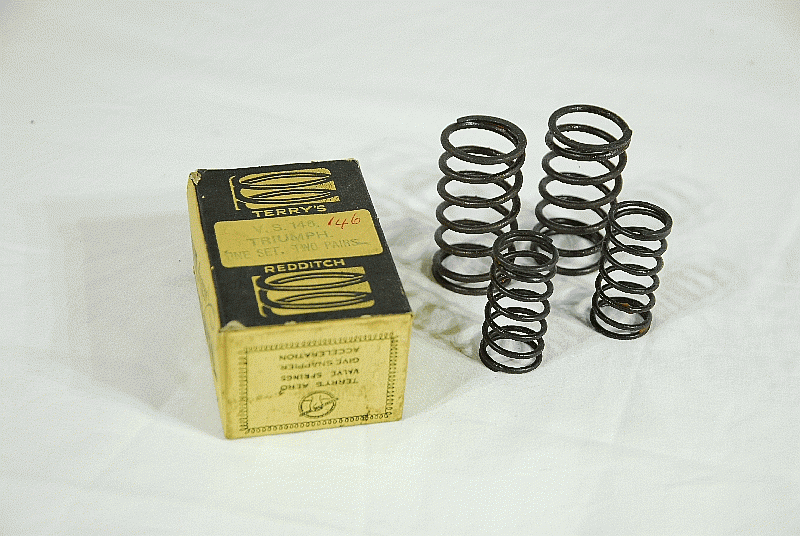

Terrys Valve Spring Set
Genuine
outer length 54mm, Dia 29mm
inner length 43mm, Dia 21mm
fits 1939-38 150cc and 250cc Models 2/1, 2H, 2HC, T70
Terrys Part No. VS146
( 1 ) 28,00 €
( 2 ) 25,00 €
( 3 ) each 14,00 €
each 30,00 € ( 1 ) each 20,00 €
( 2 ) 15,00 €
Set 40,00 €

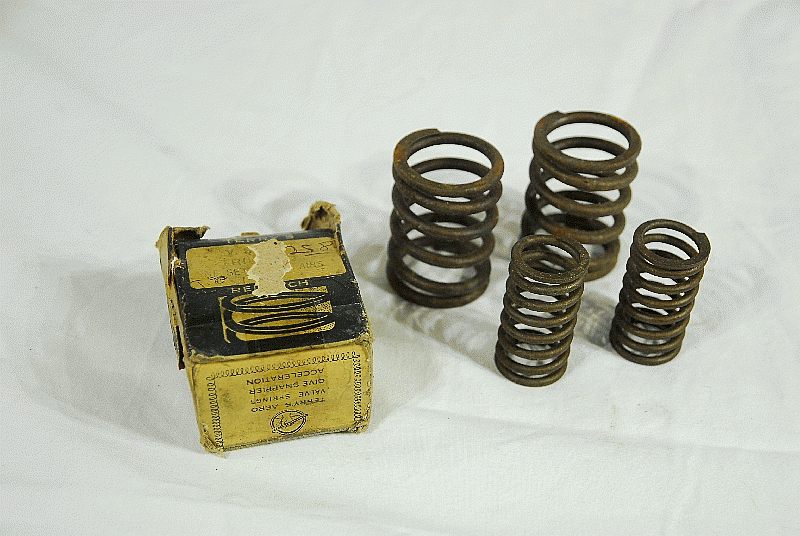

Triumph
Terrys Valve Spring Set
Genuine
Length ( Outer ) 54mm, Dia 40mm Length, ( Inner ) 47.5mm, Dia 26mm
Two Pairs
fits 1934-36 350cc OHV Models 3/2, 3/5, 500cc OHV 5/2, 5/4, 5/5, 5/10, Tiger 90
Terrys Part No. VS 258
Triumph

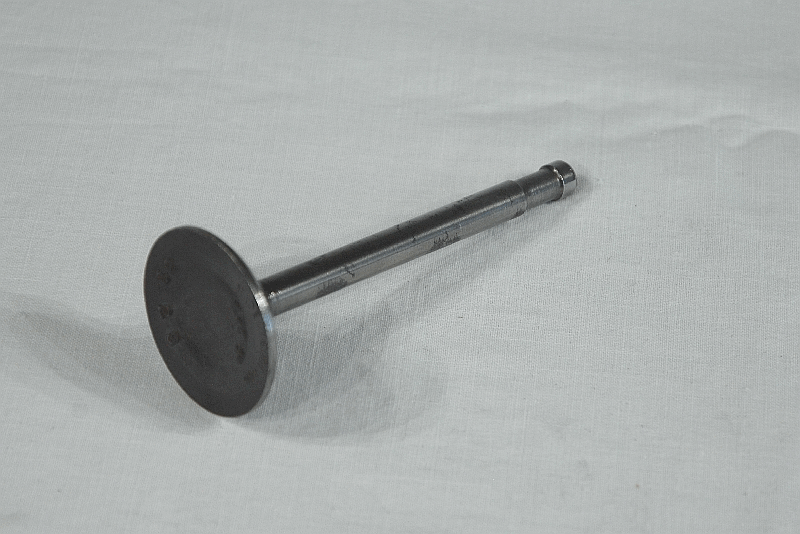

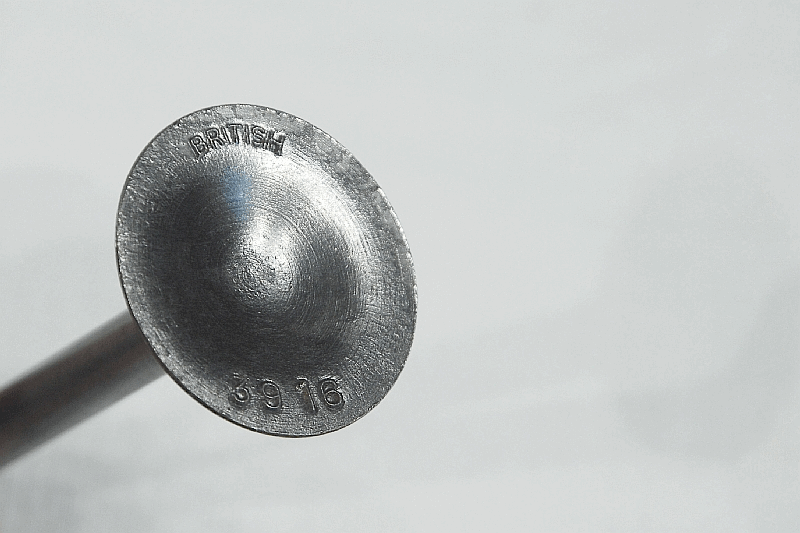

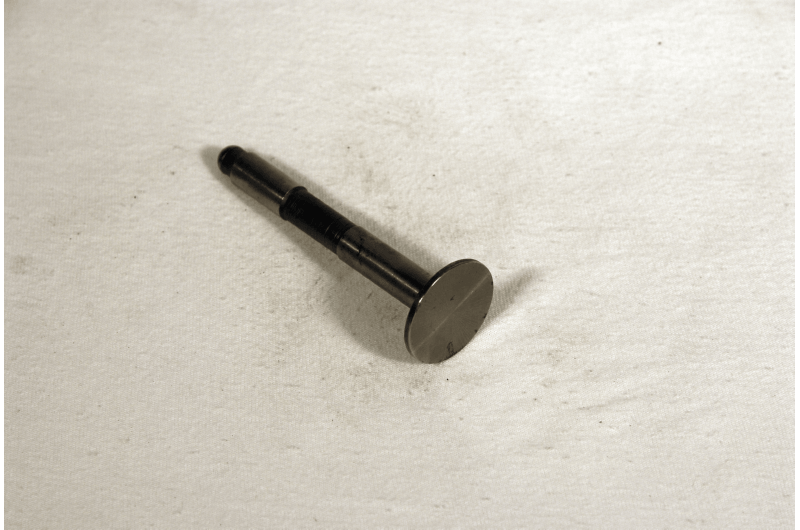

Inlet Valve
NOS British James
Head 1. 1/2 = 38,1mm
Length ( From under V.Seat) 3. 11/16 = 93,6mm
Shaft .310 = 7,87mm
fits 1936-40 OHV 350cc 3/2, 3H, T80
Triumph
Valve Inlet
NOS British James
Head 1. 11/32 = 34,1mm
Length ( from under V. Seat) 3. 5/32 = 79,6mm,
Shaft .309 = 7,85mm
fits 1935-36 250cc OHV 2 1/4, Mod L.2/1 ( Single Port )
Triumph

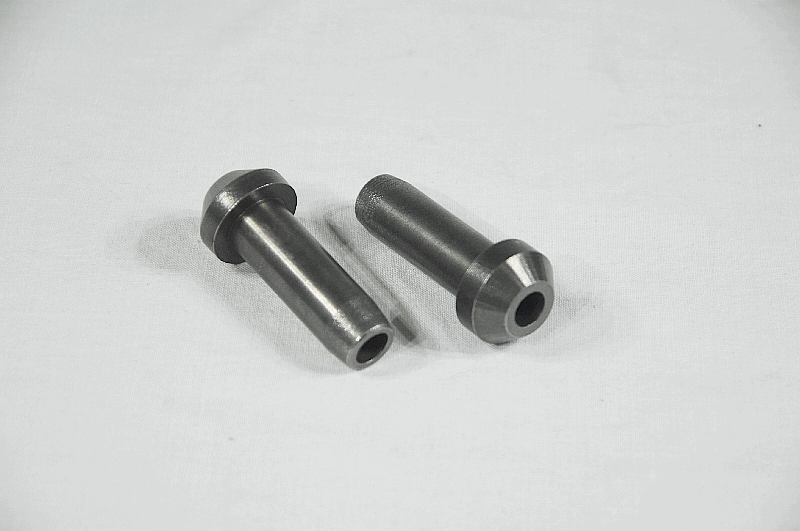

Valve Guide, Inlet & Exhaust
NOS British James
Length 2 Inch 3/16 = 55,1mm,
Bore 5/16 = 7,9mm,
Push fit in Head 9/16 = 14,3mm
fits 1934-36 V-Page 650cc Twin, also 1934-35 2/1 250cc OHV
Set 40,00 € each 15,00 € each 15,00 € each 10,00 €

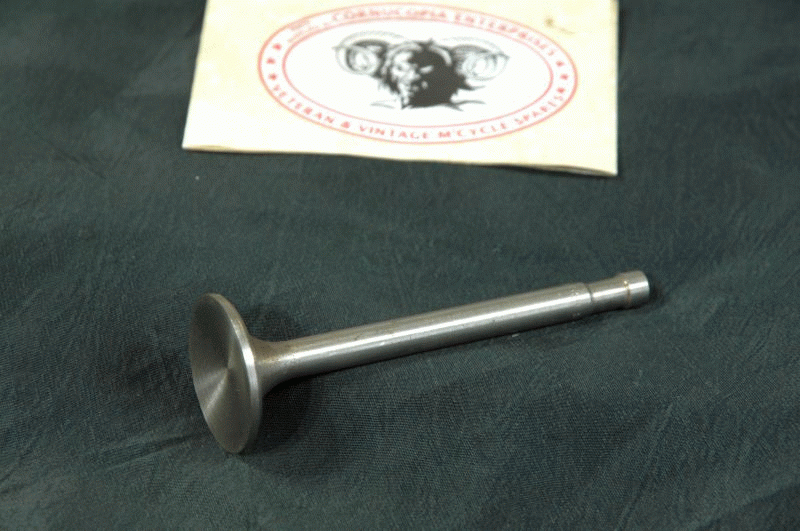

Triumph

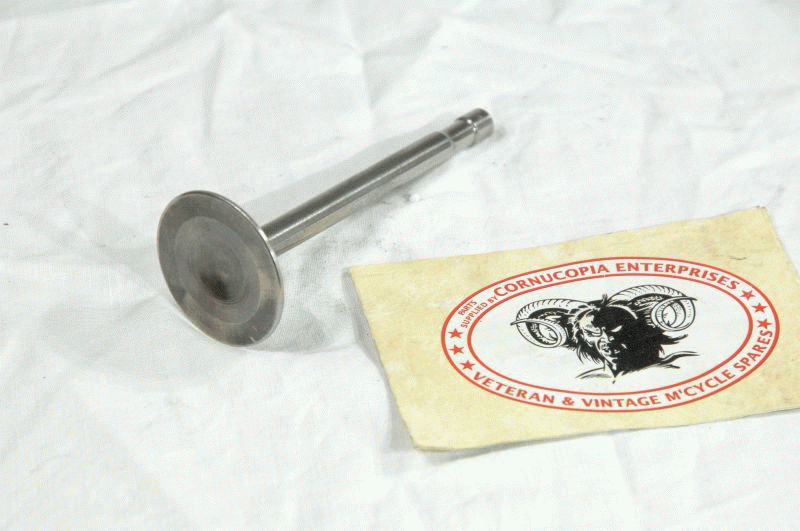

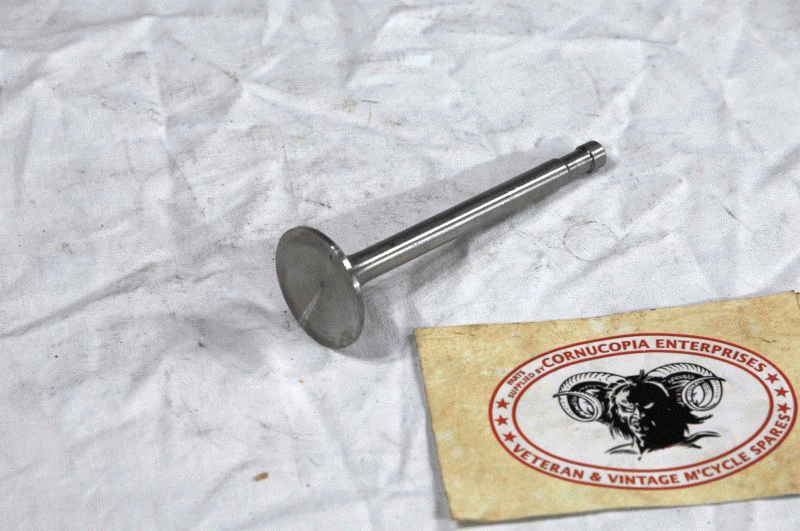

Exhaust Valve
British Made NOS from the 1960s
Head 32,5mm, Shaft 7,85mm, Length End to End 96,69mm
fits 1935-40 T70, 2/1, 2H, 2HC, 250cc OHV
Triumph Part No. E1107

16,00 €
 Engine / Motor
Top   Menue
;
Triumph

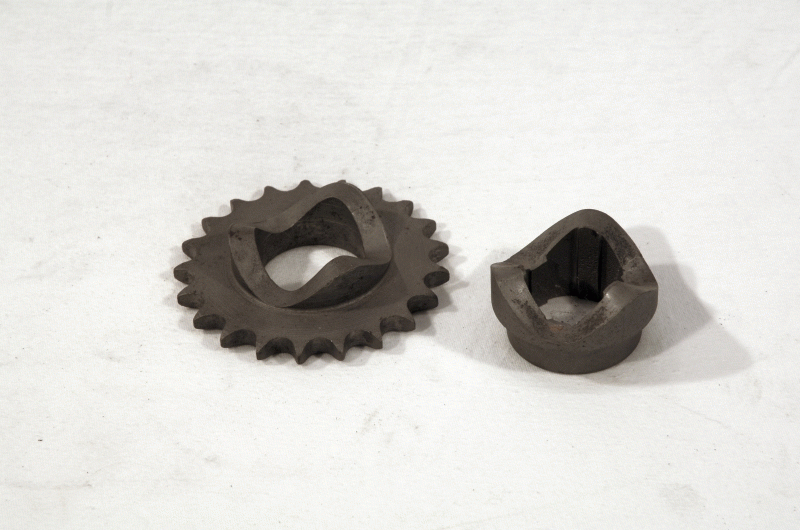

Engine Sprocket ( 3 Lobe Cam Type )
21 Teeth for Sidecar
Triumph Genuine NOS
fits 1937-40 T90, 5S, 6S
Triumph Part No. E4712D ( 1 )
Few good Used in Stock
20 Teeth ( 3 Lobe Cam Type )
fits 2H - T80
Triumph Part No. E471E ( 2 )
-

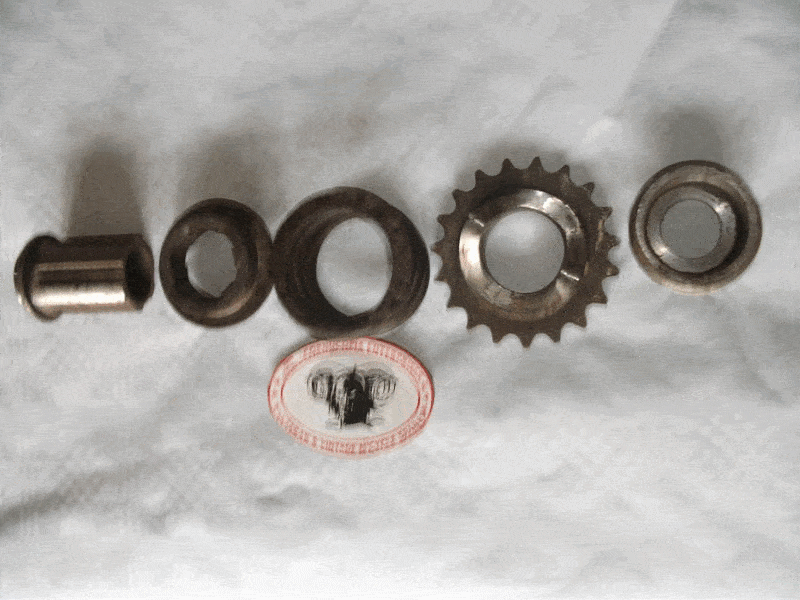

Good used Engine Shock Absorber Slider
fits 2H,3S, 3SE, 3H, T70, T80, T90, 5S, 6S
( 3 Lobe Cam Type )
Triumph Part No. E394 ( 3 )
Triumph

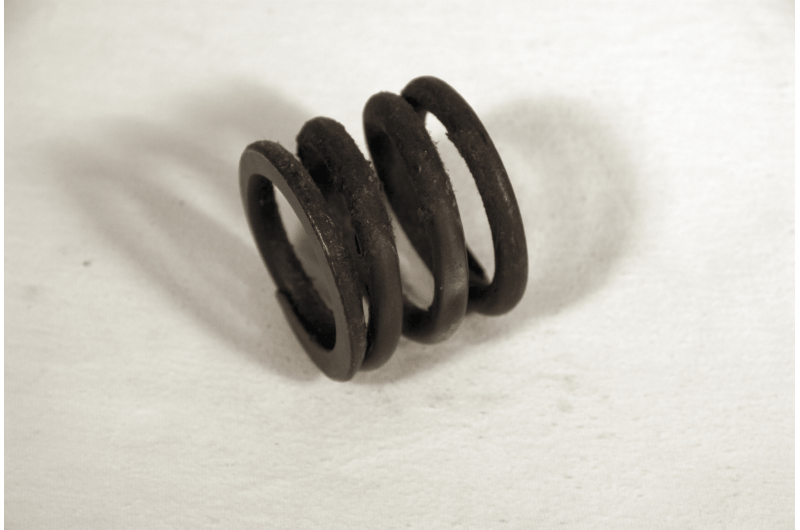

Crank Shaft Shock Absorber Slider Spring
Genuine Triumph ( NOS )
fits models
except 5H and 6S 1937-1940
5T and T100 models from 1946-53
Triumph Part No E.659
Triumph
Crank Shaft Shock Absorber Collar
Genuine Triumph ( NOS )
fits models 1937-1942
2H, 3S, 3SE, 5S, 5SE, 6S
3H, 5H, T70, T80
5T and T100 models from 1946-53
Triumph Part No E.396
Triumph

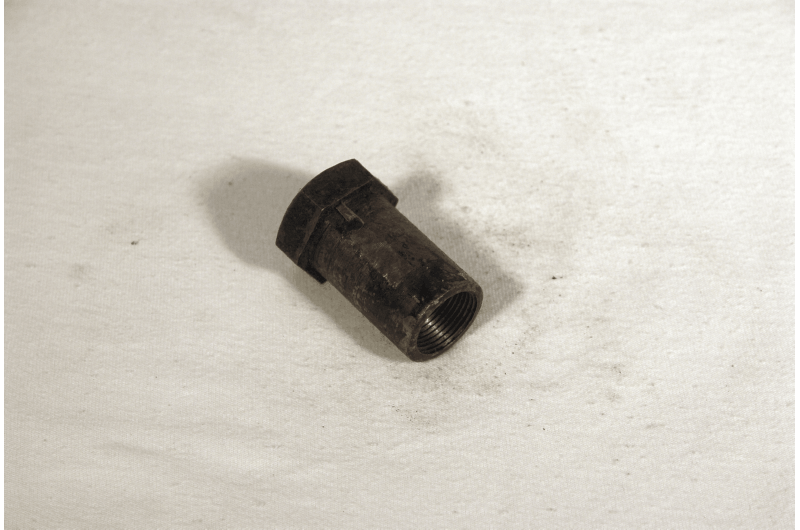

Crank Shaft Shock Absorber Nut
Genuine Triumph ( NOS )
fits models 1937-1942
2H, 3S, 3SE, 5S, 5SE, 6S
3H, 5H, T70, T80
5T and T100 models from 1946-53
Part No E. 509
( 1 ) 70,00 €
( 2 ) 40,00 €
( 3 ) 50,00 €
25,00 € 18,00 € 25,00 €

Triumph

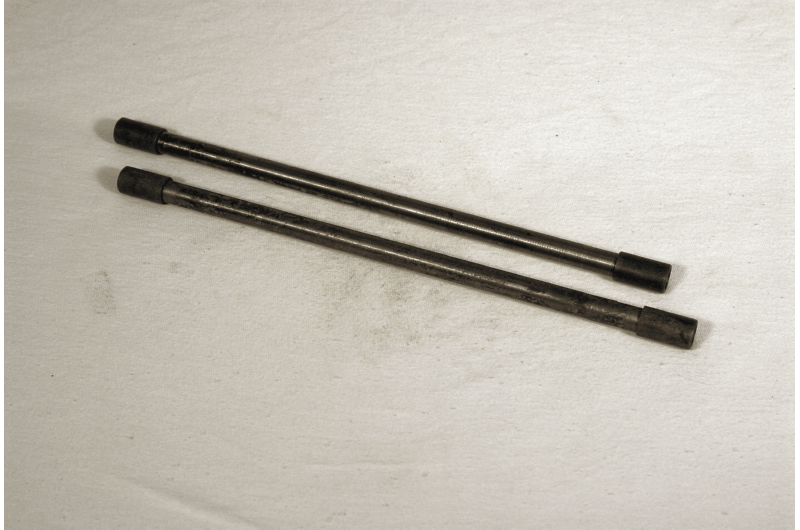

Valve Push Rods
Genuine Triumph ( NOS )
fits model 3HW
Triumph Part No E.2119

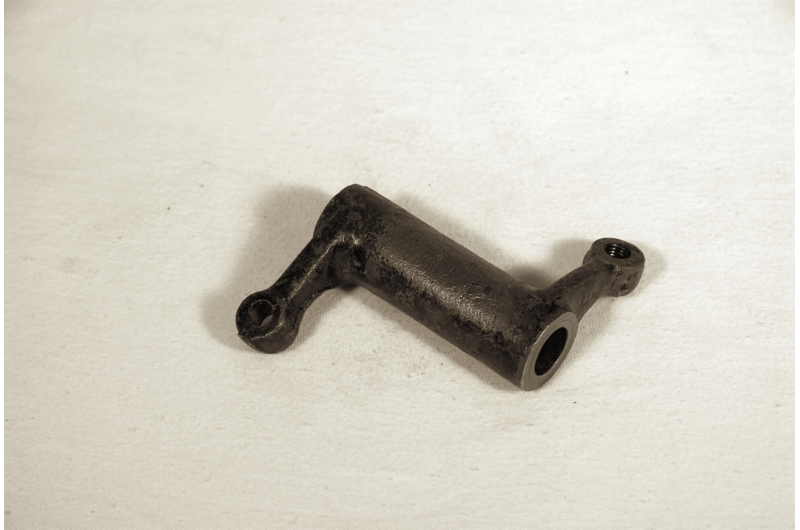

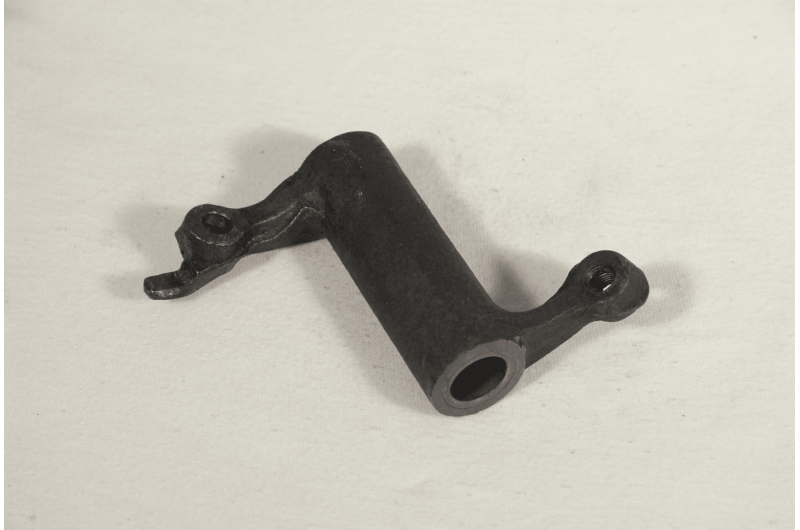

Triumph
Valve Rocker ( Inlet ) with bush
less adjuster and ball pin
Genuine Triumph ( NOS )
Triumph Part No E.2117
Triumph
Valve Rocker ( Exhaust ) with bush
less adjuster and ball pin
Genuine Triumph ( NOS )
Triumph Part No E.2118

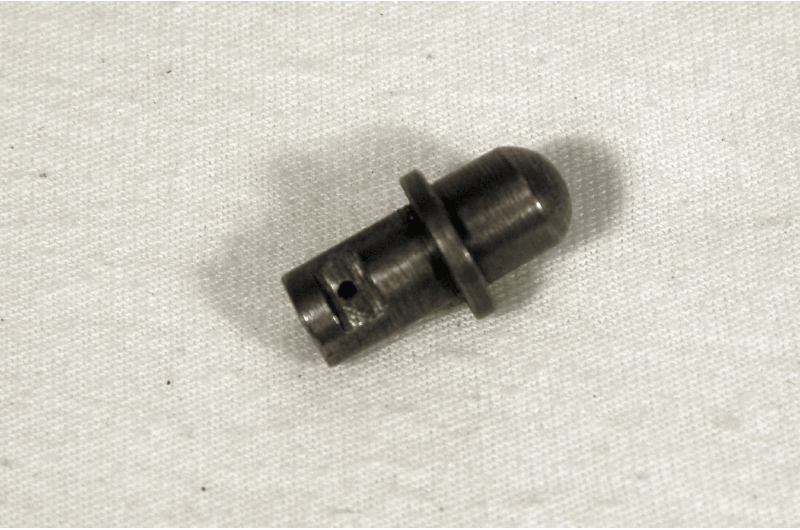

Triumph
Rocker Ball Pin ( Push Rod End )
Genuine Triumph ( NOS )
Fits models 1937-42
2H, 3H, T70, T80
Triump Part No E.949
Pair 75,00 € 60,00 € 60,00 € 15,00 €

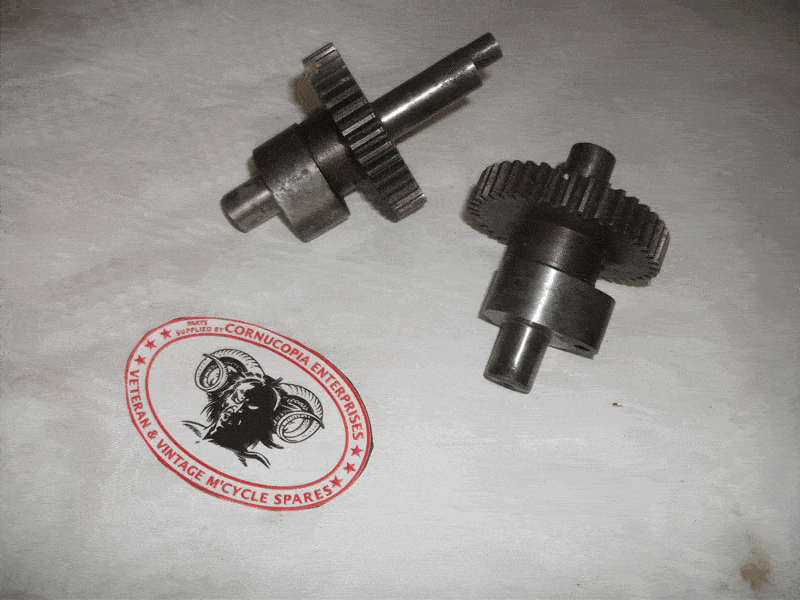

Triumph
Camshaft ( Cam Drive Wheel )
Genuine Triumph NOS
Triumph Part No. E.499
Triumph

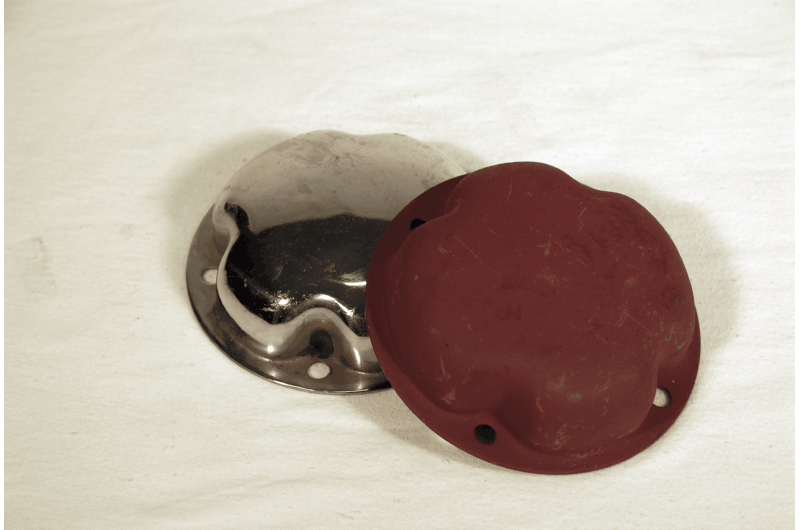

Oil Pump Cover, New Chrome
Genuine Triumph NOS
(Used possible in Stock )
Triumph Part No. E.485
Triumph 3HW

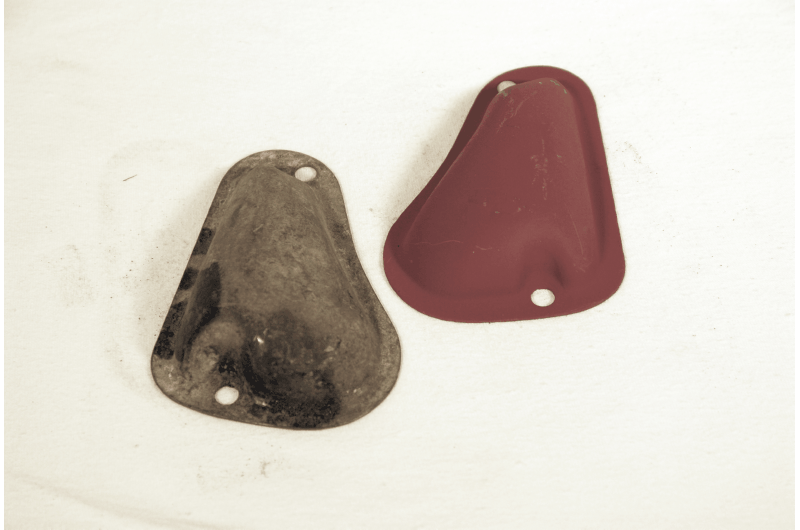

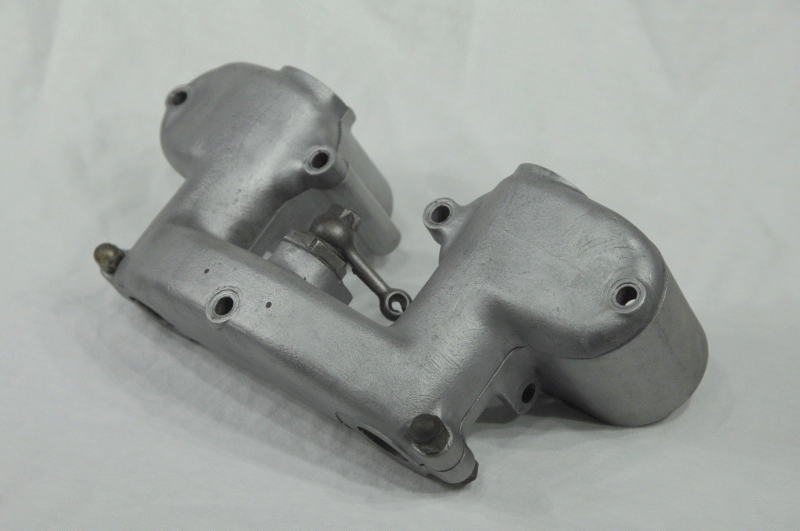

Triumph Rocker Covers Inlet and Exhaust
Genuine Triumph NOS
( Used possible in Stock )
Triumph Part No.
E.2101 ( Inlet )
E.2103 ( Exhaust )

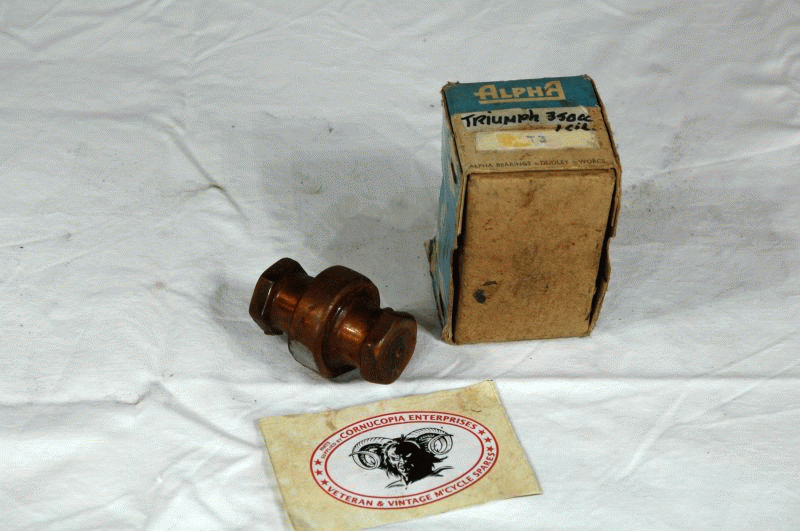

Triumph
Alpha Con Rod Bearing Assy
Genuine Alpha NOS ( British Made )
fits 1936-40 3H, 3HW, T80
1937-45 3HW, 3S
Code No T3
60,00 € New 60,00 €
Used 35,00-45,00 €
New each 40,00 €
Used each 30,00 €
220,00 €

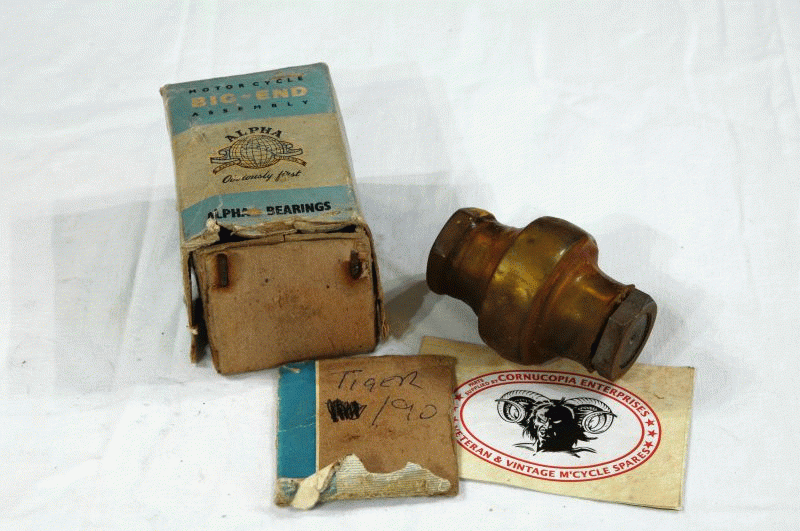

Triumph
Con Rod Bearing Assy
Genuine Alpha NOS ( British Made )
fits 1937-39 Triumph 500cc T90 & 600cc 6S Side Valve

250,00 €
  Clutch , Gearbox / Kupplung , Getriebe
Top   Menue

Triumph

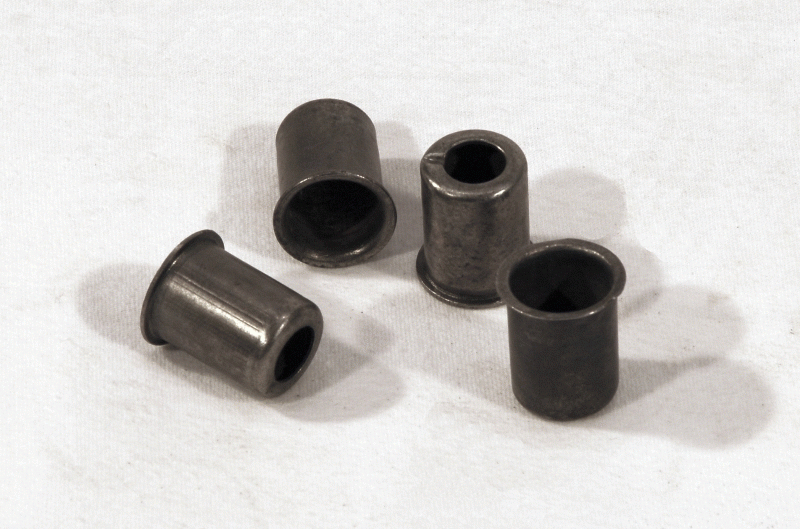

Clutch Spring Cups
( Replica )
fits 3HW, 3S
Set of Four
Part No. T45
Triumph
Clutch Hub
Genuine Triumph NOS
fits 1936-46 2H, 3H, 3HW, 5H, T70, T80, T90
Triumph Part No. T418

Set 20,00 € NOS 60,00 €
Used 40,00 €

  Fork / Gabel
Top   Menue
Triumph

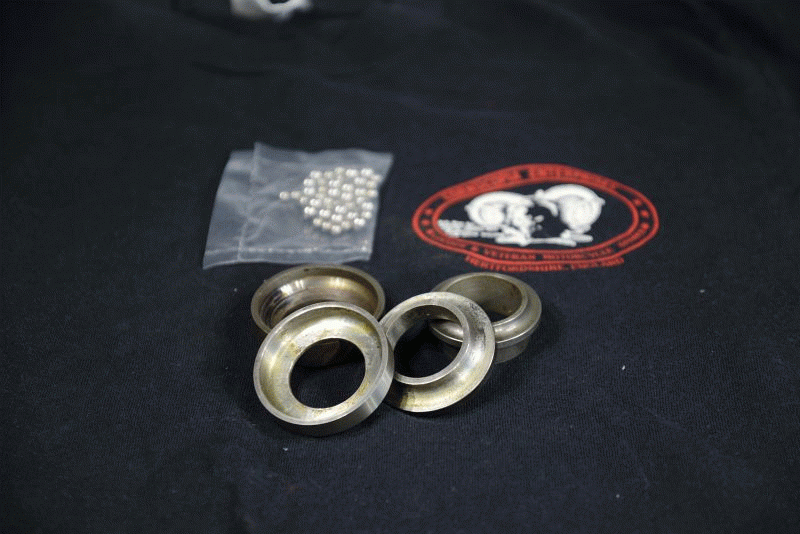

Set of Four Steering Head Bearings + Set Balls Bearings
( Replica )
fits 2H, 3S, 3SE, 3SW, 3HW, 5S, 5SE, T70, T80
also fits T70 - T80 etc.
(NOT MADE IN INDIA, A Cornucopia Product)
Triumph Part No.
Cone Fork Crown - XS8
Cone, Head Clip - XS9
Cup Head Clip and Fork Crown - XS10
Balls - S70-4

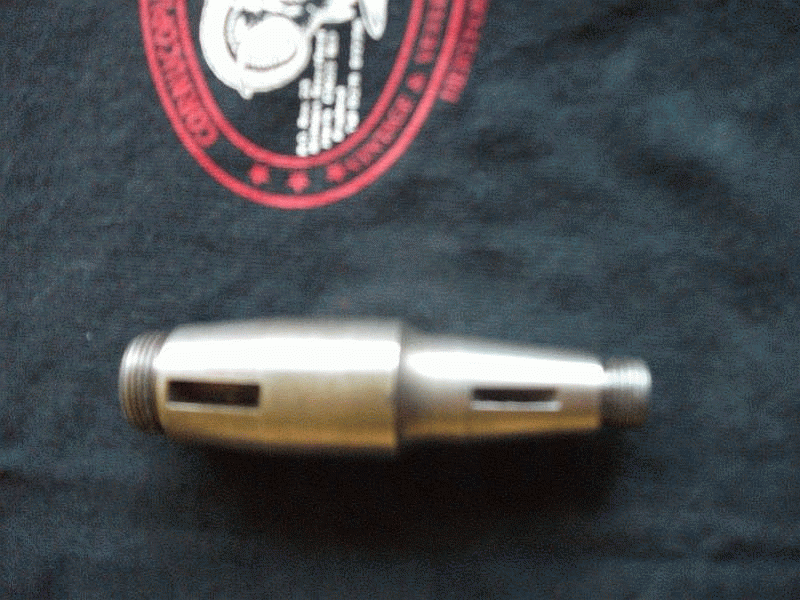

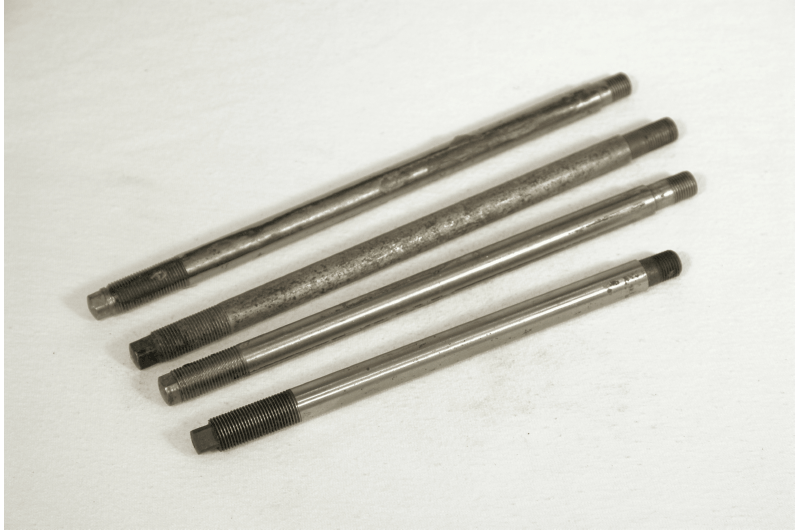

Triumph 3HW

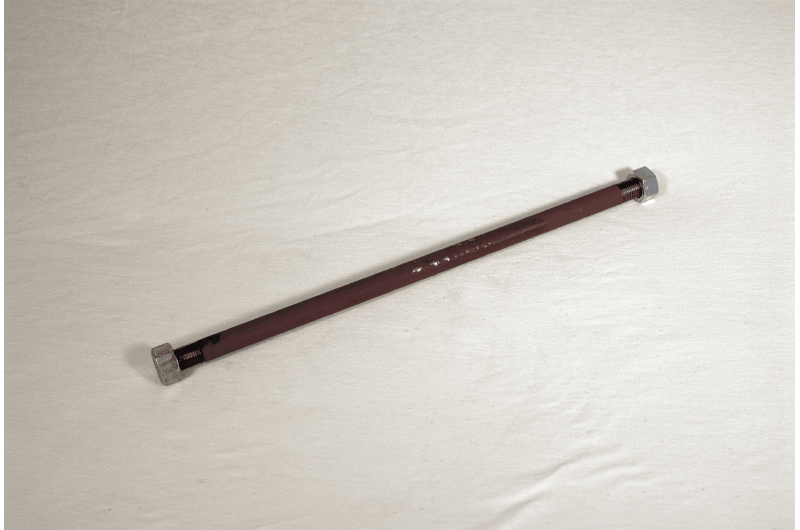

Girder Fork Spindles Fork
Genuine Triumph NOS
fits models 1941-45 3HW, 3SW
( give Length, Dia, Length of Threads, etc in mm please )
( NOS Limited Amount )
Triumph Part No.
E.1520 Top ( Two )
E.4182 Bottom Front ( One )
E.4183 Bottom Rear ( One )
Triumph

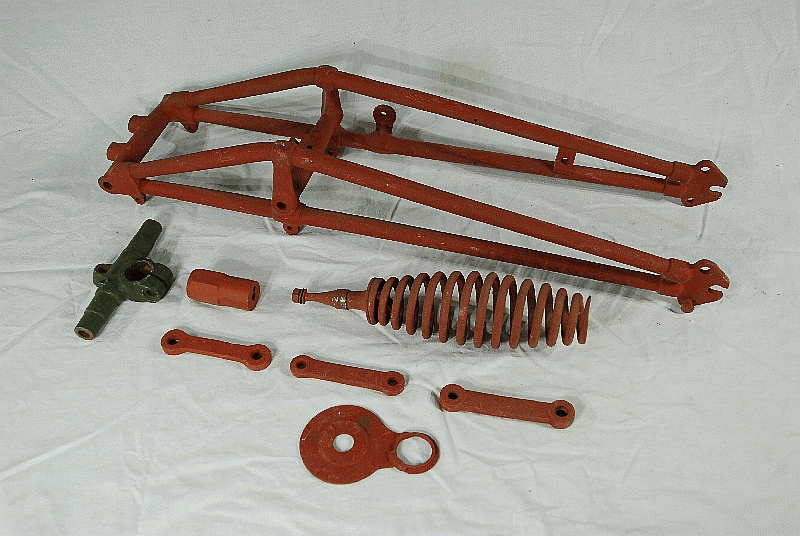

Girder Fork Parts
Genuine ( used )
Bead Blasted, Primer Coat
Main Frame, Spring, 3 Side Links, Clip,
Fork Head, Locknut, Fork Crown,
Plate Shock Absorber
fits 1941-45 Triumph 350cc
3HW OHV & 3S, 3SE SV

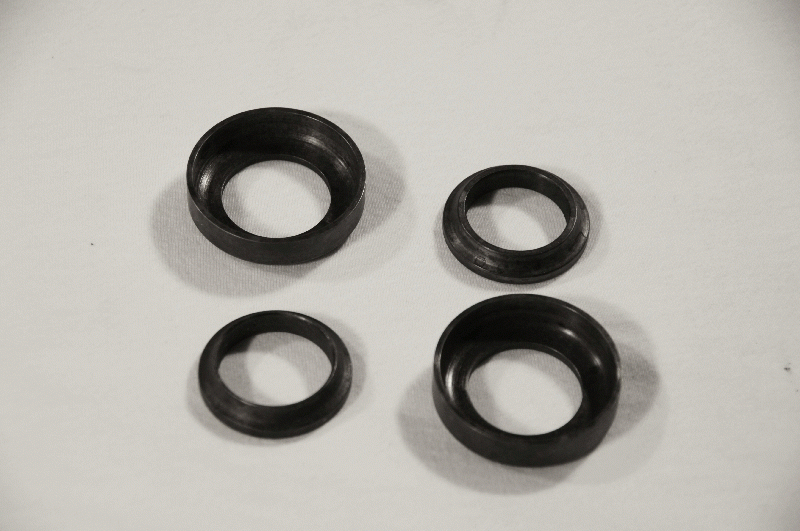

Triumph
Steering Head Bearing Set + Ball Bearings
Replica
Set of Four + Ball Bearings
fits 1937-40 Models 5/H, 6S, 5T, Speed Twin, T100
135,00 € each 37,50 €
Replica each 30,00 €
400,00 € Set 140,00 €
  Wheels / Räder
Top   Menue

Triumph

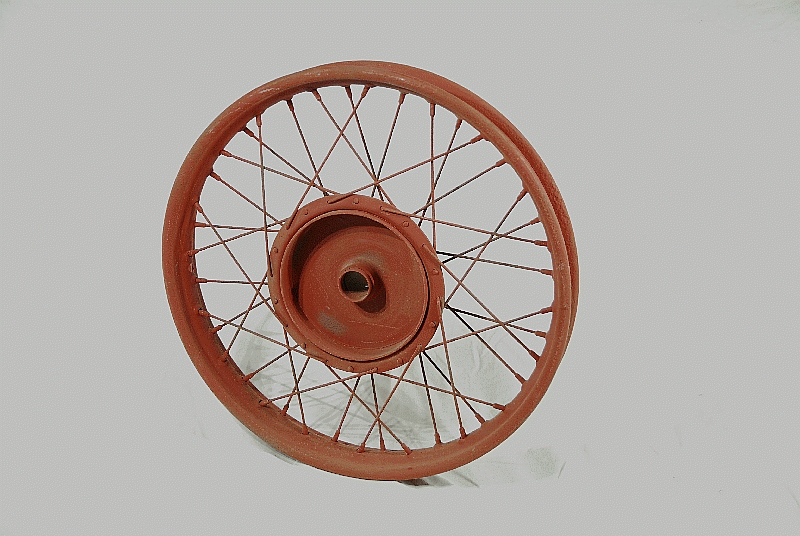

Front Wheel
Genuine ( used )
for Restoration.
many used Front Wheels in stock,
some with Spindels / Bearings / Speedo Gear.
Most need the Rims and Spoke replacing,
but not all !
Most bead blasted,
( all with good Drum Surface )
fits 1940-46 3HW, 3S, 3SE + other Models

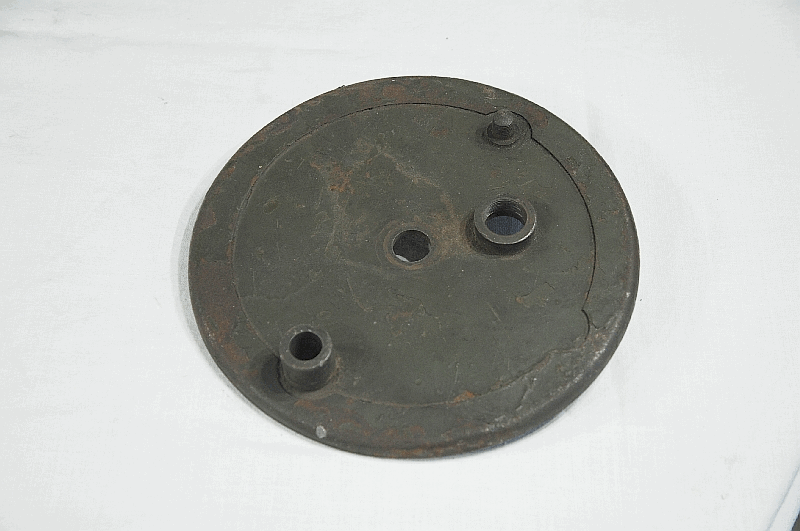

Triumph
Front Brake Plate
Genuine NOS
fits 1940-45 3HW, 3SE etc.
Triumph Part No. W327

250,00 € - 300,00 € 99,00 €
  Frame / Rahmen
Top   Menue

Triumph 3HW

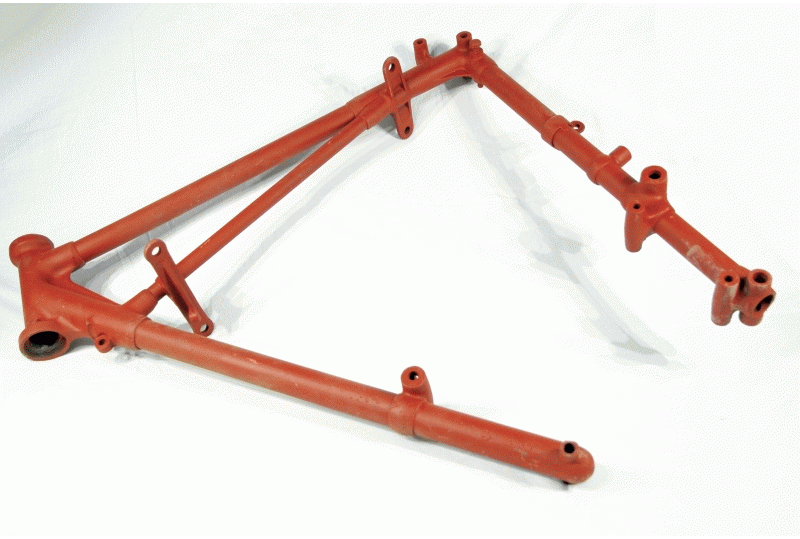

Front Frame Section
Genuine Triumph NOS
fits 1942-45 3HW 350cc OHV Models
Triumph Part No. F1631

300,00 €
used 200,00 €

  Sundries / Verschiedenes
Top   Menue
Triumph

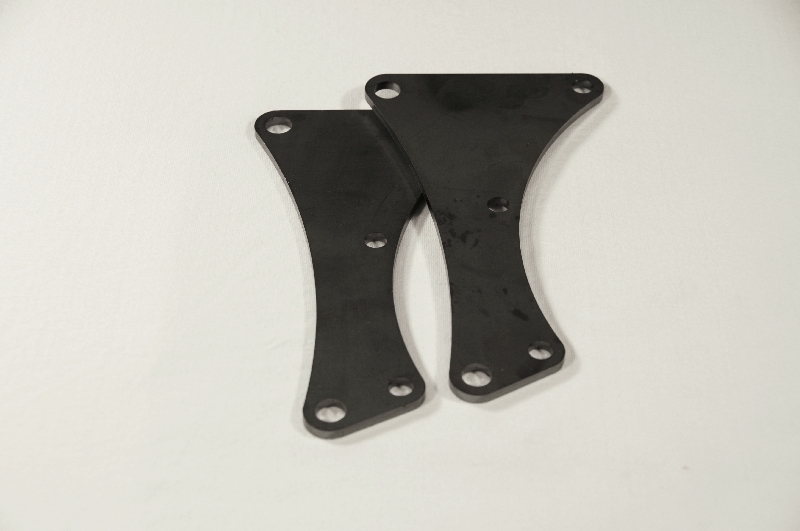

Front Engine Plates
( Replica ) unpainted
fits 3HW, 3S, 3SE
(NOT MADE IN INDIA, A Cornucopia Product)
Part No F. 1656
Triumph
Gear Box Mounting Clamp
( Replica ) unpainted
fits 1937-44 2H, 3S, 3SE, 3H, 3HW, T 70, T 80. T 90, 5 H, 6S
Part No. T. 278A
Triumph

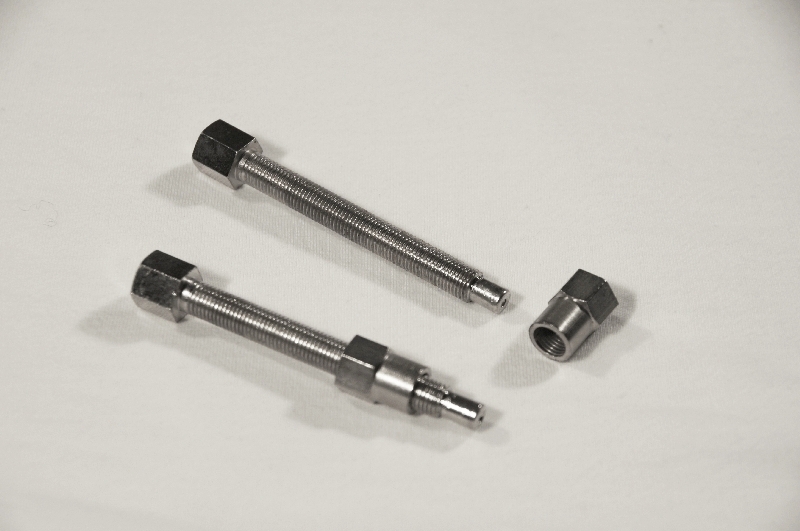

Rear Wheel Adjuster Bolts
with Lock Nut
fits Rigid 1937-53 3HW, 3S, 3SW, 5T, T100 etc.
Part No F.969
Part No F.1008

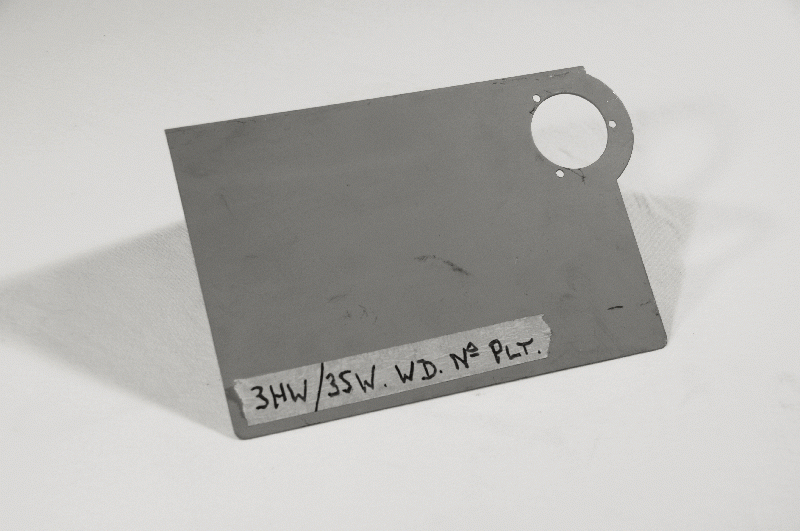

Triumph
War Department
Rear Number Plate
unpainted
fits 3HW / 3S / 3SW
Pair 26,00 € Pair 30,00 € Pair 35,00 € 46,00 €

Triumph

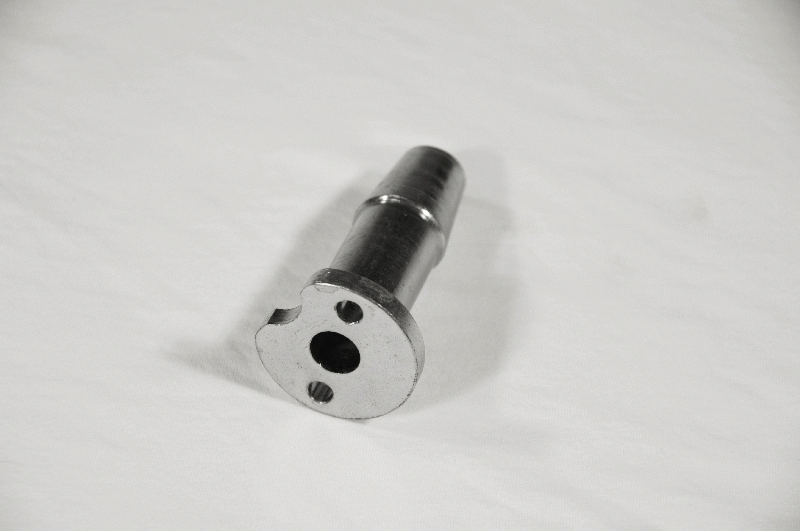

( Replica ) Footrest Stud
Tube for R/Hand Side Foot Rest (O/S)
fits 3HW, 3S, 3SW
Part No F.1736

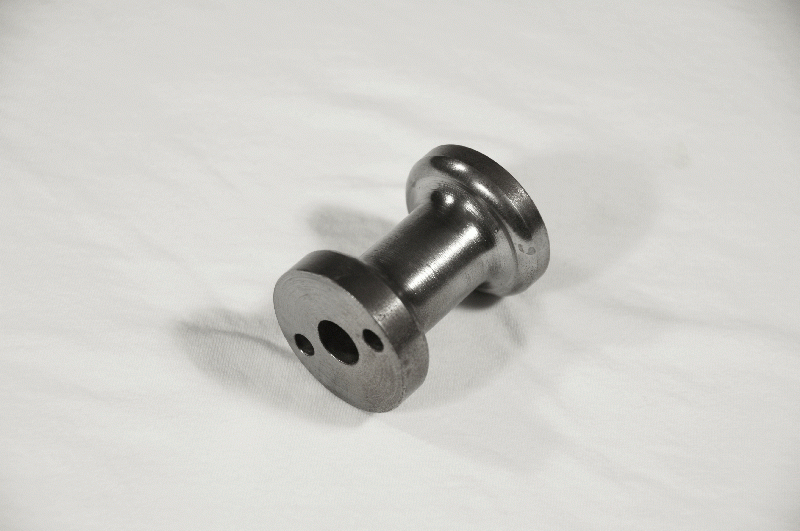

Triumph
( Replica ) Footrest Stud Distance Tube
fits 3HW, 3S, 3SW
Part No F.2327
Pillion Seat
Replica
Triumph
Triumph W.D. ( War Dept) Field Prop Stand
fits 3HW
( 1 ) Prop Stand Leg ( NOS )
Triumph Part No. F.1948SW
( 2 ) Swivel Lug ( Replica )
( fits between Leg and Frame )
Triumph Part No. F.1942SW
( 3 ) Spring Clip for Stand Leg ( 2 Parts ) ( Replica )
Triumph Part No. F.2183, F.2182
( 4 ) Swivel Lug Bolt + Nut ( Replica )
Triumph Part No. F.880, NX.299
48,00 € 48,00 € 60,00 € ( 1 ) 170,00 €
( 2 ) 45,00 €
( 3 ) 17,00 €
( 4 ) 5,00 €

Smiths Chrome Glass Rim
(Free Standing) Smiths Rev Counter or Speedo
( Replica )
Triumph

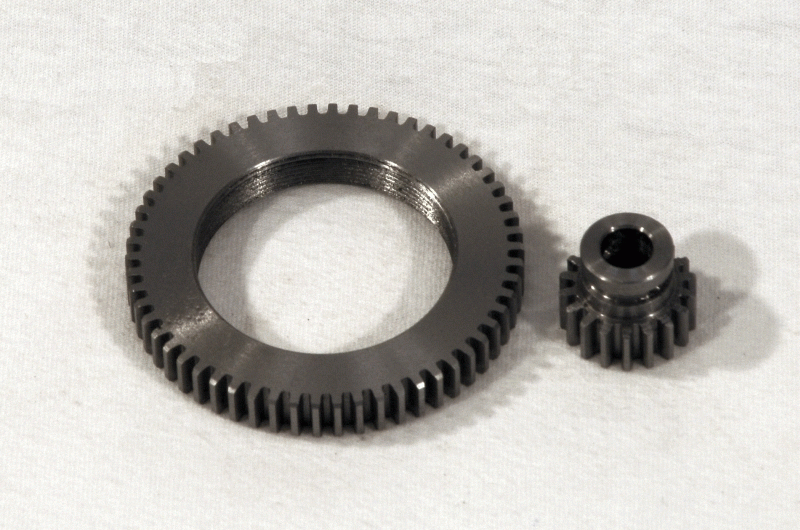

Front Hub Speedo Drive Gear +
Speedo Gearbox Drive Gear
fits 1940-46 3HW, 3S
1936-44 2H, 3S, 3SE, 3H,
T70, T80, 5S, 5SE
Triumph Hub Gear 58 Teeth
Part No. W347 ( 1 ) / ( NX177B ) ( 1 )
GearBox Pinion Gear 18 Teeth
for used 27" Tyres
Part No. WX211A ( 2 )
Gearbox Pinion Gear 19 Teeth
for used 26" Tyres
Part No. WX211 ( 3 )
- if possible give Internal and outer Dia of Gear in mm ( Two Types )
Triumph
Front Hub Speedo Drive Gear +
Speedo Gearbox Drive Gear
fits Pre War Speed Twin,
T100, 6S, T90
1937-42 2H, 3S, 3SE, 3H,
T70, T80, T90, 5S, 5SE
Triumph Hub Gear 58 Teeth
Part No. W347 ( 1 ) / ( NX177B ) ( 1 )
Gearbox Pinion Gear 19 Teeth
Part No. WX211 ( 2 )
- if possible give Internal and outer Dia of Gear in mm ( Two Types )

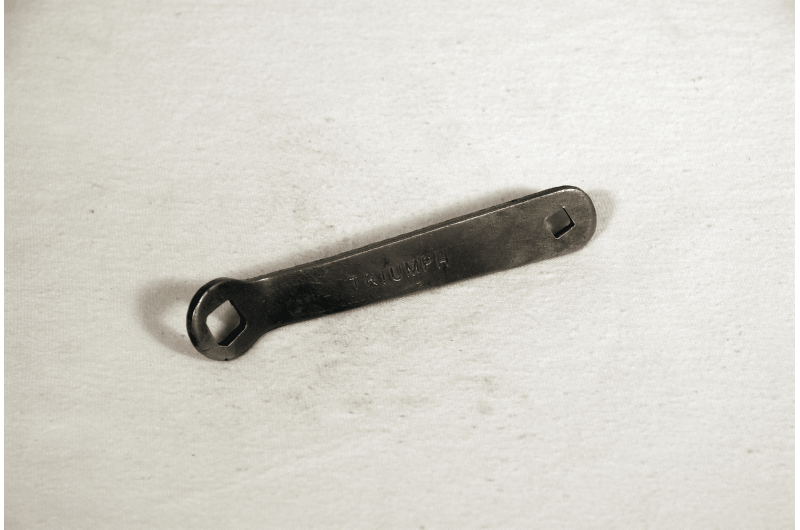

Triumph
Spanner, for tool kit
Genuine Triumph ( NOS )
Triumph Part No DA5
16,80 € ( 1 ) 75,00 €
( 2 ) 52,00 €
( 3 ) 52,00 €
( 1 ) 75,00 €
( 2 ) 52,00 €
15,00 €

Triumph

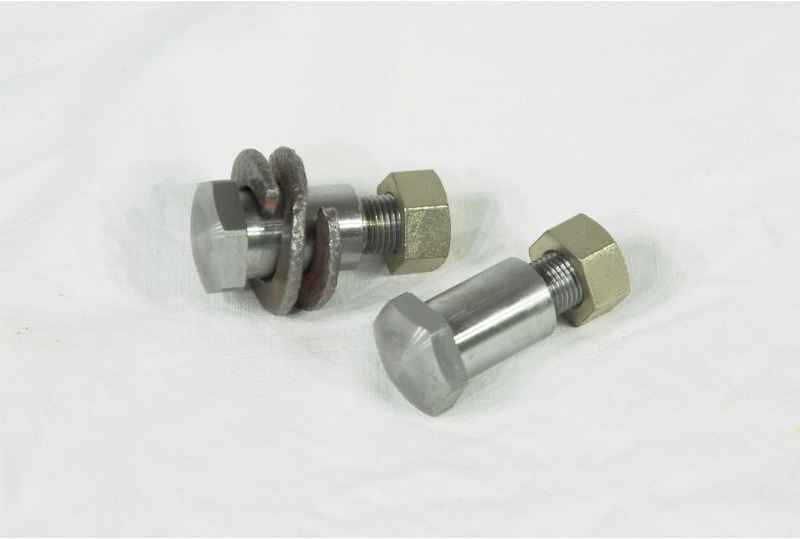

Footrest Bolt + Nuts
( Replica )
fits 3HW, 3SW, T80
Triumph Part No. E1092
Triumph
Rear Brake Rod Adjuster Knob
Genuine Triumph NOS
fits 2H, 3S, 3SE, 3H, 3HW, T 70, T 80. T 90, 5 H, 6S etc.
Triumph Part No. NS372
Triumph
Rigid Frame Rear Stand Bolts, Nuts and Washer
Replica
fits 1937-54 Models 2H, 3/5, 3/SE, 3/H, 5/S, 5/SE,
T70, T80, T.90, 5/H, 6/S, 5T, T100
( also fits 1934-36 Models 3/2, 5/1, 5/2, 5/3, 5/4, 5/5 )
( 1 ) Triumph Part No.Bolt F.977 + Nut 51.52
( 2 ) Triumph Part No. Washer F.976

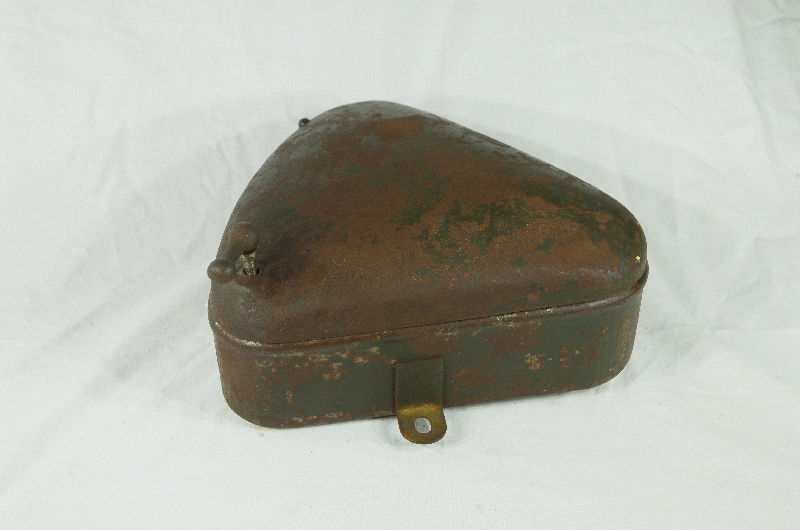

Triumph

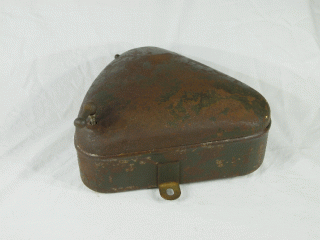

Military Tool Boxes
Genuine NOS
need Painting
with and without Dents
fit all War Dept Models
Triumph Part No. F1692
20,00 € 12,00 € ( 1 ) € each 7.80
( 2 ) € each 3.90
120,00-160,00 €

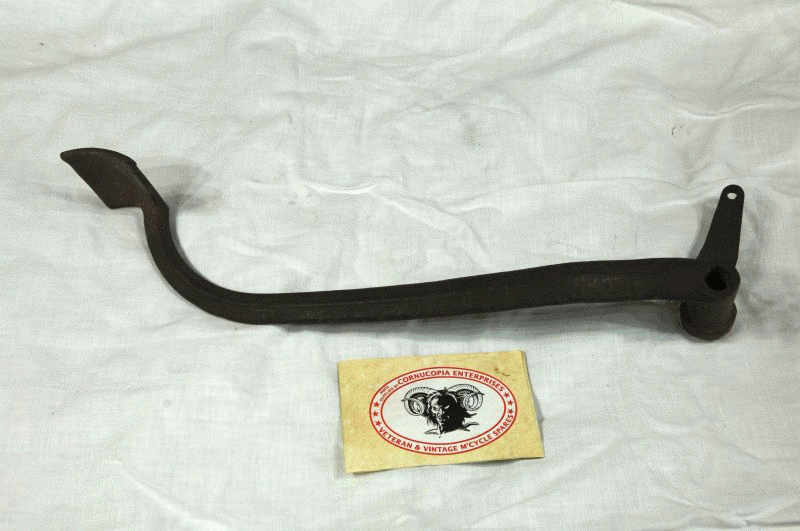

Triumph
Brake Pedal
Genuine Triumph, NOS
this pedal was fitted with the Rubber Pad
Pre War Items rough casting Lines on side + line Markings on Pedal Area
( this Pedal, uses the same Part No., same shape, for all Rigid 1946-54 3T-5T-6T-T100, but has a polished Surface )
fits 1936-40 3HW, 3SW, War Dept Machines etc. ( civil Model ) Triumph Part No. F1153
Triumph
Footrest Nearside
Genuine Triumph NOS
fits all 1937-46 2H, 3S, T70, T80 etc.
Triumph Part No. F987

150,00 € 80,00 €
used 60,00 €

  Electric / Elektrik
Top   Menue
Lucas
Dummy Battery Case
( With King of the Road Logo )
Replica British Made
( Customer supplies and fits own Batery inside case )
fits most British Models
4 3/4 Inch x 3 5/8 In x 6 1/4 Inch ( High )
Lucas
Military H.Lamp Switch + Fixing Clip
Genuine NOS
( used together with Convoy Rear Lamp )
has extra T. Position, for the Tail Lamp
Lucas Part No. MT3/LU/351590
BSA
Petrol Tank Panel Inspection Switch
Genuine Lucas ( Used )
fits 1934-40 all Models with Panel
( will also fit Triumph and Matchless )
BSA Part No. 24-5305 ( DC44 )
BSA
Petrol Tank Panel Inspection Switch
New Replica
fits 1934-40 all Models with Panel
( will also fit Triumph and Matchless )
BSA Part No. 24-5305 ( DC44 )
47,00 € 100,00 € Sold
150,00 €
Sold
190,00 €


BSA
Petrol Tank Panel Inspection Switch
New Replica
fits 1934-40 all Models with Panel
( will also fit Triumph and Matchless )
BSA Part No. 24-5305 ( DC44 )

Sold
190,00 €

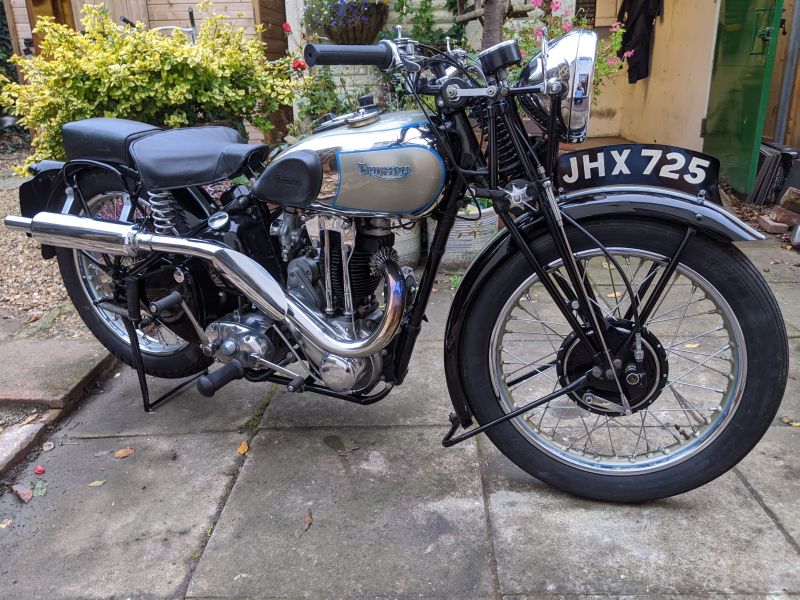

  Customer Triumph OHV Singles Bikes
Top   Menue

Andrew Jeffrey Vic Australia

  This Perfect Restoration Triumph 1939 T90 500cc OHV
belonged to his Father, bought in the late 1970s.
It took over 20 years to restore
Some Parts supplied by Cornucopia Enterprises
