Rudge Spares /
Rudge Ersatzteile
All Parts + Post/Packing + (19%) VAT
Payment with C.Card (+6%)
or PayPal (+ our Charge)
or Bank Transfer


click pictures to enlarge

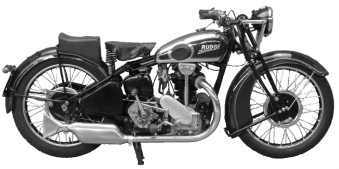

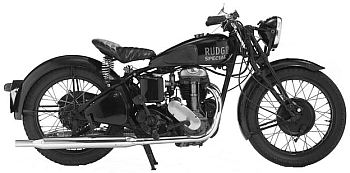

Rudge Ulster 1933 Rudge Special 1937
Valves / Ventile Engine / Motor Sundries / Verschiedenes Electric / Elektrik
  Valves / Ventile
Top   Menue

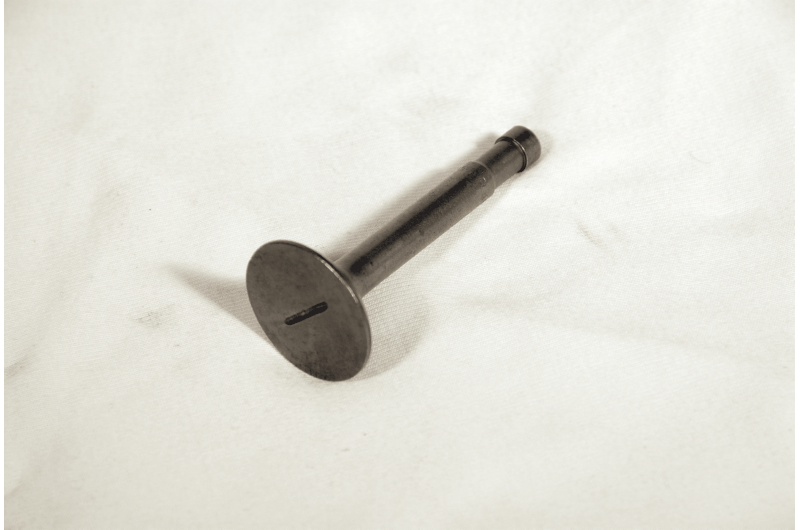

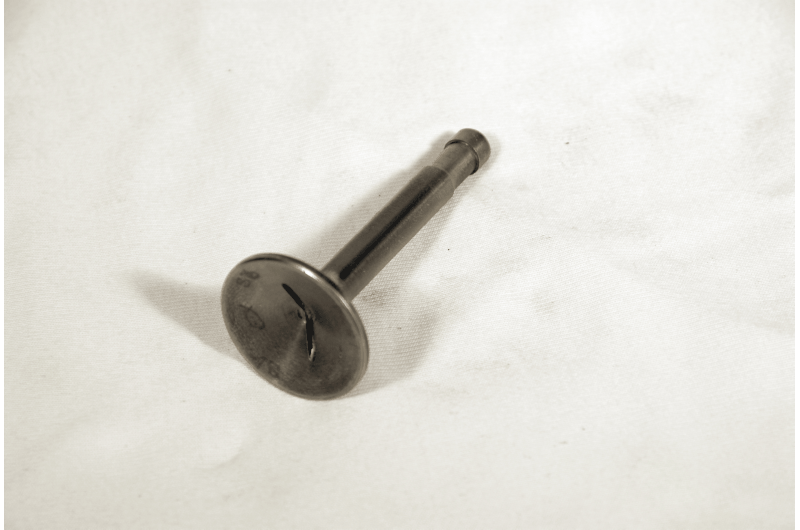

Rudge Inlet Valve
British Made, James J.372
( NOS, from the 1950s )
( Head Size 33.3 mm, Stem 9.4mm, Length 75mm )
fits 1924-31 Ulster,
Special Sports 500cc

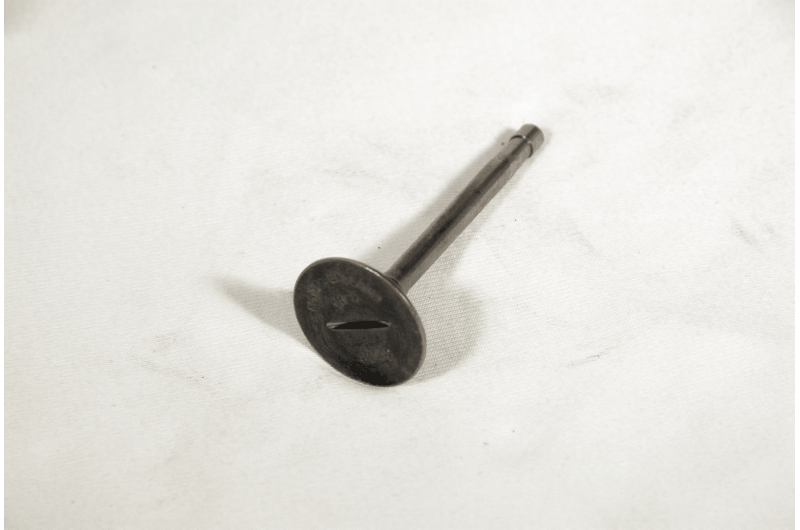

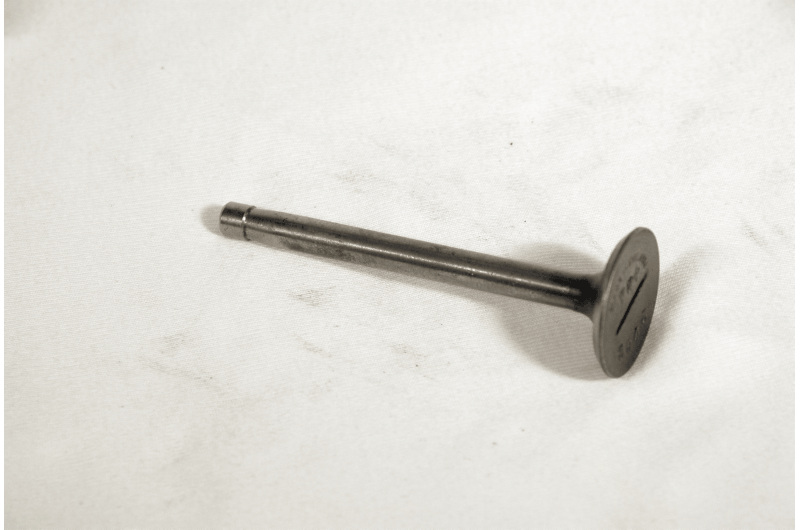

Rudge Exhaust Valve
British Made, James J.370
( NOS, from the 1950s )
( Head Size 35mm, Stem 9.4mm, Length 74.5mm )
fits 1924-31 Ulster,
Special Sports Ex.

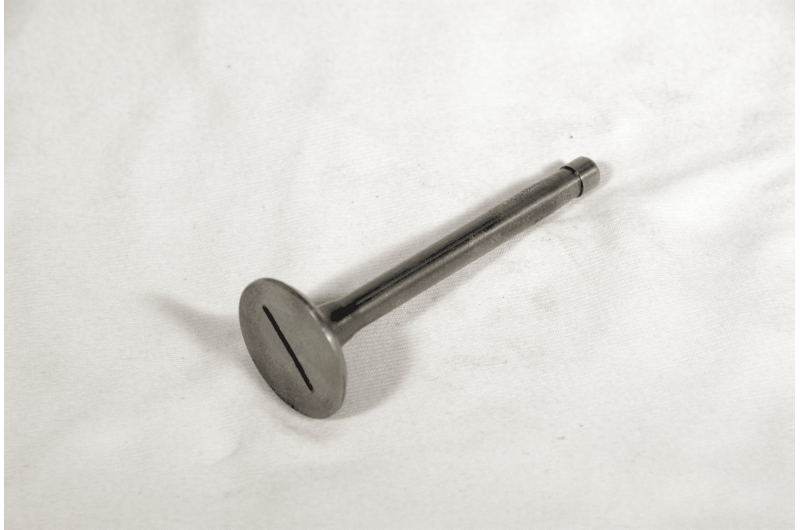

Rudge Exhaust Valve
British Made, James J.473
( NOS, from the 1950s )
( Head Size 31.9mm, Stem 7.9mm, Length 92.9mm )
( Material KE 965 can be used for Exhaust )
fits 1932 Ulster
and 1931-35 Special
Gen Part No 54108

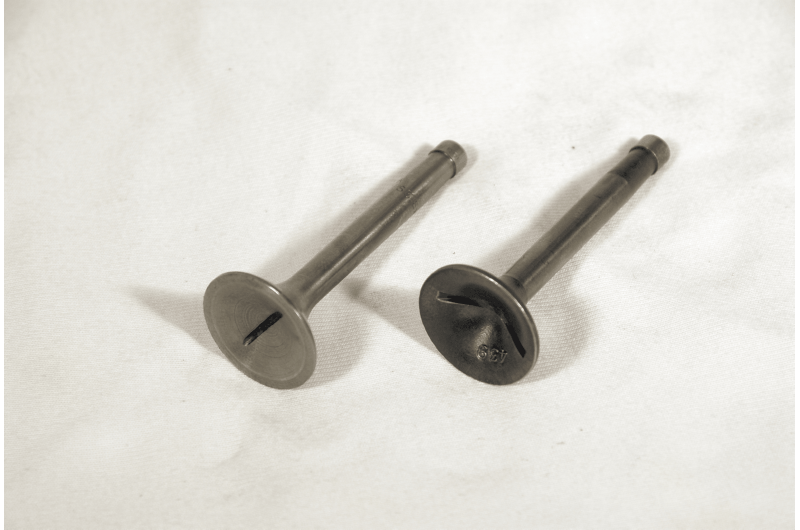

Rudge Valves
British Made, James
( NOS, from the 1950s )
Inlet J.3839 ( Head Size 28.5mm, Stem 7.9mm, Length 74.5mm )
Exhaust J.439 ( Head Size 29mm, Stem 7.9mm, Length 74mm )
fits 1929-30 340cc OHV
22,00 € 22,00 € 22,00 € each 22,00 €
Please Note all valves are measured ( Length ) from under the Valve seat, not end to end. many more in stock, just ask !   But limited stocks.

Rudge Inlet Valve
British Made, James J.3840
( NOS, from the 1950s )
( Head Size 31.7mm, Stem 6.3mm, Length 75.8mm )
fits 1933-36 T.T. Ulster ( Radial C. Head ) 500ccv
Rudge Inlet Valve
British Made, James J.3843
( NOS, from the 1950s )
( Head Size 31.7mm, Stem 7.9mm, Length 92.9mm )
fits 1937-39 Special 495cc OHV Inlet

25,00 € 25,00 €
  Engine / Motor
Back   Menue

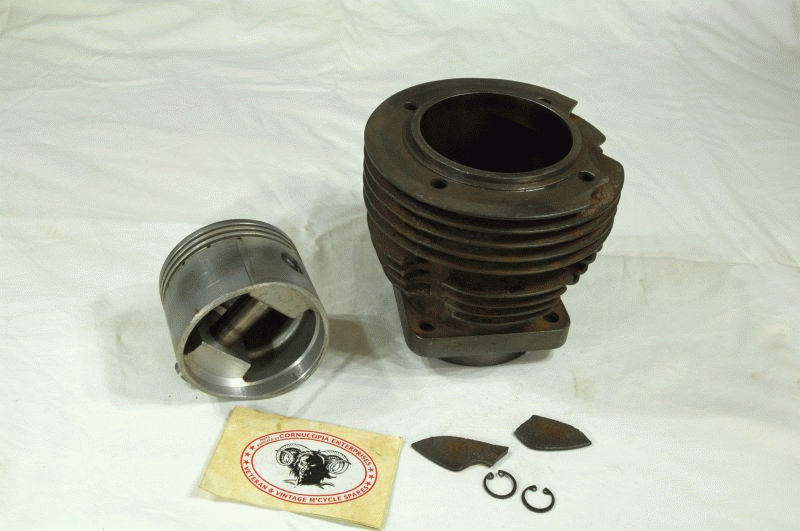

Rudge
Cylinder + Piston
Genuine ( used )
in good Condition
Bore Size 87,92mm ( Standard Bore Size 85mm )
includes none Standard altered Car Piston !!??
for Restoration
chipped top Fin, includes Broken fins
fits 1927-29 Rudge 4 Valve 4 Speed

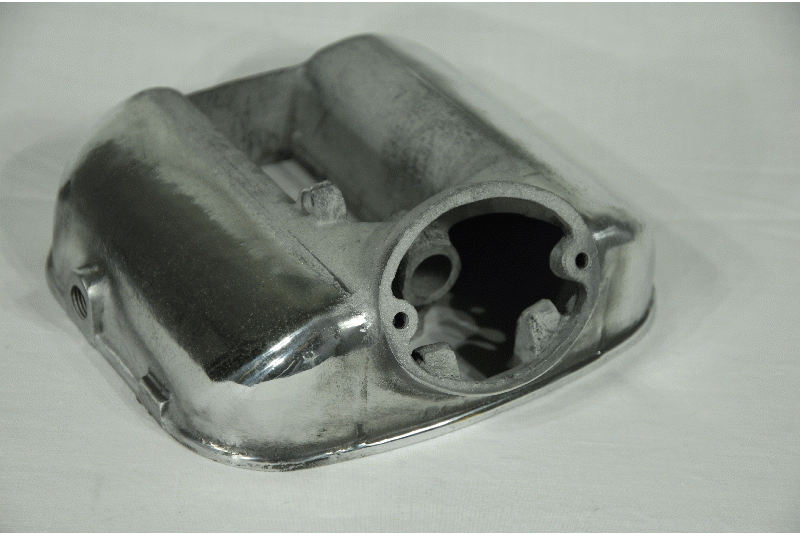

Rudge
Rocker Box
Genuine ( Used )
Good Condition , all threads good
Beadblasted, polished alloy
fits 1937-40 Rudge Ulster, Special, Sports Special.

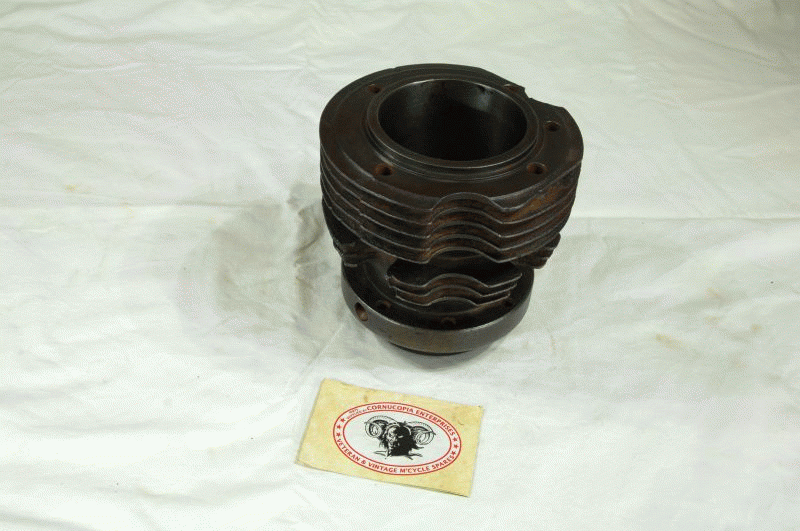

Rudge
Cylinder 500cc
( used )
Standard Bore Size 85mm
one missing Bottom Fin, one chipped Top Fin
in good condition will not need reboring
for Restoration
fits 1932 4 Valve Ulster, Special
Rudge
Cylinder Head + Rockers
two Exhaust Valves one NOS, one good used
five chipped Fins, & Exhaust Port damage
Valve Seat & Rocker Shafts in good condition
for Restoration
fits 1927-29 4 Valve, 4 Speed 500cc OHV
300,00 € 60,00 € 400,00 € 400,00 €

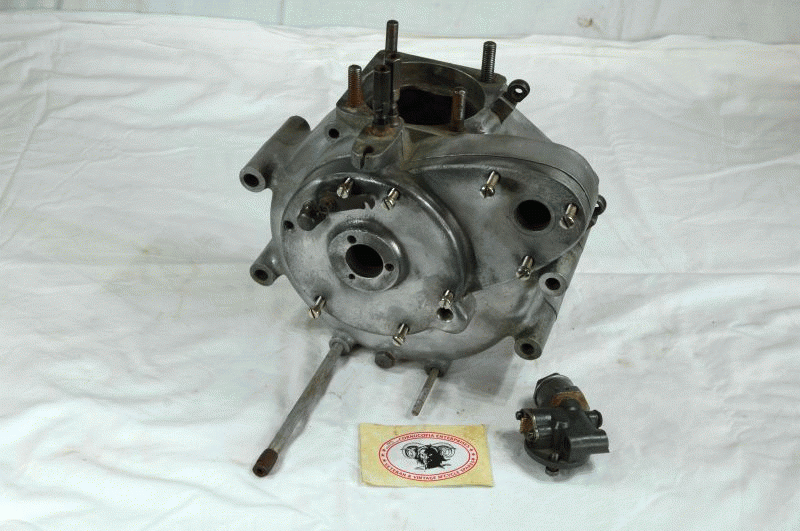

Rudge
Crankcase + Timing Cover + Oil Pump ( J.G. Gurtner Pump )
Crankshaft Shock Absorber Assy ( 3 Lobe ) Sprocket worn,
Pair Cam Followers, Idler Gear, Cam Shaft & Gear & Bush
for Restoration
fits 1927-29 4 Valve, 4 Speed 500cc OHV

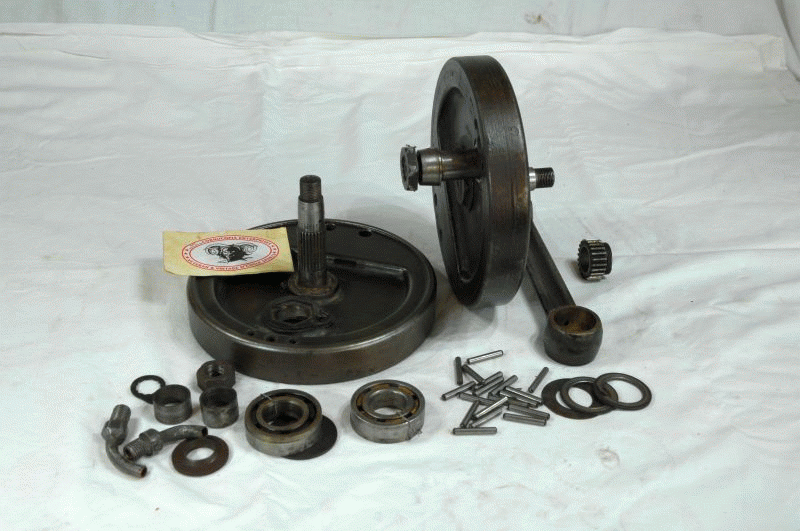

Rudge
Crankshaft ( dismantled )
includes Pair used Main Bearings
Crankshafts in good useable Condition, Crankpin + Rollers has very slight wear !
for Restoration
fits 1927-29 4 Valve, 4 Speed 500cc OHV

600,00 € 400,00 €
 Sundries / Verschiedenes
Top   Menue

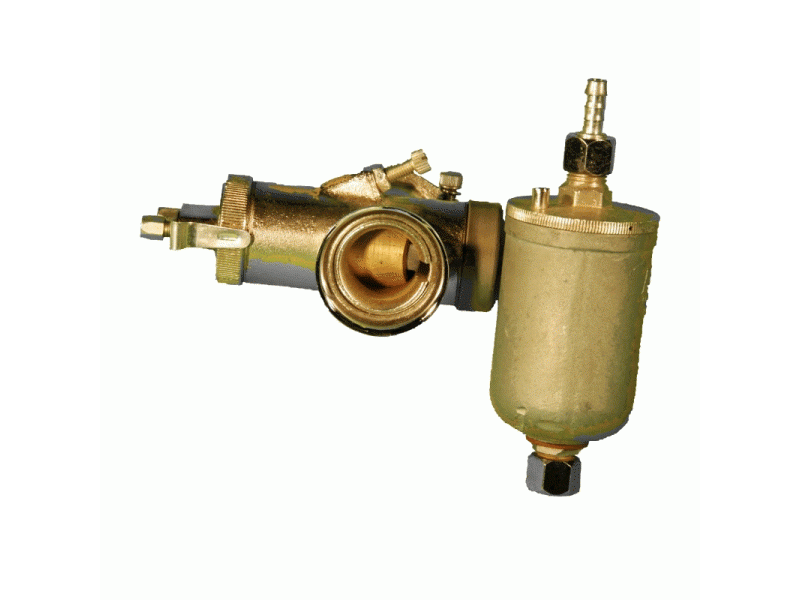

Amal (used) Stamped 206 140R One inch Bore
Brass Body Flange Fitting, 1933/4/5 Carb.(Genuine Amal)

Fits Rudge 250cc

Resleeved body,new slide, Nickled body, Brass f.chamber,cap, New brass m.chamber cap, New,needle, n.jet,jets, Springs, Adjusting screws, Gasket set, Float used

Carb must be assembled by customer.

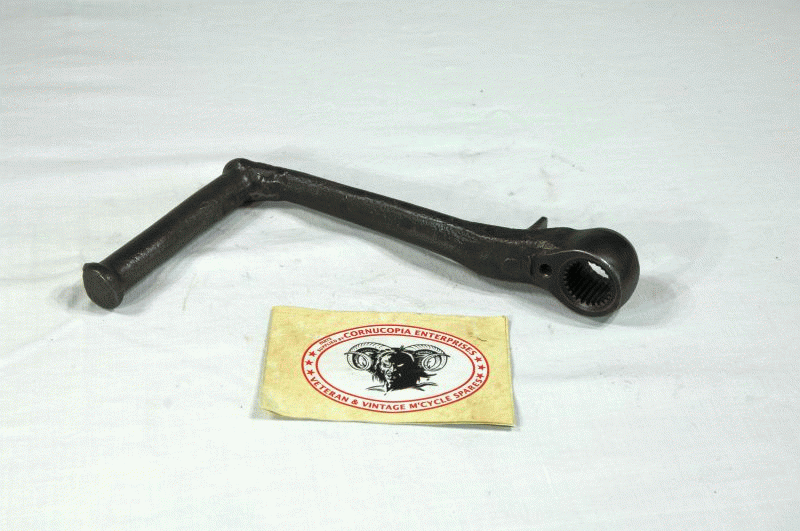

Rudge
Kickstart Pedal
Genuine ( used )
Good Spline
Arm Length 7 inches
1930s Rudge

450.00 € 100,00 €
  Electric / Elektrik
Top   Menue

Lucas
Dummy Battery Case
( With King of the Road Logo )
Replica British Made
( Customer supplies and fits own Batery inside case )
fits most British Models
4 3/4 Inch x 3 5/8 In x 6 1/4 Inch ( High )
Lucas
Switch Knob ( Handle )
Genuine
fits Lucas Head Lamp Switch Pt No U39, 31340 A
fits 1936-57 all 6 / 7 Inch Lucas H.Lamps
Lucas Part No. 351567

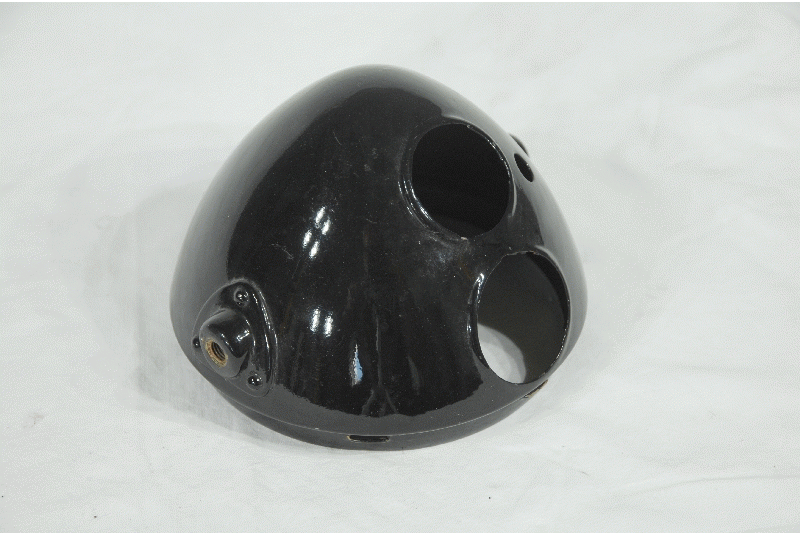

Miller
6 Inch Miller H. Lamp Shell
Genuine ( used )
Black painted
( a 15 mm none Standard hole drilled at side of Switch Aperture )
no dents, all threads good

47,00 € 9,00 € 150,00 €
