Norton
16 H / Big Four
Spares / Norton Ersatzteile
All Parts + Post/Packing + (19%) VAT
Payment with C.Card (+6%)
or PayPal (+ our Charge)
or Bank Transfer


click pictures to enlarge

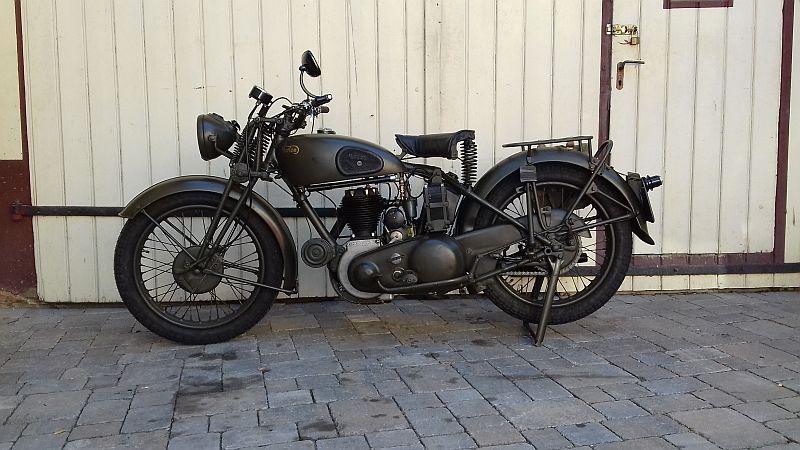

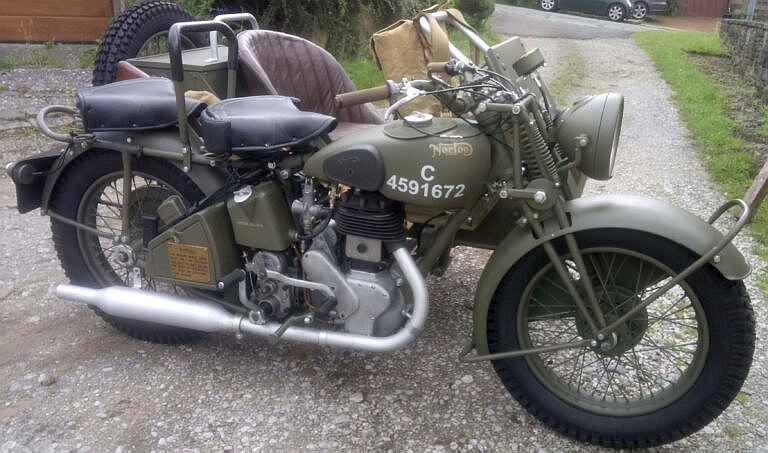

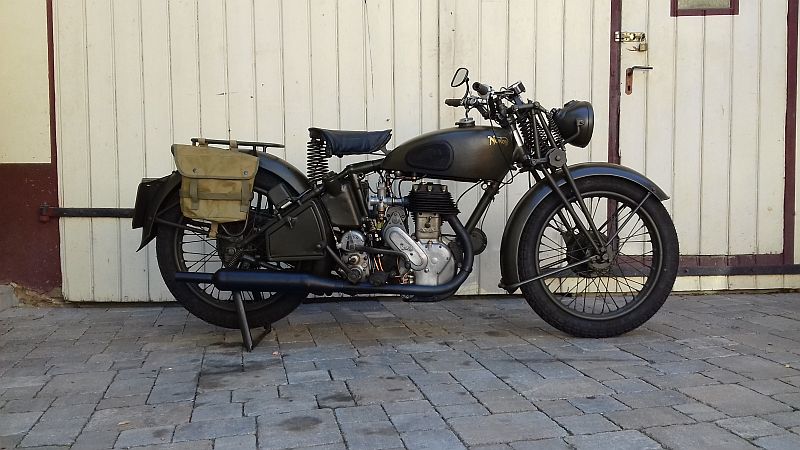

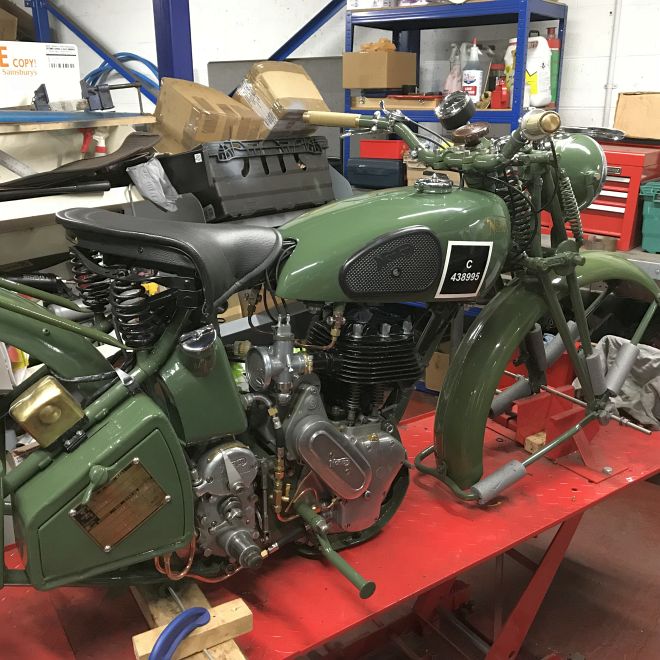

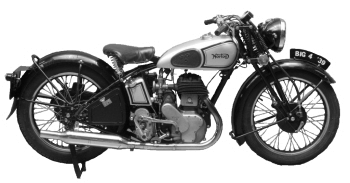

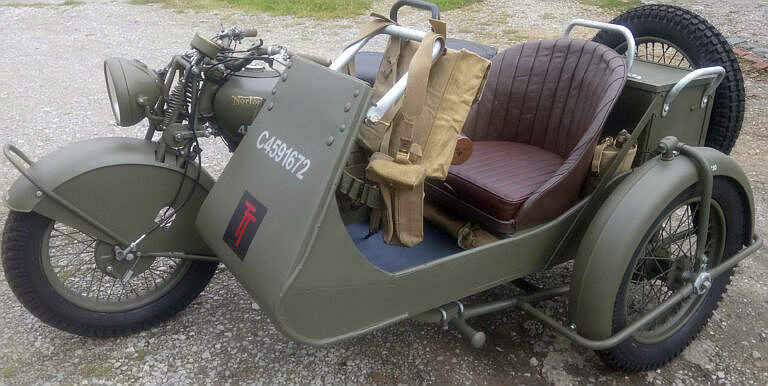

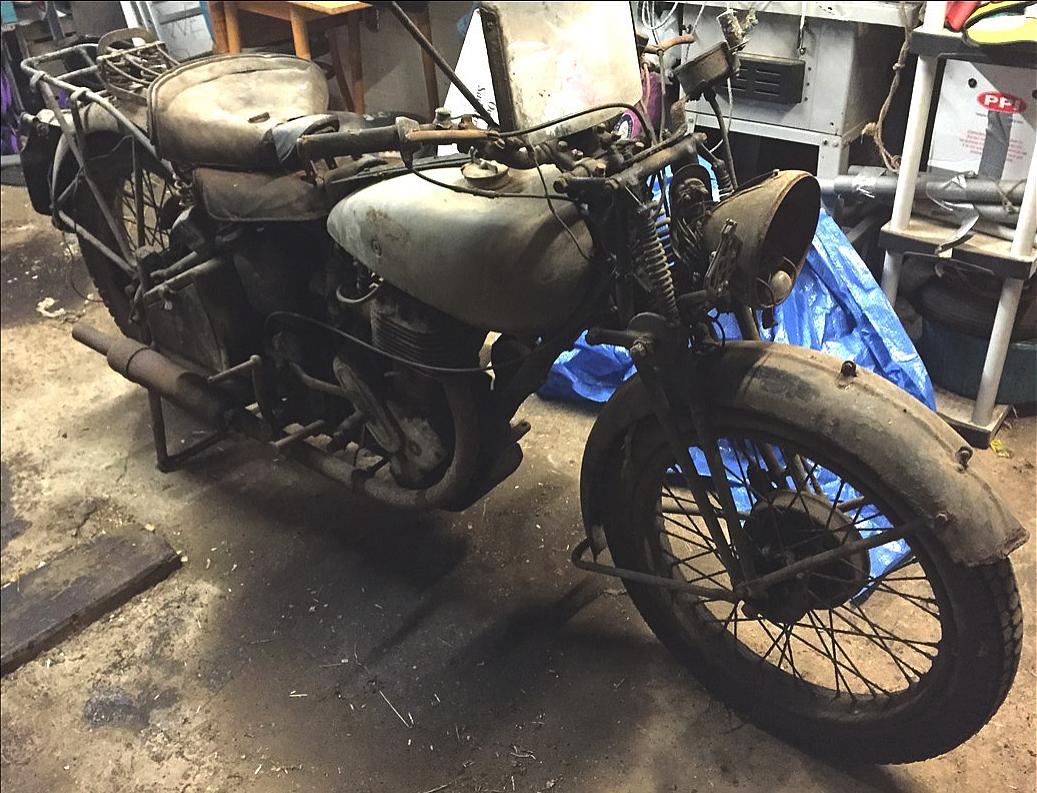

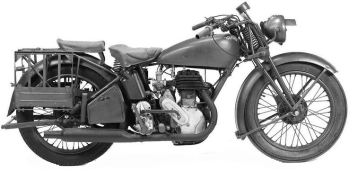

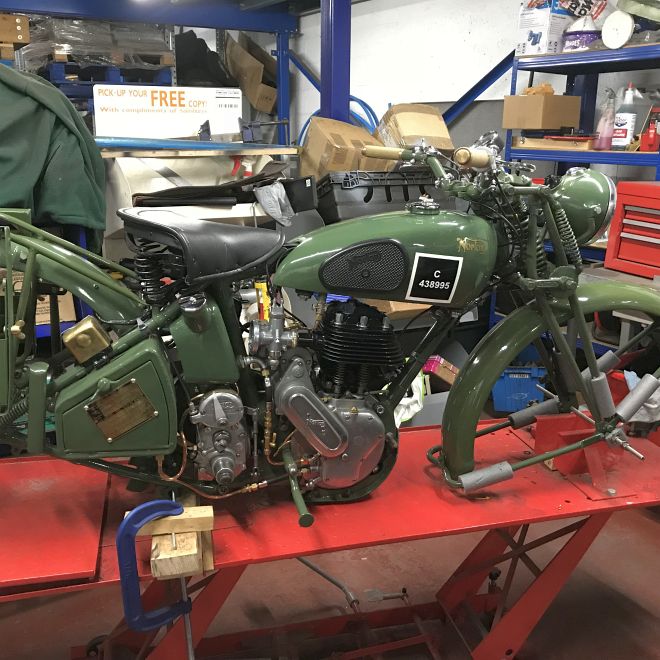

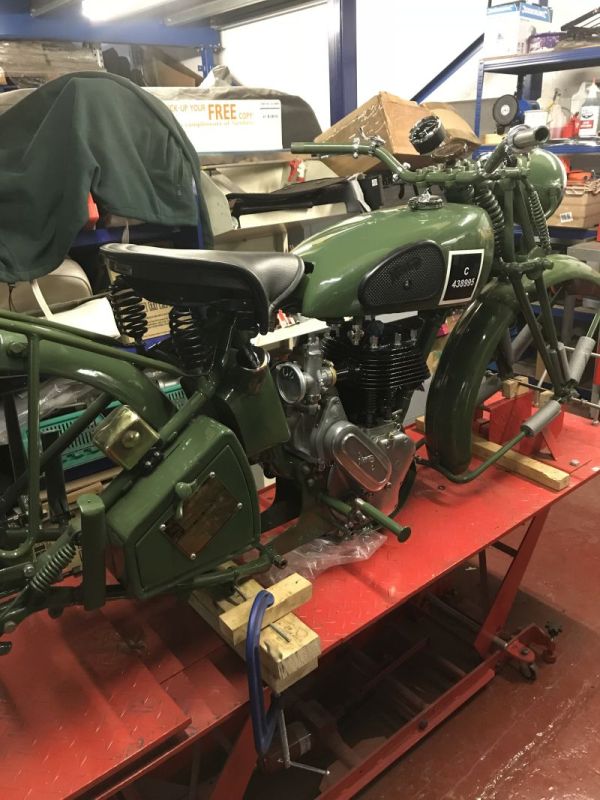

Norton Model 16H Military Norton Model 16H 1944
click
Valves / Ventile Engine / Motor Clutch , Gearbox / Kupplung , Getriebe Wheels / Räder Fork / Gabel Sundries / Verschiedenes Electric / Elektrik
  Valves / Ventile
Back   Menue

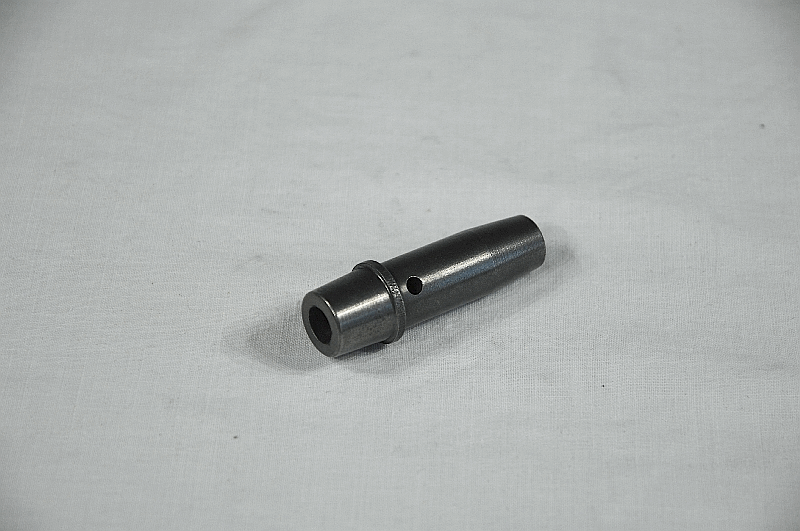

Norton
Valve Guide, Inlet ( Oil drill hole )
NOS British James
Length 2 Inch 3/8 = 60,3mm,
Bore 11/32 = 8,7mm,
Push fit in Head 5/8 = 15,9mm
fits 1934-39 Model 55 350cc OHV

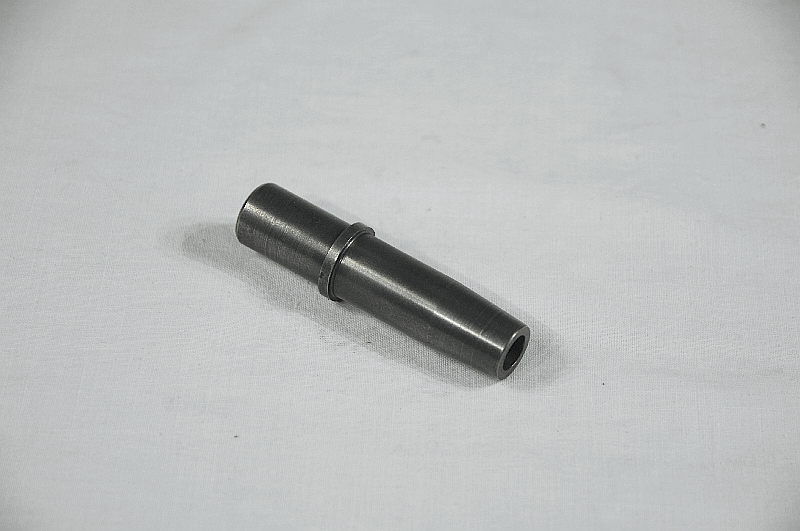

Norton
Valve Guide
r> NOS British James
Length 2 Inch 7/8 = 73mm,
Bore 11/32 = 8,7 mm,
Push fit in Head 5/8 = 15,9mm
Distance from flange, to top of Guide 1 Inch = 25.4mm
fits 1948-54 600cc SV Big Four

each 10,00 € each 14,00 €
  Engine / Motor
Top   Menue
Norton 16H, Big Four

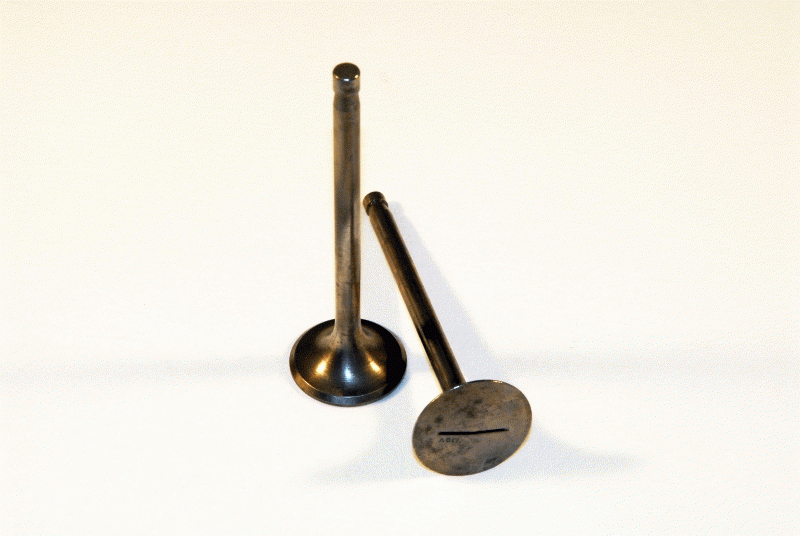

Norton Valves ( British Made, James ) NOS
fits models
1936-45 16H, Big Four 499cc and 633cc ( 3700 )
1938-48 16H, Big Four, Civilian 490cc and 633cc ( 3706 )
1948-54 Big Four 596cc ( 3710 )
Inlet and Exhaust made from same material,
so interchangeable
Norton

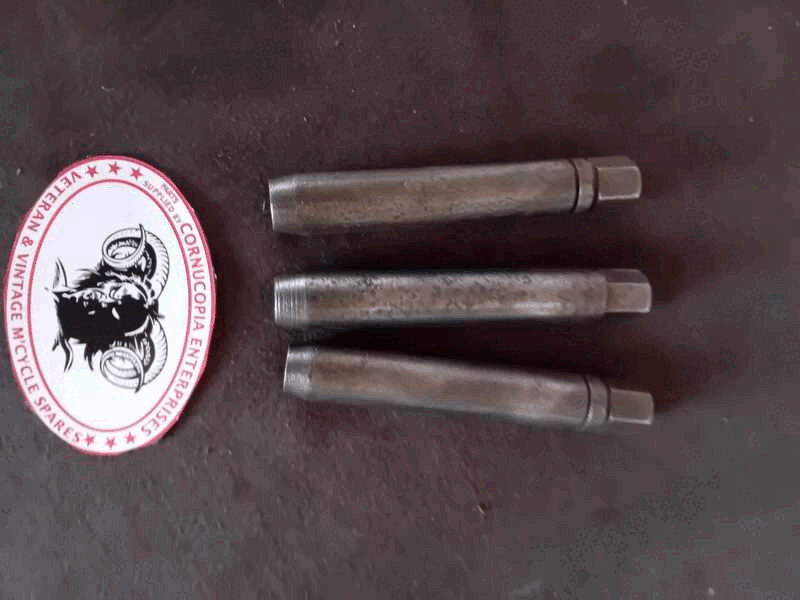

Valve Guides
Replica NOS
from the 1950s Make James
Inlet and Exhaust are same
Length 71mm / 2 13/16, Bore 8.7mm / 11/32
Push fits in Head Bore 15.9mm / 5/8
fits 1923-35 490cc SV 16H
1933-35 633cc SV Big Four
Norton Part No. 5120

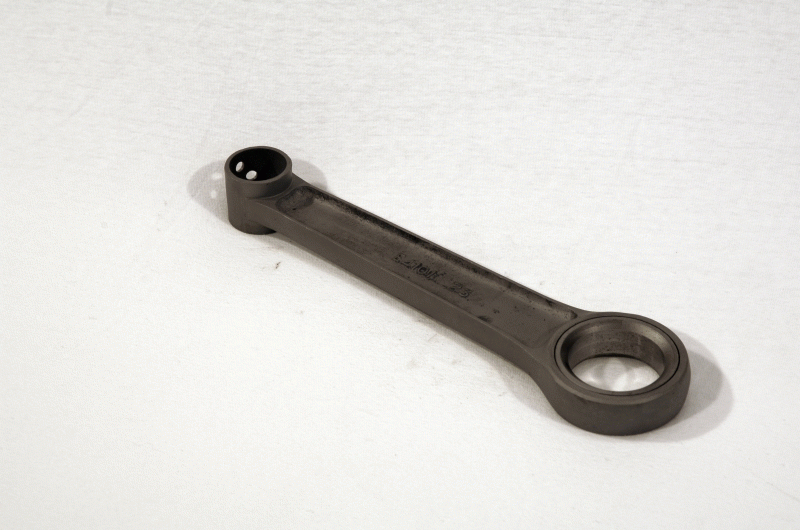

Norton 16H
Genuine Con Rod NOS
( Bare no Bushes )
fits Model 16H 500cc S.V.
Norton Part no. 9173
Norton

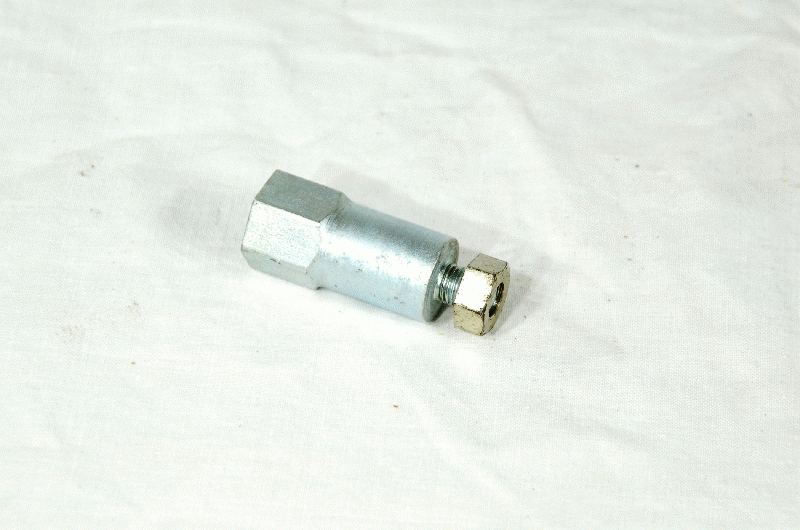

Inner Primary Chaincase Attachment Bolt + Nut
( Holds Inner Chaincase to Engine Plate )
Replica
Norton Part No. 3423
each 18,00 € each 25,00 € 60,00 € 25,00 €

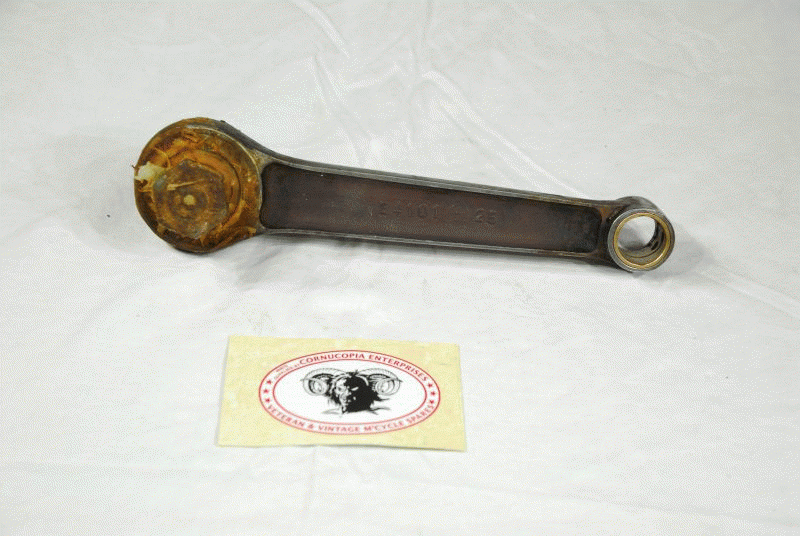

Norton
Con Rod
Genuine NOS
C/ W Complete Big End Bearing
includes new small End Bearing fitted.
fits 16 H / Big Four
Norton Part No. On Rod E4101 & 25
Norton

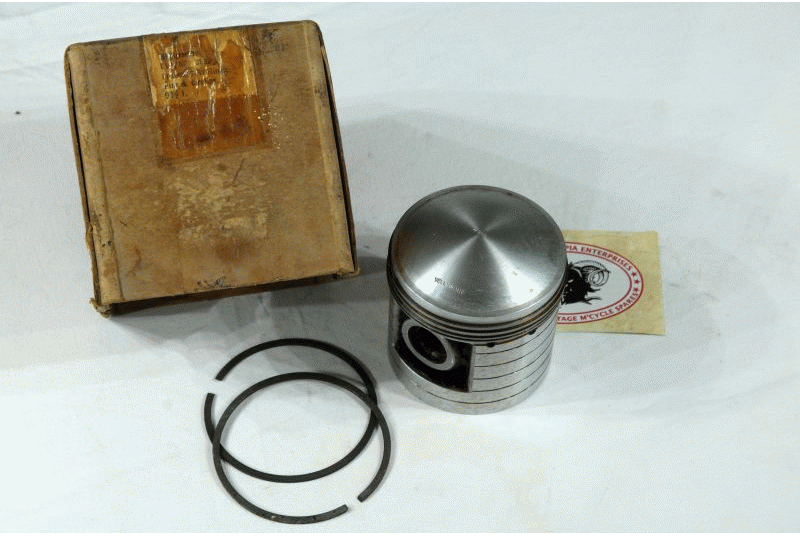

Piston
Genuine Wellworthy NOS
( 1 ) Piston +040 Thou Oversize = 1mm
( Standard Bore Size is 79mm )
complete with Ring Set, Piston Pin, Clips
( some with original Wrapping,
some will be delivered in War Dept Grease )

fits 16H
Norton Part No. LV7/3962

also in Stock Genuine Wellworthy ( 2 ) Comp Rings Std + 020 + 040 Thou Oversize
Norton

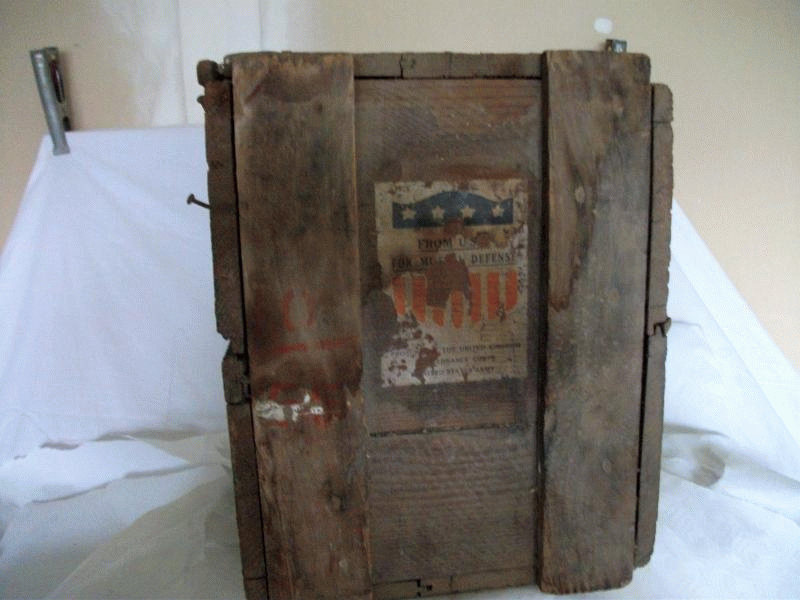

COLLECTORS ITEM ?

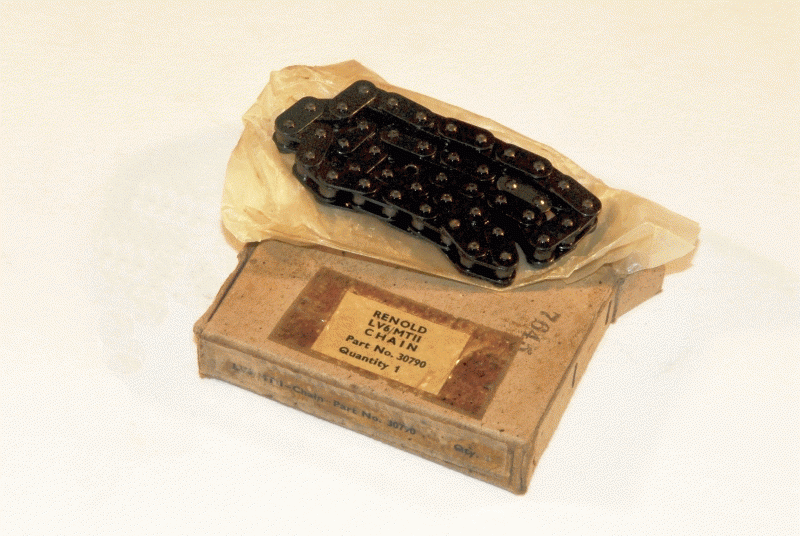

Renolds Magneto Chains
Wooden Cases from the USA
Dropped by Parachute, into GREECE
( at the Start of the 2nd World War )
see text on Box

Information given on the box "112" Chains, on the Delivery Note "113".
Bad Quality Management during Wartime.
.375 Inch 42 links
( 1 ) Sealed Case with Chains
( 2 ) Empty Case for Display
( 3 ) Single Chain
fits 16H, Big Four
also Twins 1950-1968 incl. Commando

400,00 € ( 1 ) 160,00 €
( 2 ) each 6,00 €
( 1 ) 700,00 €
( 2 ) 50,00 €
( 3 ) 14,00 €

 Clutch , Gearbox / Kupplung , Getriebe
Top   Menue

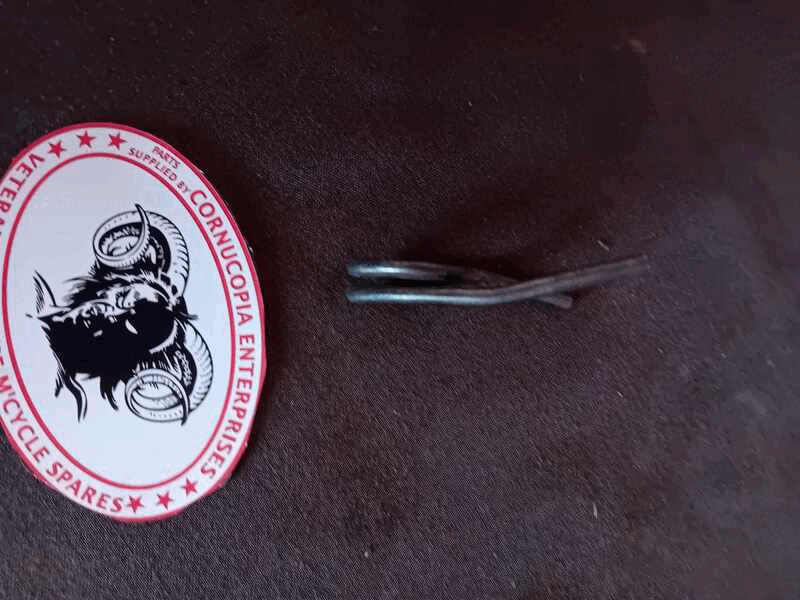

Norton

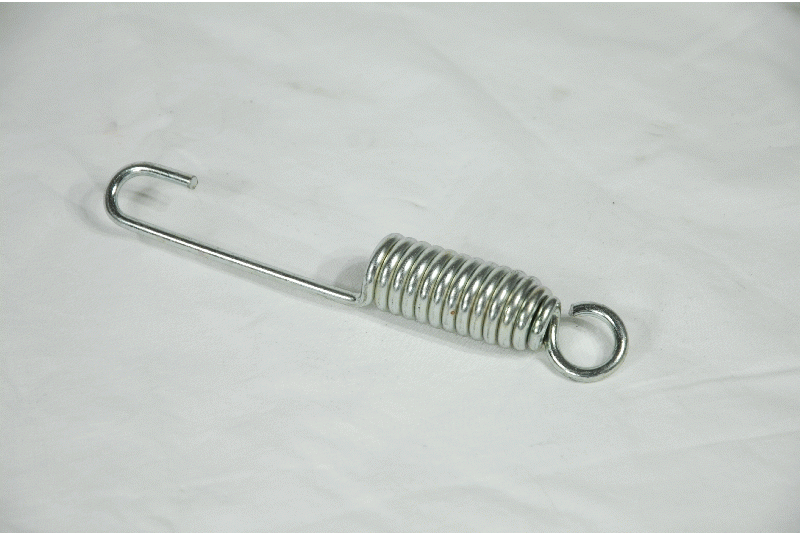

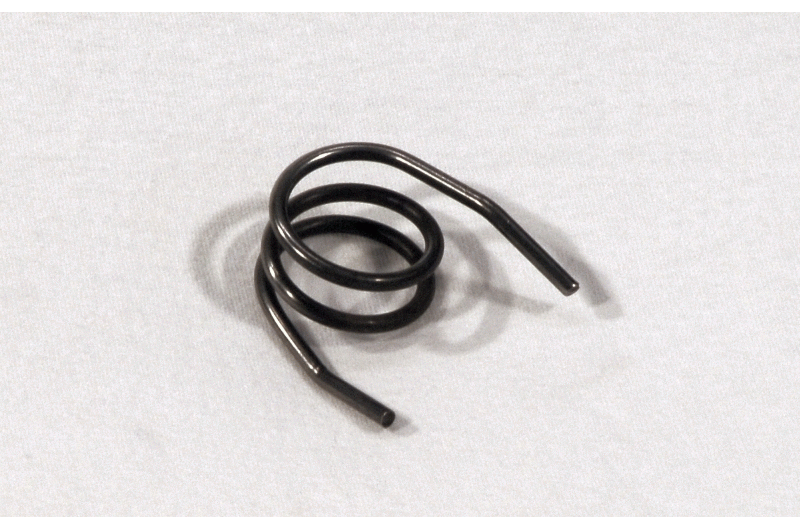

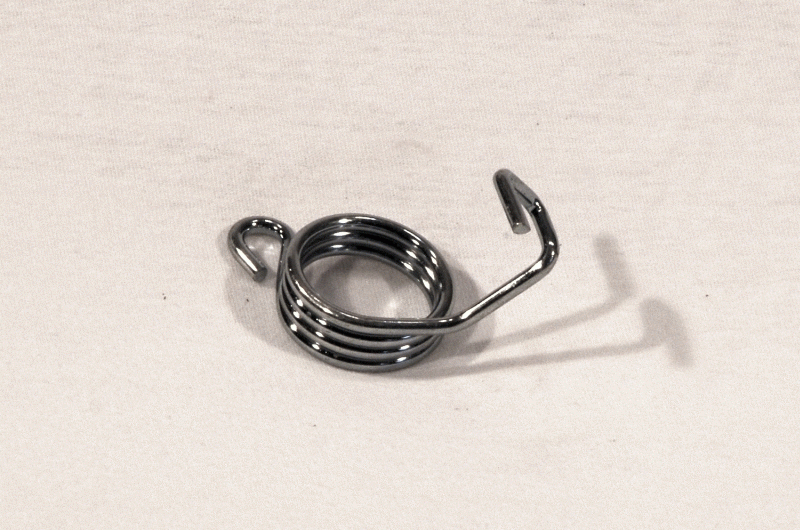

Gearbox Return Spring for Pawl Carrier
( Replica )
fits 1936-49 all Models
Norton Part No. 3629 and A2/410
Norton
Gearbox Bottom Bolt and Nut
( Replica )
1/2 20 TPI + 5/16 26 TPI Threads
Fits 1936-49
16H. ES2. 18 and Inters
Norton Part No. 9461 and A2/312
Norton

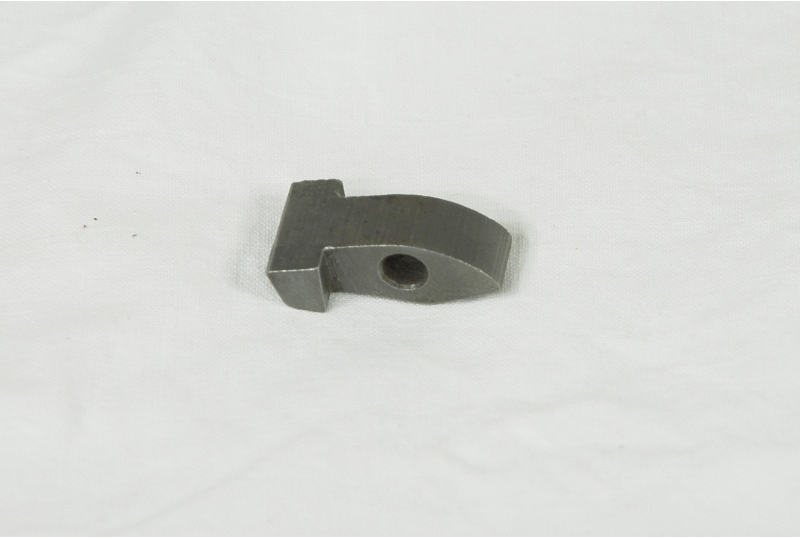

Kick Start Pawl
Genuine NOS
fits 1936-60 all Models
Norton Part No. 9699
Norton

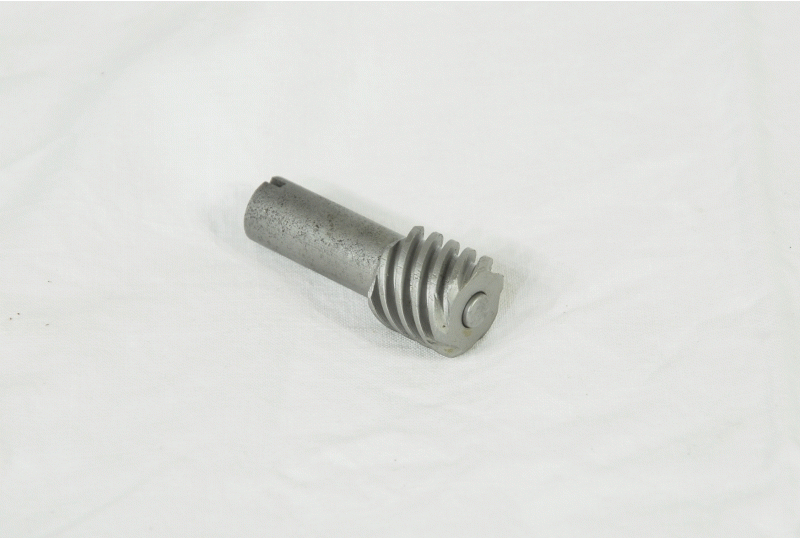

Clutch Worm
( Fits in Gear Box Outer Cover )
Genuine NOS
fits 1936-50 Models 16H, Mod 18, ES2, Inter Models 30 / 40
Norton Part No. 3608 ( A2 / 375 Late 50s )
6,00 € 30,00 € 26,00 € 28,00 €

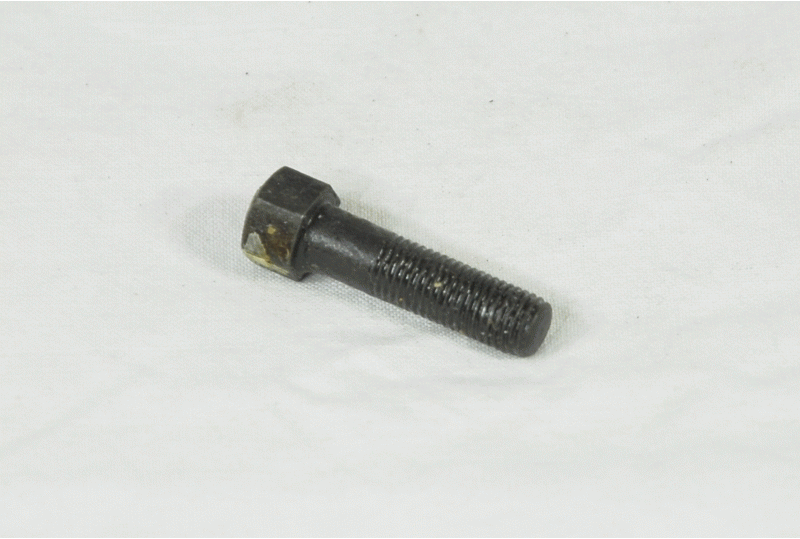

Norton
Kickstart Pedal Bolt
( Black Finish )
Genuine NOS
Size 1 3/16 X 5/16
( many Applications on W.D. Nortons )
Norton Part No. 9702

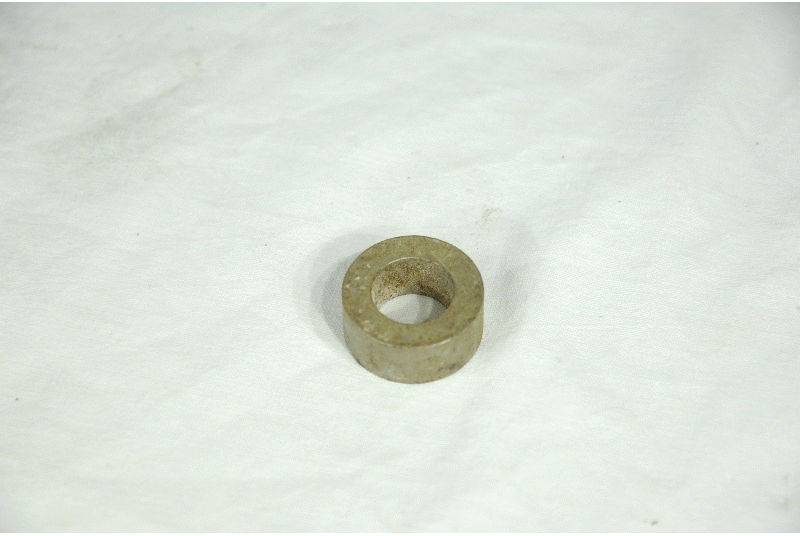

Norton

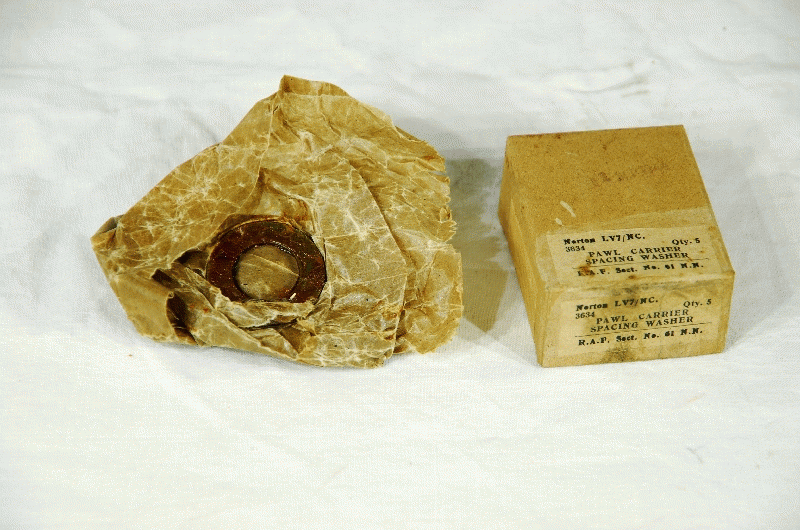

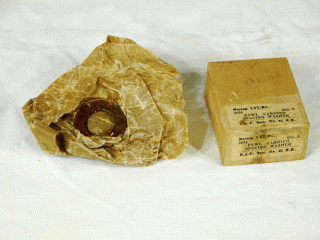

Gearbox, Pawl Carrier Spacing Washer
( Positive Stop Foot change Parts )
Genuine Norton NOS
Norton Part No. 3634

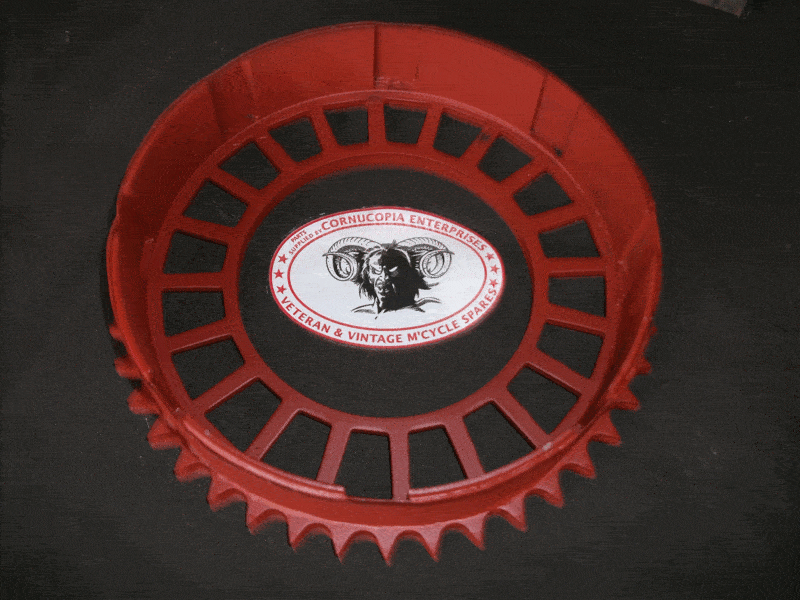

Norton

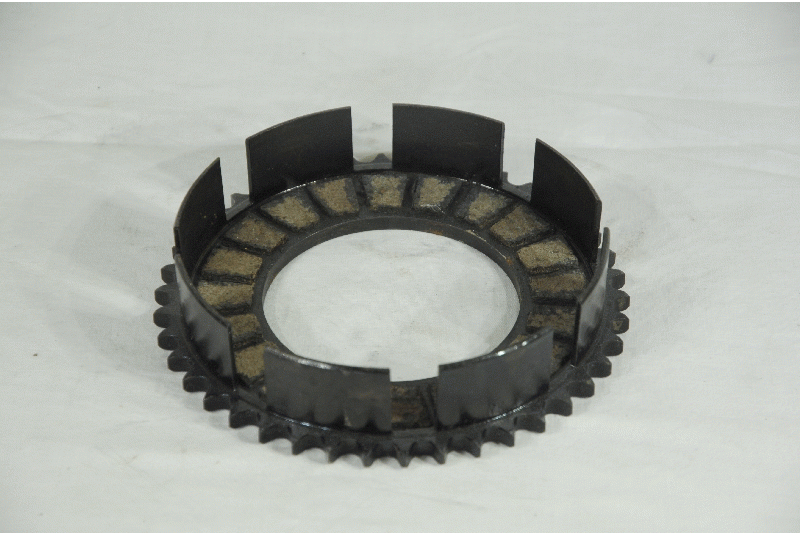

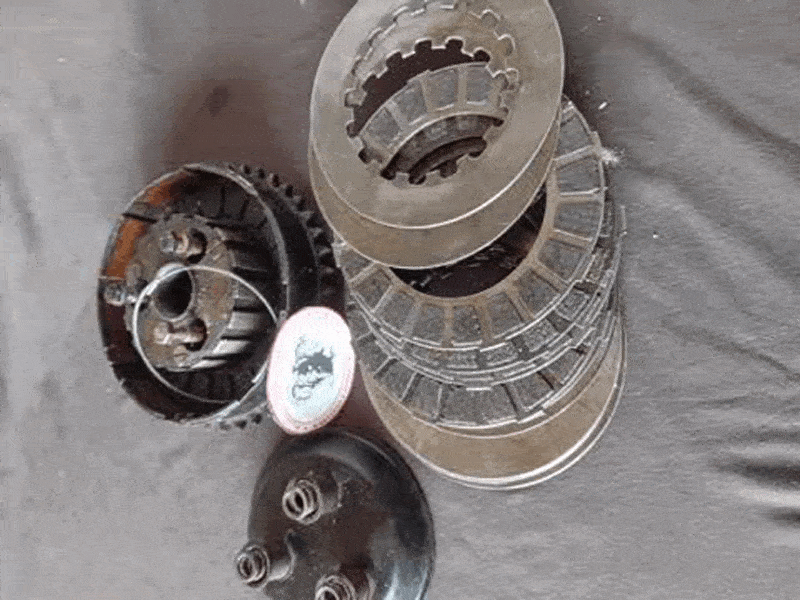

Clutch Drum
Genuine NOS
fits up to 1955 all models 16H, Big Four etc.
Norton Part No. 3337

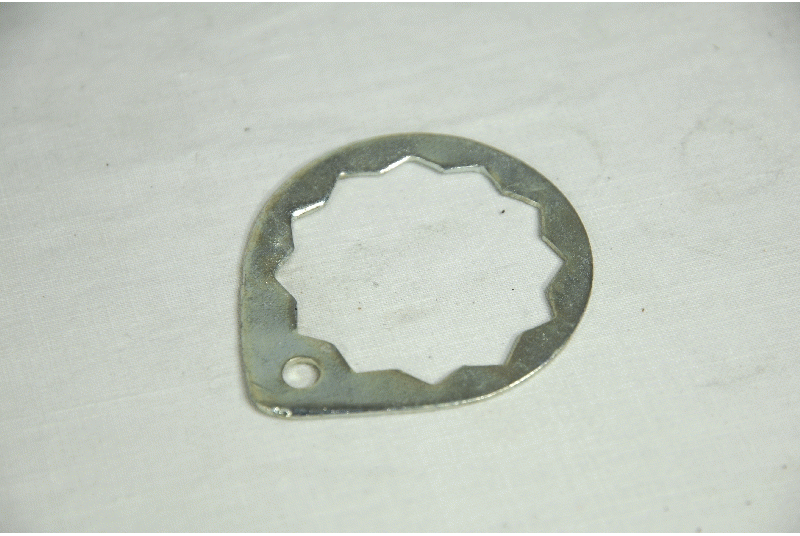

Norton
Gearbox Sprocket Nut, Tab Washer
Genuine NOS
fits all Models
Norton Part No. 9715
5,00 € 2,00 € 180,00 € 8,00 €

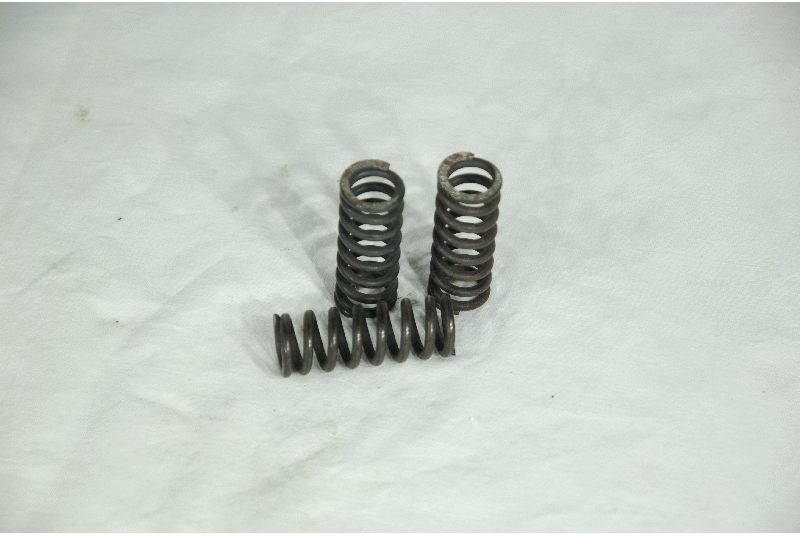

Norton
Set of 3 Clutch Springs
Replica
fits 1934-60 all Models 350cc, 500cc, 600cc
Norton Part No. 3350
Norton
Genuine NOS

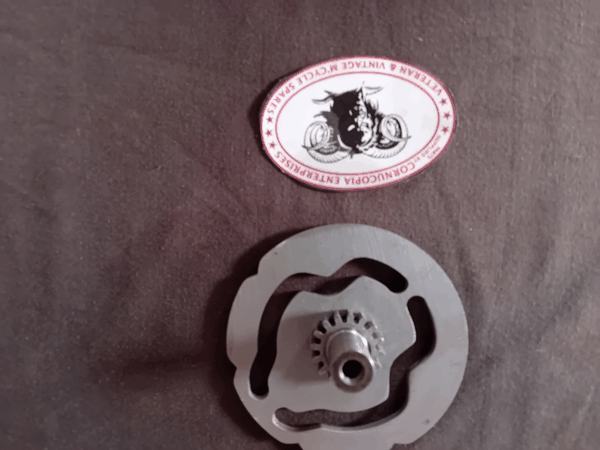

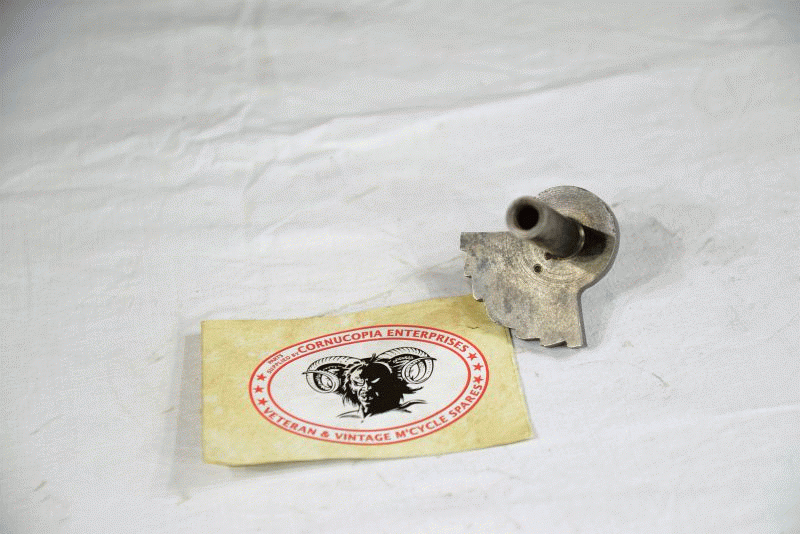

Gearbox Ratchet Plate
Genuine
fits 16H, Big Four, ES2 Models
Norton Part No. 3641

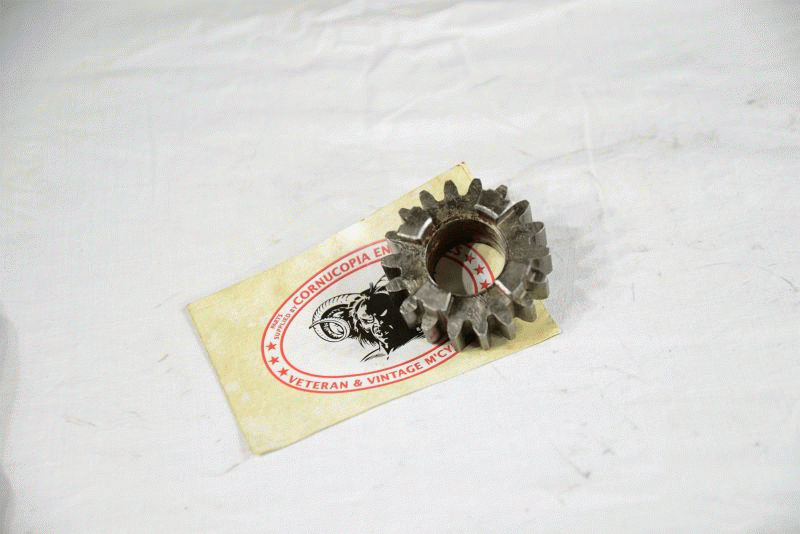

Norton
Gearbox Main Axel Pinion
Genuine NOS
( 13 Teeth )
fits 16H, Big Four, ES2 Models
Norton Part No. 9677

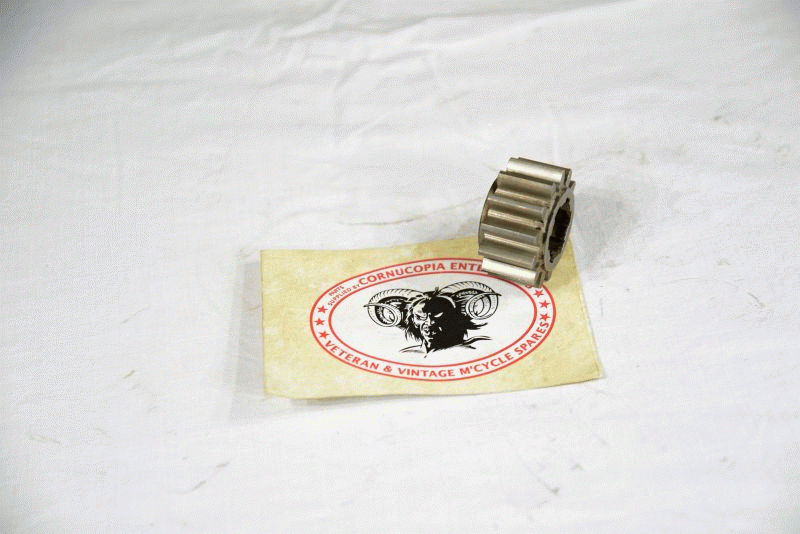

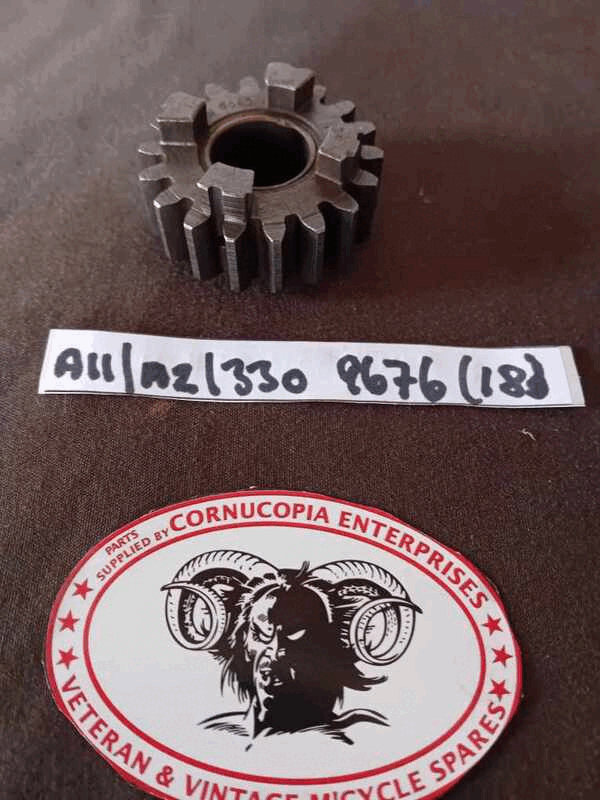

Norton
Gearbox Main Axel Free Pinion
Genuine NOS
( 18 Teeth )
fits 16H, Big Four, ES2 Models
Norton Part No. 9676
Set 18,00 € 30,00 € 45,00 € 45,00 e
  Wheels / Räder
Top   Menue
Norton 16H, Big Four

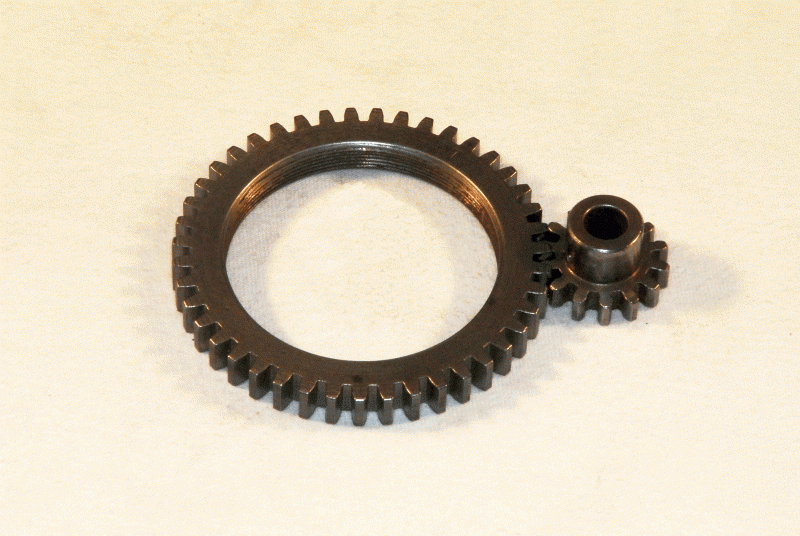

Speedo Drive Gears NOS
Front Hub ( Internal )
Fits all 16H, Big Four models ( War Dept models) and all other Pre War Girder fork models
( except international Models )
( 1 ) Hub Gear 43 Teeth
Part No. P.25218
( 2 ) speedo gearbox drive gear 14Teeth ( Replica )
Norton

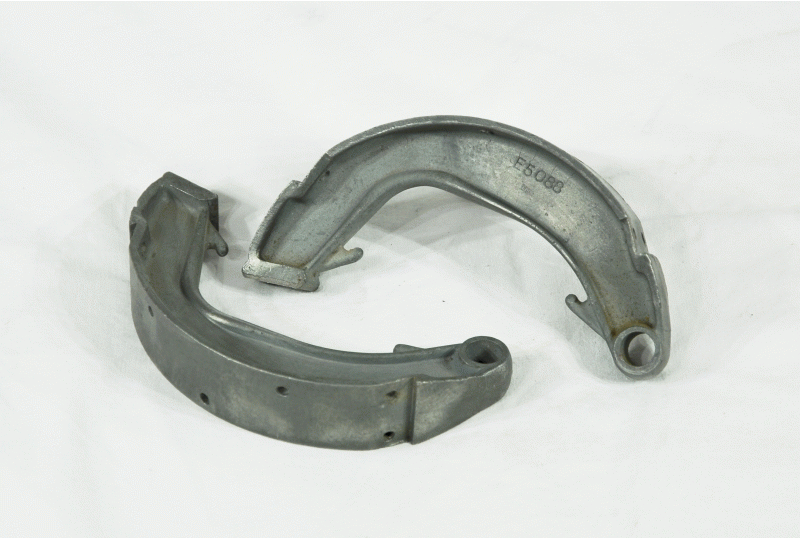

used Front or Rear Brake Shoes ( Pair less Linings )
Genuine Norton
fits 1936-50 all Models
Norton Part No. 9499

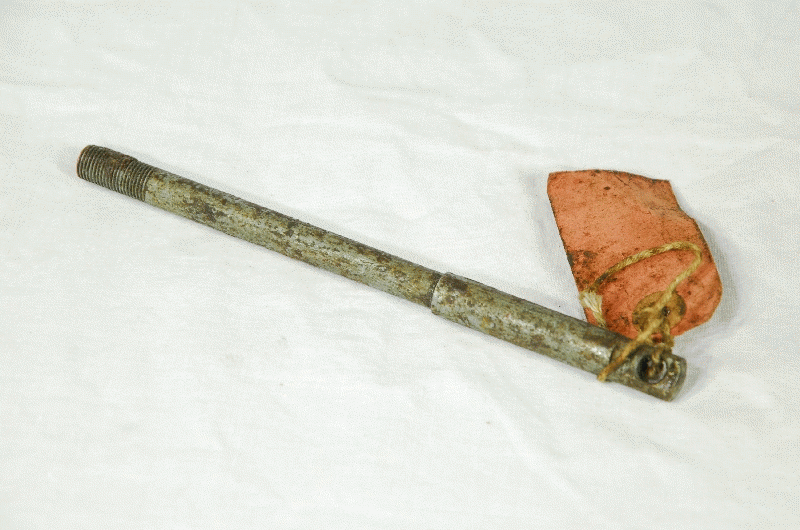

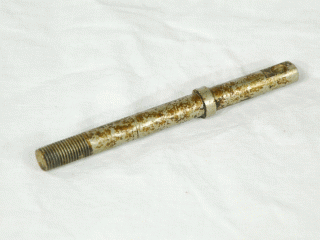

Norton

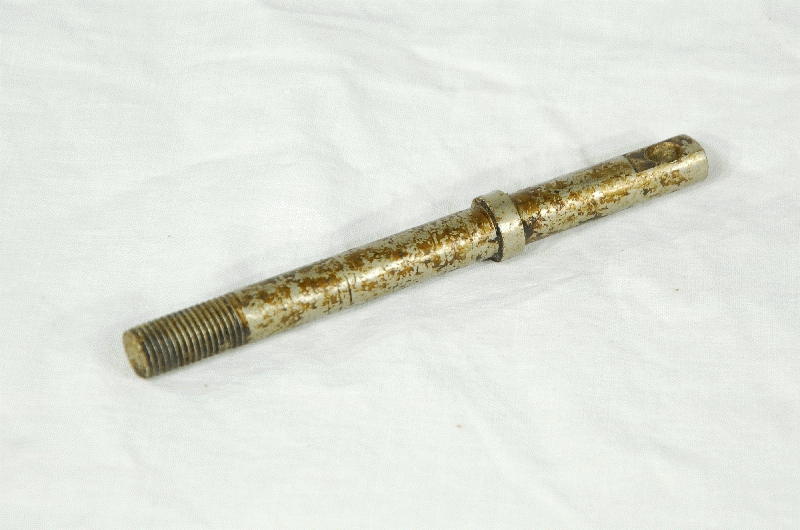

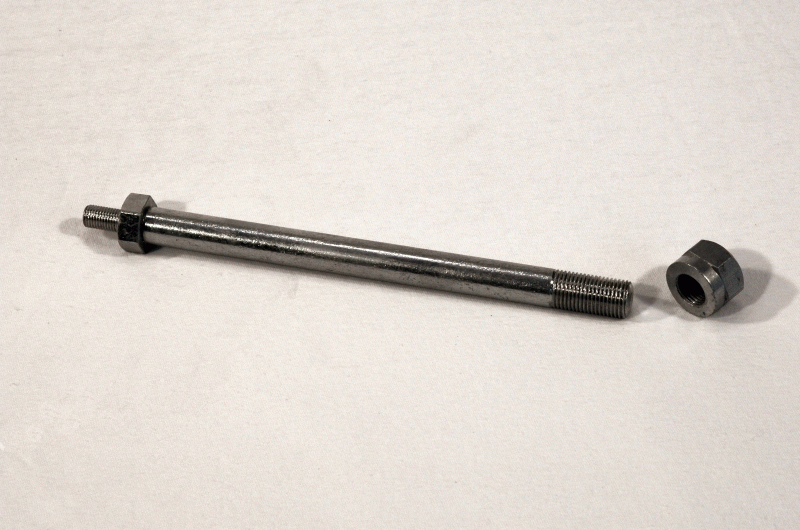

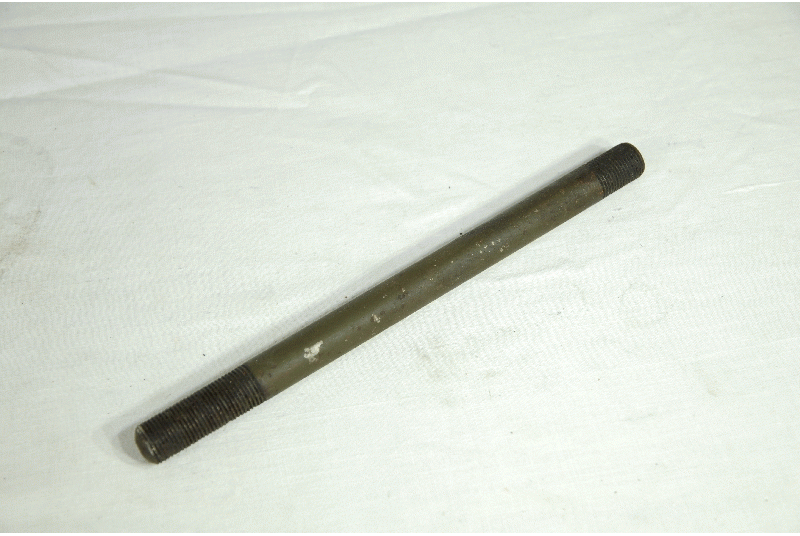

Front Wheel , Hub Spindle
Genuine NOS
9/16 x 20 TPI
fits Girder Fork Models 16H, Big Four etc.
Norton Part No. 9507

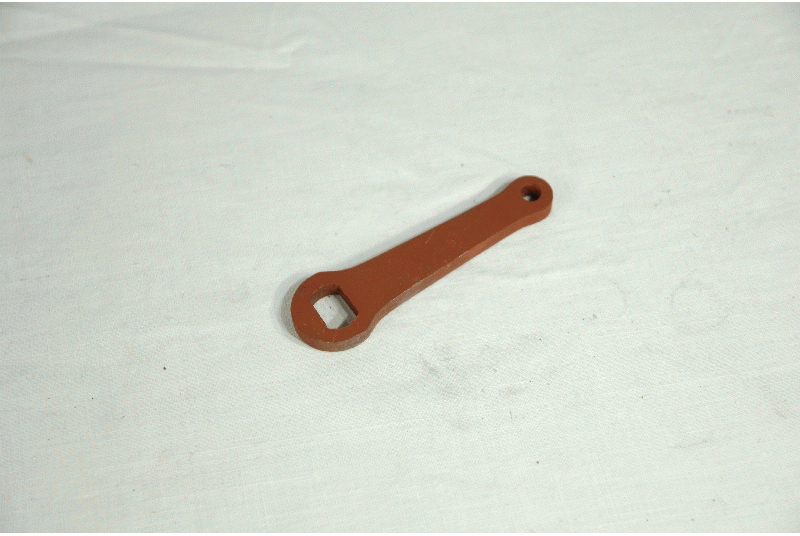

Norton
Front Hub, Brake Cam Lever
Genuine NOS
fits Girder Fork Models 16H, Big Four etc.
Norton Part No. 9514
( 1 ) 80,00 €
( 2 ) 52,00 €
Pair 30,00 € 30,00 € 30,00 €

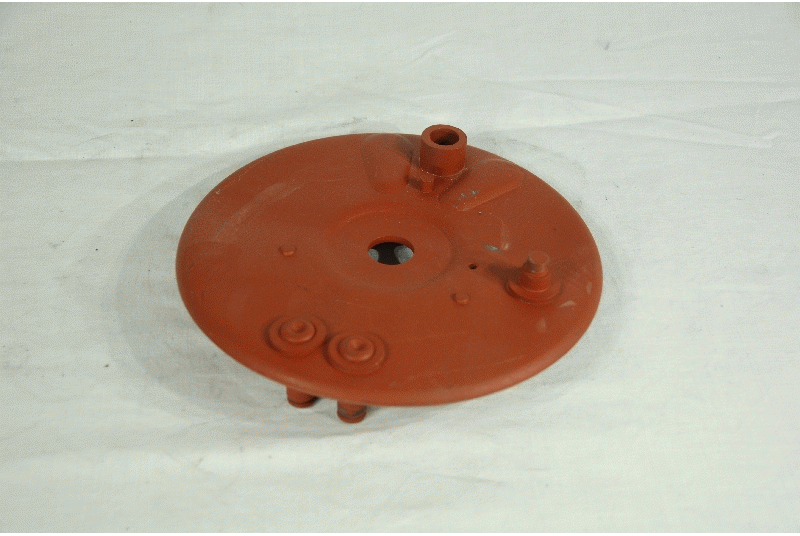

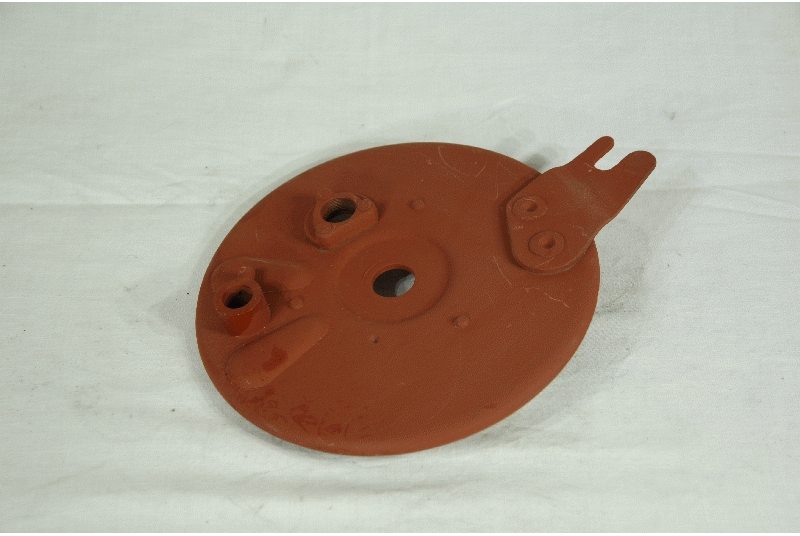

Norton
Front Hub Brake Plate
Genuine ( Used )
Bead Blasted, Primer Coat
fits Models 16H, Big Four, Mod 18, etc.
( Girder Fork Models )
Norton Part No. 9512
Norton
Rear Hub Brake Plate
Genuine ( Used )
Bead Blasted, Primer Coat
fits Models 16H, Big Four, Mod 18, etc.
( Girder Fork Models )
Norton Part No. 9517

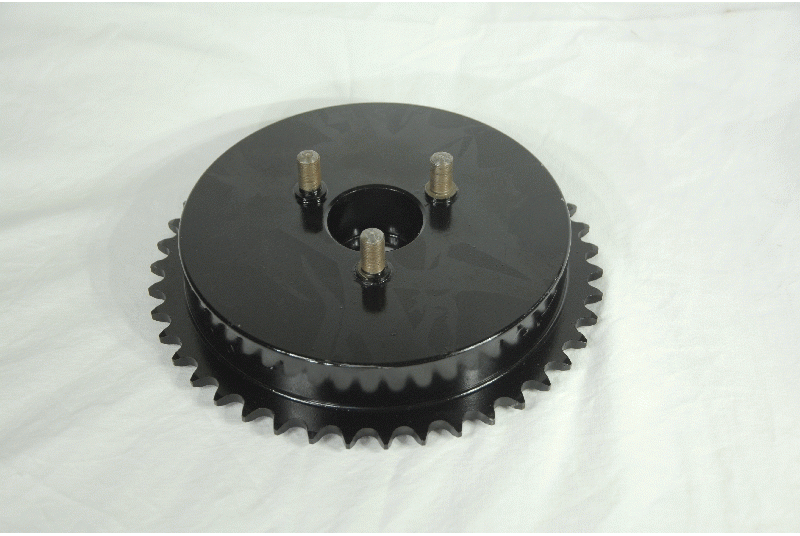

Norton Rear Brake Drum /
Sprocket 5/8 x 1/4 Chain Size, 42 Teeth
Replica ( British Made)
fits Models 16H, Big Four. Mod.18 etc.
Norton Part No. 9518 and A2/463

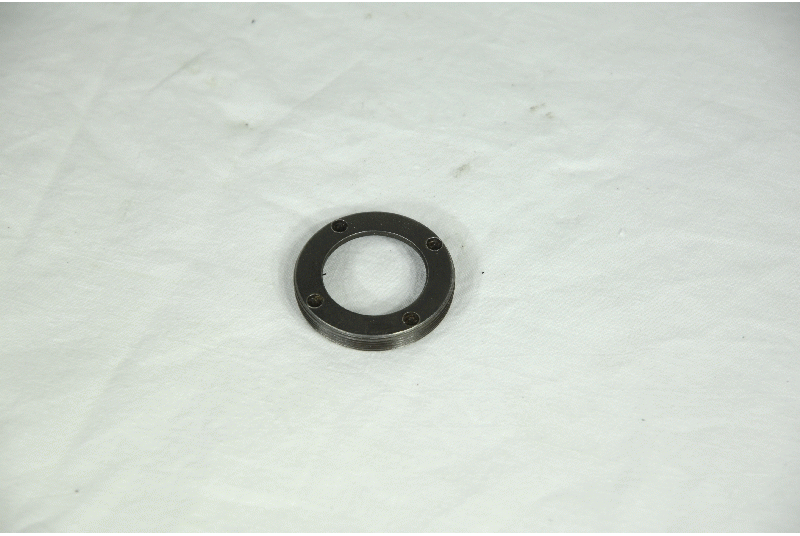

Norton
Brake Hub Bearing locking Ring
Genuine NOS
fits 1934-50 all Models with
Half Hubs, Front or Rear
Norton Part No. 3742 or A2/440
130,00 € 100,00 € 120,00 € each 20,00 €

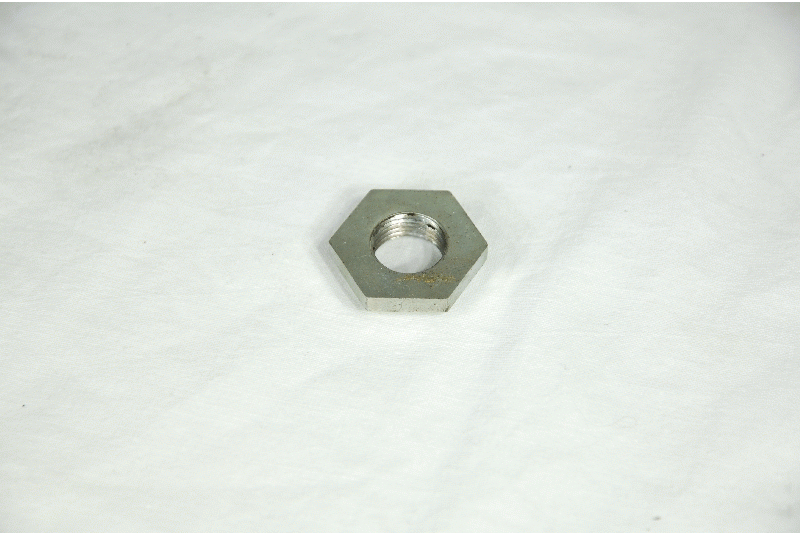

Norton
Front Hub, Brake Plate Locking Nut
Genuine NOS
fits 1936-46 all Girder Fork Models
Norton Part No. 9511
Norton
Front Hub Spindle Distance Piece
Genuine NOS
fits 1936-46 all Girder Fork Models
Norton Part No. 9508

6,00 € 6,00 €
  Fork / Gabel
Top   Menue

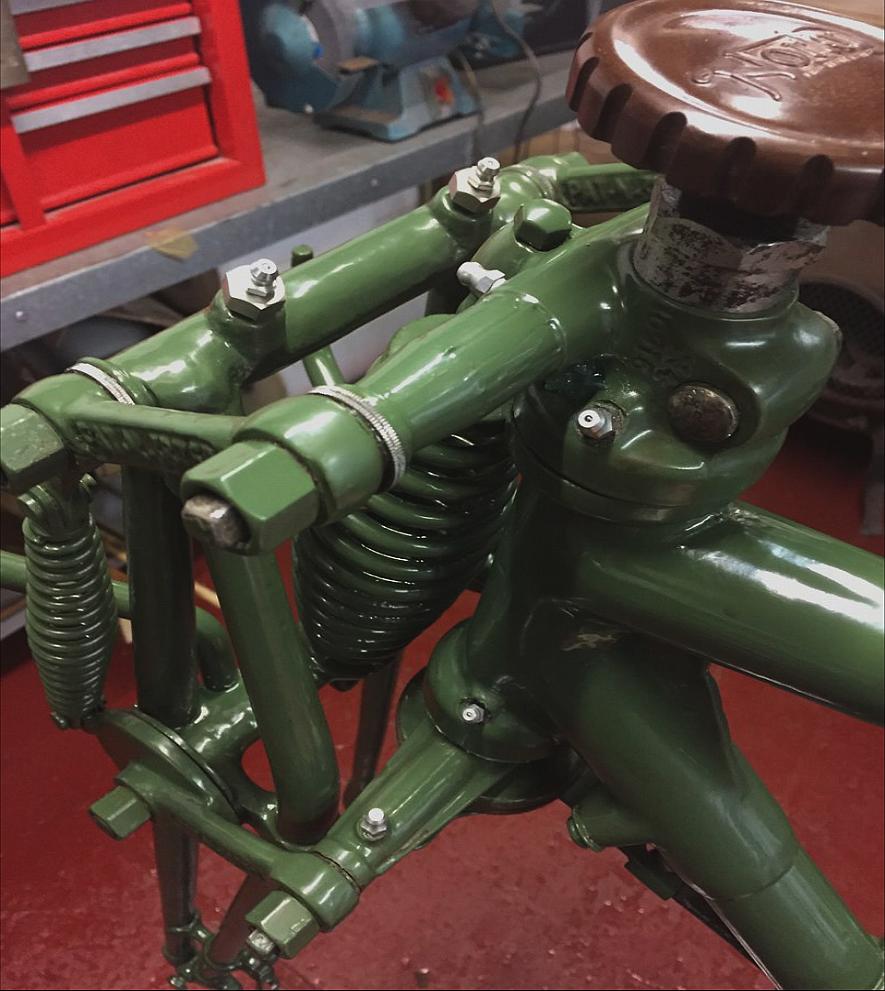

Norton

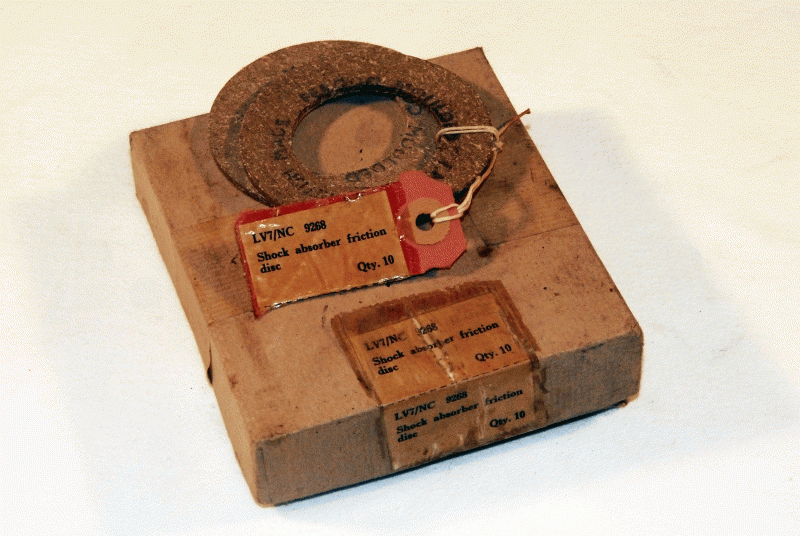

Webb Girder Fork Side Damper Discs
Genuine Norton ( NOS )
fits all Norton with Girder Forks
Part No. 9268
Norton

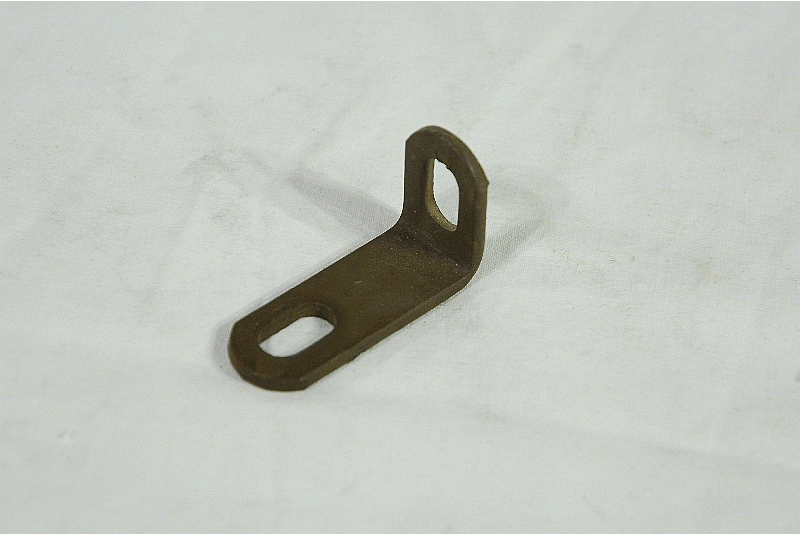

End Clips ( to fit Head Lamp Stay )
( Replica unpainted )
fits Pre War Norton etc.

all Sold
each 8,50 €
Pair 28,00 €
  Sundries / Verschiedenes
Top   Menue
Norton / Lucas

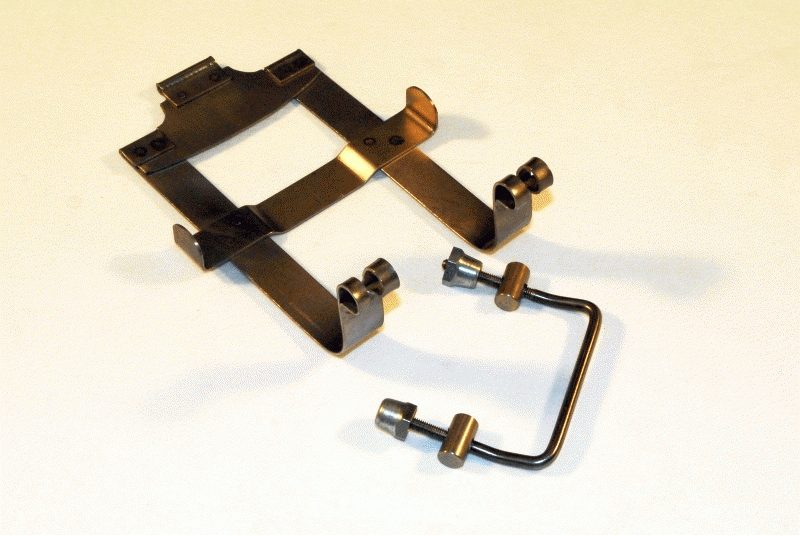

Front Battery Carrier Strap ( 1 )
( Replica )
all Parts unpainted
Top Clip and Nuts ( 2 )
C/W Stainless Steel Trunnions
Lucas Part No. 4188511

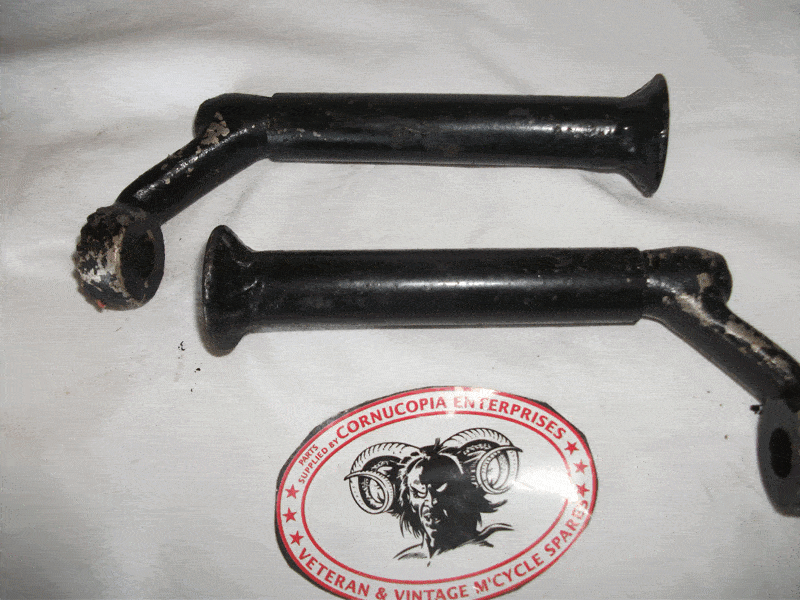

Norton 16H, Big Four
Riders Steel Footrests
Genuine Norton ( NOS ) W.D. War Dep
( Screws into the standard Norton Footrest Hanger )

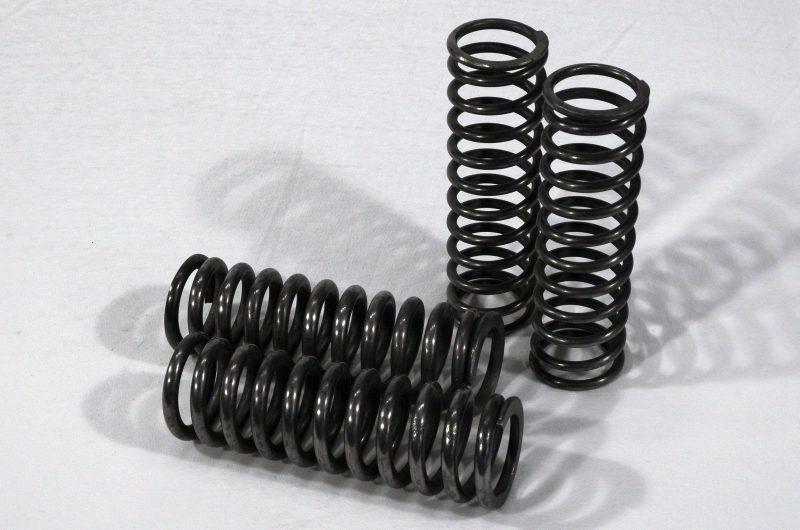

Norton Plunger
Plunger Rear Frame Springs
( Replica )
Set of 4
Fits 1946-51 Norton Plunger Singles and Twins
Norton Part No. B4/764 ( Top )
Norton Part No. B4/677 ( Bottom )
Norton

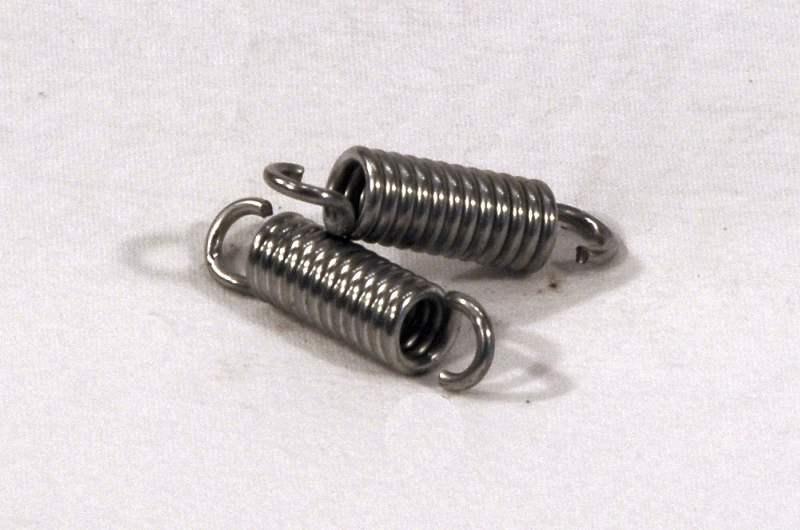

Brake Shoe Springs
( Replica )
Fits 1936-70 all Models
Norton Part No. 9502 and A27/446
(1) 32,00 €
(2) 25,00 €
Pair 24,00 € 69,00 € Pair 12,50 €

Smiths Chrome Glass Rim
( Free Standing ) Smiths Rev Counter or Speedo
( Replica )
Norton
Rear Brake Lever Arm Return Spring
( Replica )
fits 1936-56 16H, ES2, all Models
Norton Part No. 9525 and A2/470
Norton
Petrol Tank Fixing Bolts 5/16 X 18 Whit Thread
Replica
fits 1936-50 16H, Big Four, Mod 18
Norton Part No. 3733
Norton
Front Mudguard Stay / Stand
Replica unpainted
fits 1936-56 all Girder Fork Models,
also Tele Roadholder Fork Models
Norton Part No. 9615
16,80 € 17,00 € Set of four 29,00 € 48,00 €

Norton 16H
Vokes Tubular Air Filter Brass Lable
Replica
fits Military Petrol Tank
Norton

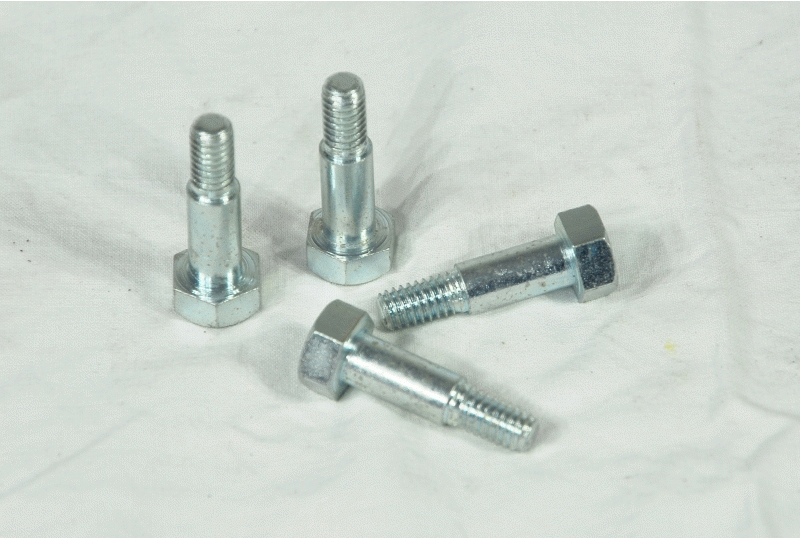

Rear Stand Bolts
Genuine NOS
includes Nuts Replica
fit all Rigid Frame Models
Norton Part No. 9613

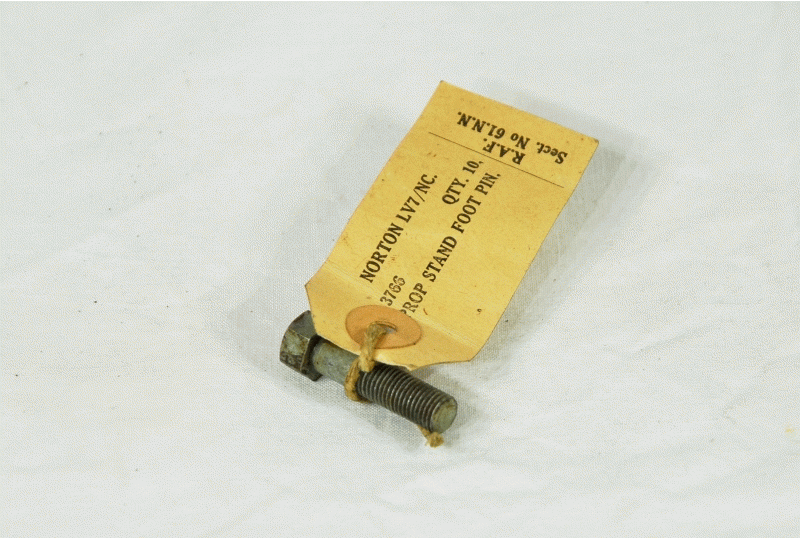

Norton
Prop Stand Foot Pin Bolt
Genuine NOS
Size 1.3/16 X 5/16
( many Applications on W.D. Nortons )
Norton Part No 3766
Norton

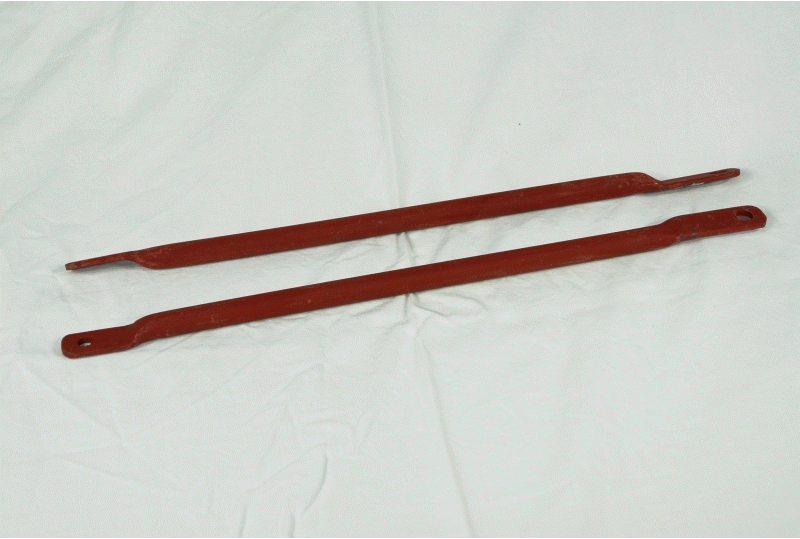

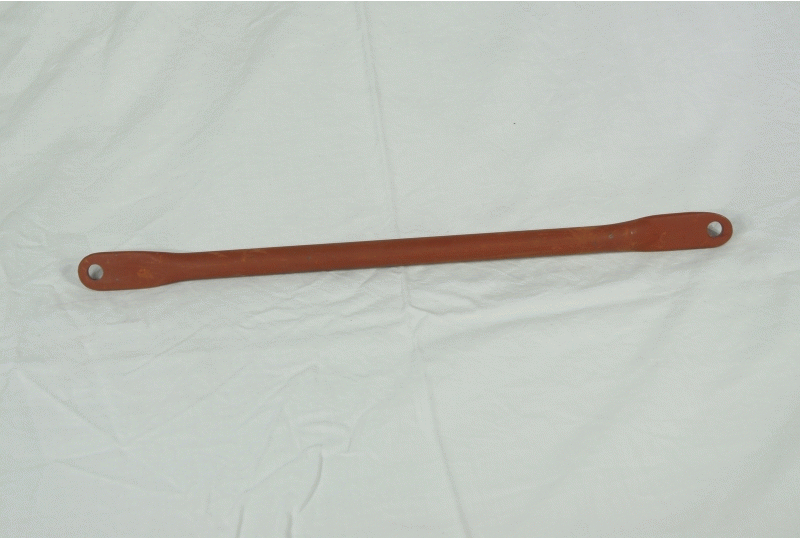

Rear Mudguard Stays
Replica
1936-50 16H, Big Four, ES2 etc.
Models with Rigid Frames
( Two Needed )
Norton Part No. 9597
12,00 € Pair 30,00 € each 5,00 € Pair 32,00 €

Norton
Front Mudguard Stays
Replica
fits 1936-50 16H, Big Four, ES2 etc.
Models with Rigid Frames
( Two Needed )
Norton Part No. 9583
Norton
Exhaust Pipe Front Bolt
( 7/16 in Diam x 20 Threads Per Inch )
Genuine NOS
Norton Part No. 3756
Norton
Exhaust Pipe attachment Rear Bolt
( 3/8 in x 26 Threads Per Inch )
Genuine NOS
Norton Part No. 9243
Norton

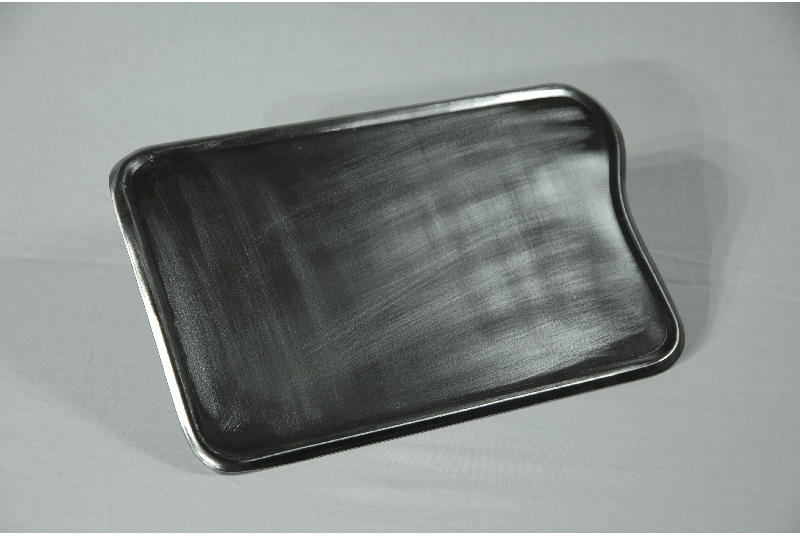

Rear Number Plate
Replica unpainted
fits 1930s onwards all Models
Norton Part No. A2/532
Pair 32,00 € 16,00 € 16,50 € 60,00 €

Norton
Footrest Tube Left Hand
Genuine NOS
Norton Part No. 3831
Norton

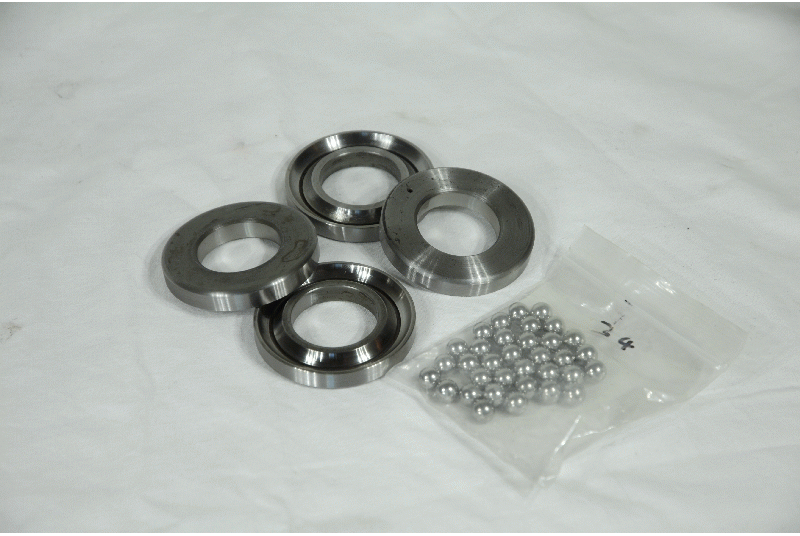

Steering Head Bearing Set
( Four Bearings inc Ball bearings )
Replica British Made
( only sold as a set )
each one
Norton Part No. 9258 Top Clip Ball Race
Norton Part No. 9256 Steering Crown and Column Ball Race
Norton Part No. 9579 Frame Head Race Top
Norton Part No. 9580 Frame Head Race Bottom
Norton
Rear Stand Spring
Replica
Norton Part No. 9614
Norton

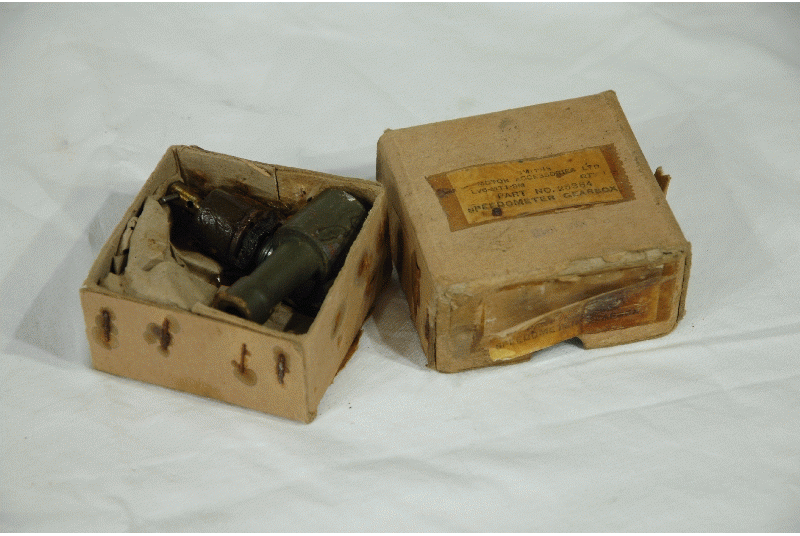

Smiths Speedo Drive Gearbox
Genuine NOS
60,00 € 120,00 € 18,50 € all Sold
100,00 €

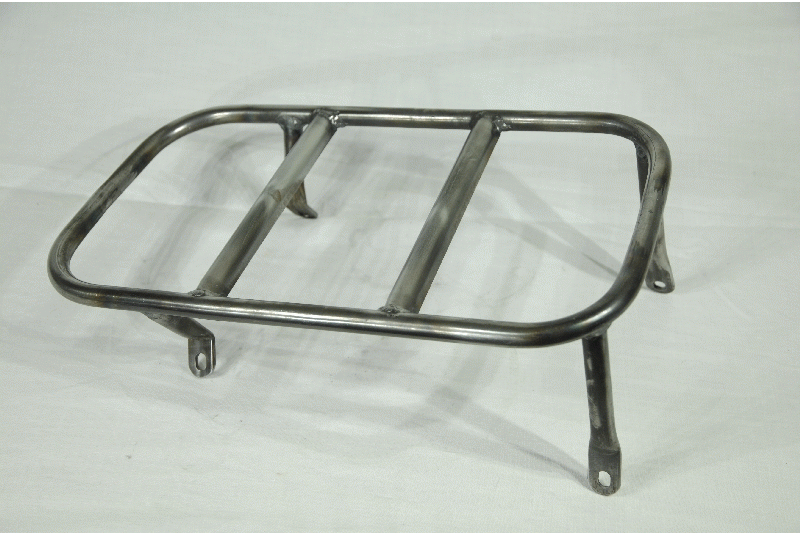

Norton
Rear Carrier
Replica
Unpainted
fits Pre War Models 16H, Big Four, 18 / 19
Norton Part No. 3806

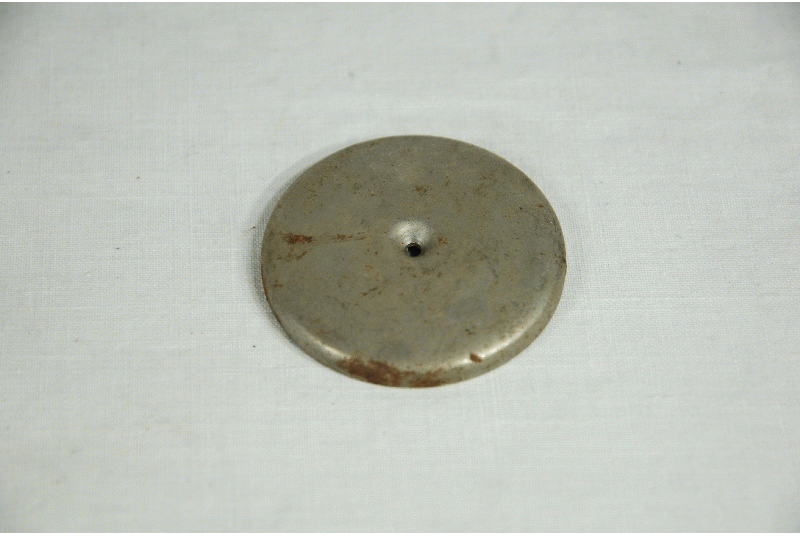

Norton
Primary Chaincase Inspection Disc.
Genuine NOS
fits all Models
Norton Part No. 9542
Norton

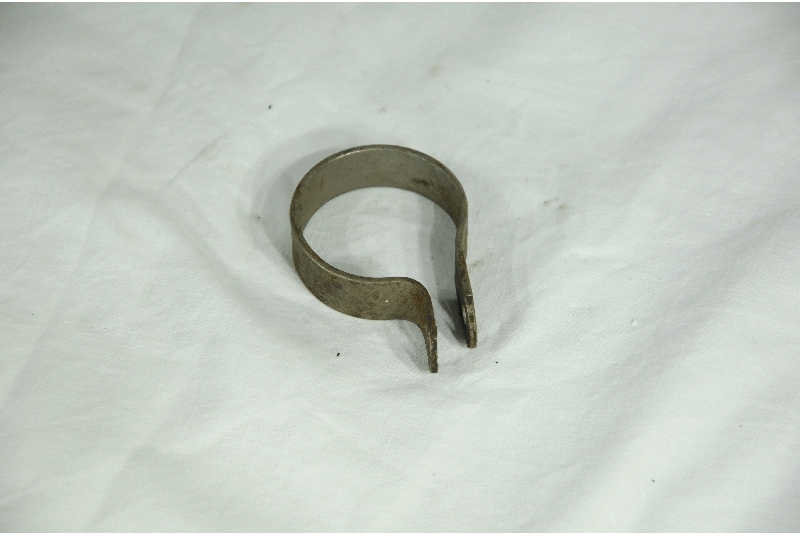

Exhaust Pipe Clip
( Holds Pipe to Engine Bolt )
Replica fits 16H 500cc SV Models
Norton Part No. 3520
Norton
Oil Tank Top Attachment Clip
Original NOS
fits 1938-50 most Models
Norton Part No. 3590
140,00 € 16,00 € 16,00 € Sold
12,00 €

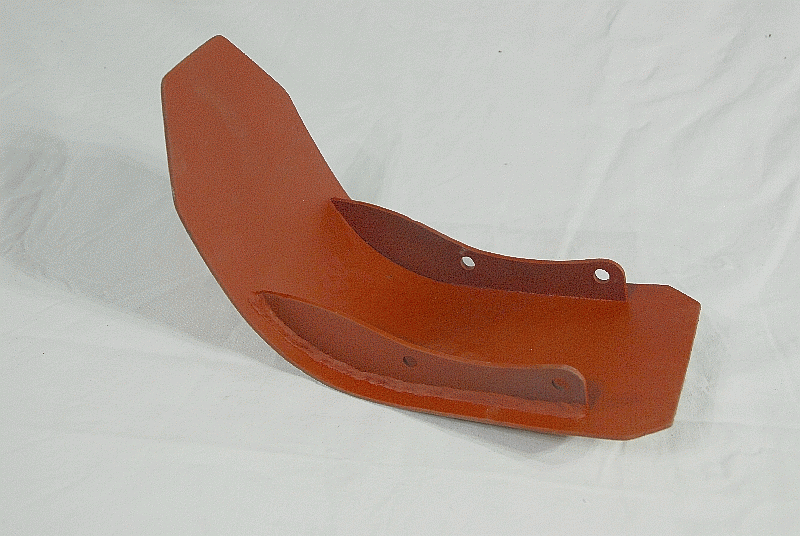

Norton
Sump Guard
Genuine ( Used )
Bead Blasted + Primer Coat
fits 1940-46 War Dept Models 16H and Big Four Models
Norton Part No. 3858
Norton
Air Filter
Replica
includes 3 Filters
fits Amal 276 Carbs
complete Air Filter
will also fit Belgium Motorcycles Sarolea, & Gillet, fitted with Amal Carbs.
Norton

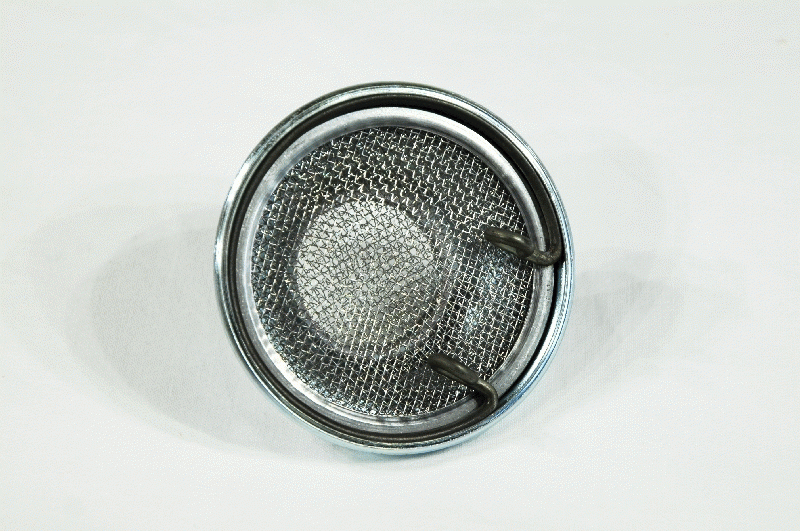

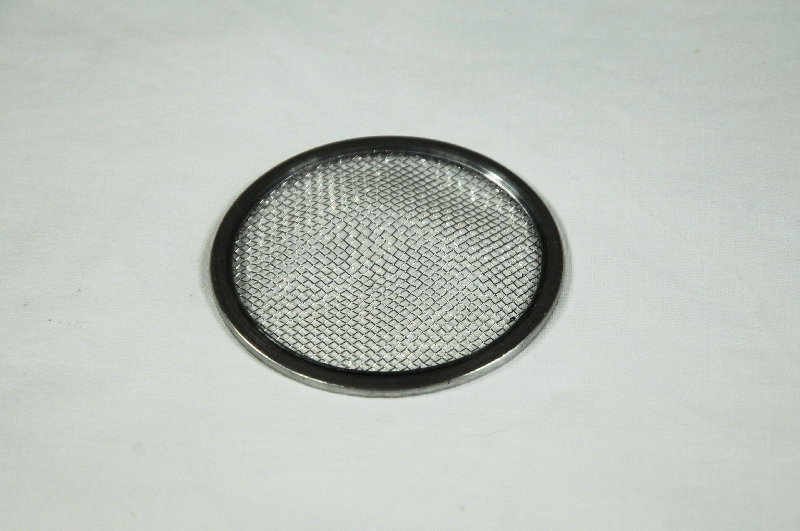

Filters for Air Filter
Replica
includes 3 Filters
fits Amal 276 Carbs
( 1 ) Filters Stainless with Outside Ring
( 2 ) Filters Stainless without Ring
will also fit Belgium Motorcycles Sarolea, & Gillet, fitted with Amal Carbs.
Norton
Wire Clip for Air Filter
Replica
fits Amal 276 Carbs
will also fit Belgium Motorcycles Sarolea, & Gillet, fitted with Amal Carbs.
70,00 € 45,00 € ( 1 ) each 7,00 €
( 2 ) each 2,00 €
9,00 €

Norton
Pillion Foot Rests
Genuine used
long Type with End Stops,
includes genuine Fixing Bolts and Nuts
for Restoration
fits W.D. 16H, Big Four
Norton Part No. 3864
Norton
Volks Desert Air Filter
Replica + Fittings
( A Cornucopia Product )
fits on BSA M20 / Norton 16H / Etc Military Models

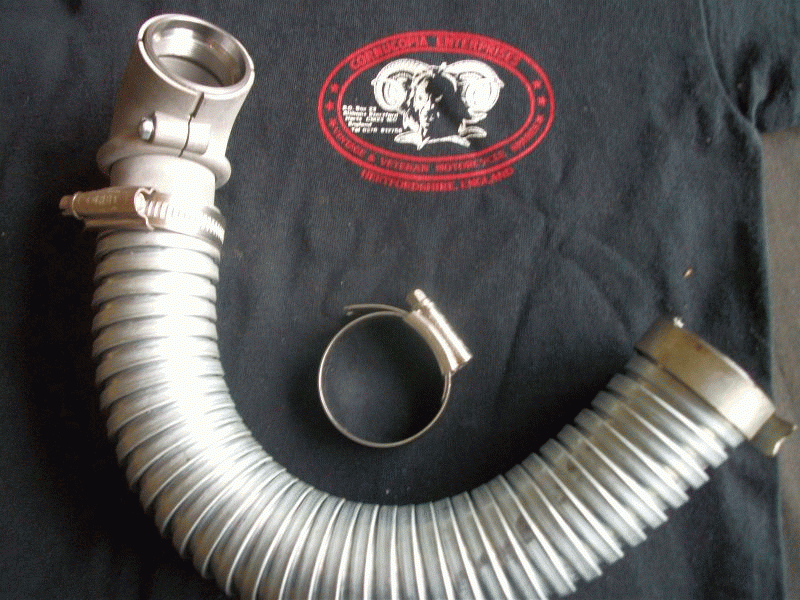

Norton
Volks Desert Air Filter +
Carb Connector +
Pipe & fittings
Replica
fits BSA M20, Ariel WNG, Norton 16H

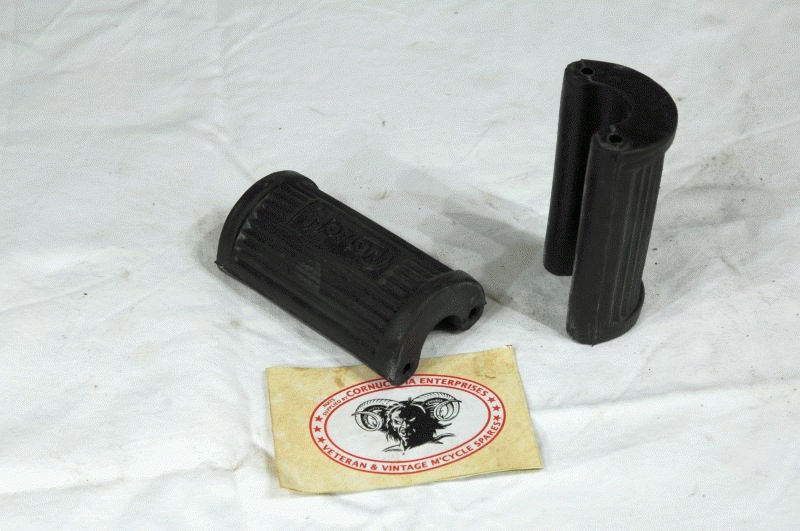

Norton
Riders Footrest Rubbers
Replica
with Script or Plain ( no Script )
Please note, the Foot Rest Rubber, Frame + Fixing Spindel can be used on many 1920s 30s Motorcycles. Same size !
all used Pair Sold
70,00 €
Replica Black Pair 40,00 €
480,00 € 300,00 € ( 1 ) each 16,00 €
( 2 ) each 6.00 €
( 3 ) each 2,00 €
( 4 ) each 4,50 € ( Four Needed )
( 5 ) Pair 24,00 €

Norton
Riders Footrest Rubbers
Replica
with Script or Plain ( no Script )
Please note, the Foot Rest Rubber, Frame + Fixing Spindel can be used on many 1920s 30s Motorcycles. Same size !
Norton
Toolbox WD 1940
Norton NOS ( very rare )
for Restoration
( less Lid Knob )
fits as a Pair R/H & L/H to 1940 Models Contract No V. 7353 (QTY 17.000 )
Previous Contract No. C. 6653 ( QTY 4.000 )
also fitted the same Tool Box
one only L/H in Stock
Amal
Carburettor 276/AE/1BE
Genuine Amal ( used )
Standard Upright Float Chamber, 6/4 Slide, one Inch Bore.
Slide / Body Wear 50%
for Restoration
fits 1940-45 Norton 16H War Dept
Amal
Carburettor 276/AE/1BE
Genuine Amal ( used )
Standard Upright F. Chamber 6/4 Slide, one Inch Bore
Slide / Body Wear good Condition
for Restoration
fits 1940-45 Norton 16H War Dept
28,00 € 120,00 € 120,00 € 180,00 €

Norton
Replica
Knee Rubbers (With Steel Insert)
Not made in India.
Fits 16H , ES2 Etc. Fits Ridgid + Plunger Models
Gearbox Main Axel Free Pinion 9676 Gear
(BUSH)
GENUINE NORTON NOS
Gear Bush to Fit 9676 Gear
Norton Girder Fork Top Links.
Genuine Norton NOS
Pt No 3192
(Left Hand Side)
Genuine Hoffman Brass cage
M117L Roller Bearing,
40mm x 17mm x12mm.
For Norton Dolls Head Gearbox
Pt Nr 9668 +Upright, & Laydown Norton Gearbox.
From 1930s to 1950s 16H, Big four, ES2, Inter + Mod 7 Dommie Twins. Fits on Mainshaft.
Pair 40,00 € 12,00 € 120.00 €, Used 80.00 € 70.00 €

Norton Layshaft Ball Bearing, ( British Made) Pt Nr 9667. Fits 16H, ES2 B. Four, Inter, etc. ( For end outer Cover) 40mm x 17mm x 12mm. Fits Dolls Head, Upright, & Laydown Norto Gearbox Norton Mainshaft, Genuine.
(Used)
Pt Nr 3319 Good Condition, Little Wear. Fits Dolls Head, Upright, Laydown G. Box.
Genuine Norton Gearbox Cover
(Used)
Pt Nr 3592,
Complete with Pawl Carrier Pt Nr 3633, + all Fittings.
Gear Change Shaft Spline good. + Pt Nr 3621 Control Cover,
K. Start Shaft Bush. For Restoration.
Amal Pair, Genuine (R. Hand & L. Hand)
One inch Dia Levers.
(Used)
For Restoration.
Includes Mag & Air Levers.
Fitted to Various 1930s Machines
(Please Note also stocked the Special Stepped fixing Screws for the Clamps, Replica.)
30.00 € 120.00 € 210.00 € Pair 150.00 €

Amal Left hand 7/8 = 22mm Dia,
Clutch Lever Assy,
(For Restoration)
Fitted with Amal R. Hand Air Lever!
Fitted to various 1930s Machines
Norton Dolls Head Gearbox
Control Cover Pt Nr 3621 NOS.
Fits 16H, B.Four, ES2 + International Models
75.00 € 60.00 €
  Electric / Elektrik
Top   Menue
Norton
Genuine Lucas Points Assy ( NOS )
fits all Nortons fitted with MSL1 Magneto
Norton 1936 350cc, 490cc and 596cc
Lucas Part No. 470533
Lucas Part No. 470542

Also fitted to the following Motorcycles fitted with MSL1 Magneto
1936 BSA Y13 V-Twin
1936 BSA 498cc
1936 Norton 350cc, 490cc and 596cc
1936-39 Ariel 600cc
1936-39,1946-48 Ariel Square Fours
1936 Brough Superior SS100 V-Twin
1947-50 Douglas 350cc Twin
1936 Royal Enfield 350ccSV and 570cc SV
1938 Royal Enfield 600cc OHV Twin
1936 O.K.Supream Mag Dyno Models
1937-48 Scott Twin Cylinder
1946-47 Vincent HRD V. Twin
1948 Zenith V.Twin
Norton 16H
Magneto Chain ( NOS ), Renold 42 Links
Fits 16H, Big Fours up to 1950
Norton Twin Models 1950 to 1966
Dominators 77, 88 1958 to 1968
600cc Twins ( Contact Breaker or Magneto Models )
Atlas Twins 650cc
Commando 750cc to 1968 MK1, MK11, P.11A Ranger, G15, CS
Renold Part No. 11037
Lucas
Dummy Battery Case T. Shape ( Plastic )
Replica British Made
6 3/4 Inch x 3 1/2 Inch x 6 3/8 Inch ( High )
( Customer supplies and fits own Battery inside case )
fits to many 1930- 46 Models
Clips to fit lid
Drill two holes under T. Section
Push in wire ends
Lucas
Magneto Slip Ring
Genuine NOS
fits 1937-53 all Single Cylinder
Mag/Dyno Units, Models N1, MSL1,MO1/L
M20 / WNG, 16H, 3HW
Lucas Part No. 454496, 452467, 454495
70,00 € 14,00 € Case 50,00 €
Clips Pair 35,00 €
30,00 €

Lucas
Switch Knob ( Handle )
Genuine
fits Lucas Head Lamp Switch Pt No U39, 31340 A
fits 1936-57 all 6 / 7 Inch Lucas H.Lamps
Lucas Part No. 351567
Norton
Military H.Lamp Switch + Fixing Clip
Genuine NOS
( used together with Convoy Rear Lamp )
has extra T. Position, for the Tail Lamp
Lucas Part No. MT3/LU/351590
Lucas
MT110 Rear Lamp
Replica
( NOT MADE IN INDIA, A Cornucopia Product )
Lucas
Convoy Tail Lamp
Genuine, used
for Restoration
( without Part Nos. )
limited Stocks
9,00 € 100,00 € 105,00 € Sold
80,00 €
  Customer Norton Singles Bikes
Top   Menue
Norton 500cc SV 16H 1941 Restoration by Steve LIoyd from Bolton Lancs England. Looks to good to go on the road ! Even better that our Polish friends Restorations !!
Found by chance at my daughters horse Livery Stable 2016 Machine not often found, with all genuine Parts, Engine, Gearbox in unbelievable good Condition, Standard Bore Size, started to dismantle Nov 2016, came apart effortlessly, some Damage on Fork Parts, Restoration so far June 2017.
( Many Parts supplied by Cornucopia-Enterprises )




  Steve Lloyd seems to advanced on his Norton 16H ( Attention to Detail or what !)
You may wonder, About the oil pipes feeding into the Tool Box !
Inside is a modern screw on type Oil Filter

Norton 1941 16H 500cc SV
Owner Martin Hunt, a good original example.
Belonged to Martins Father, Martin a Englishman lives in Germany since 1995.


Rear Carrier, Footrests, Batterie Carrier supplied By Cornucopia Enterprises

Martins Father worked for K.L.M Motors Ltd Coulsdon ( Owner founder Ernest Knight ) He was at School with the son of Dennis Knight. He of the wonderfull activity books, loved by so many Children. Martins Father had a good collection of vintage motorcycles, Standing next to a very early F.N. he restored, at the London to Brighton Rally late 1950s

A Motosaccoche, year model unknown ( Pre 1914 )

Martin on his Fathers Douglas 1948 Mark 3

A nice Restoration of the rare 1940 5SW.
Owner John Moore Lancashire, England.
Produced after Dunkirk to replenish Stocks left in France, and due to bombing Raids on the Triumph Factory.
Only one Contract of 1330 Machines were produced, very few survive today.
Photo taken at the Coastal Battery on Sword Beach France.

Another perfect Restoration of a 5SW, Type with the rare pressed Steel Carrier.

Next Project is a 3HW fitted with a complete NOS Engine.


Both Bikes restored by John Moore, he has a wonderfull Collection of WD Triumphs.
( many Parts supplied by Cornucopia

Another perfect Restoration from John Moore
Norton 1941 Big 4 633cc SV.
