BSA L28 OHV 1928
L , H , S , SS
1924-30
Spares / BSA Ersatzteile
All Parts + Post/Packing + (19%) VAT
Payment with C.Card (+6%)
or PayPal (+ our Charge)
or Bank Transfer
click pictures to enlarge

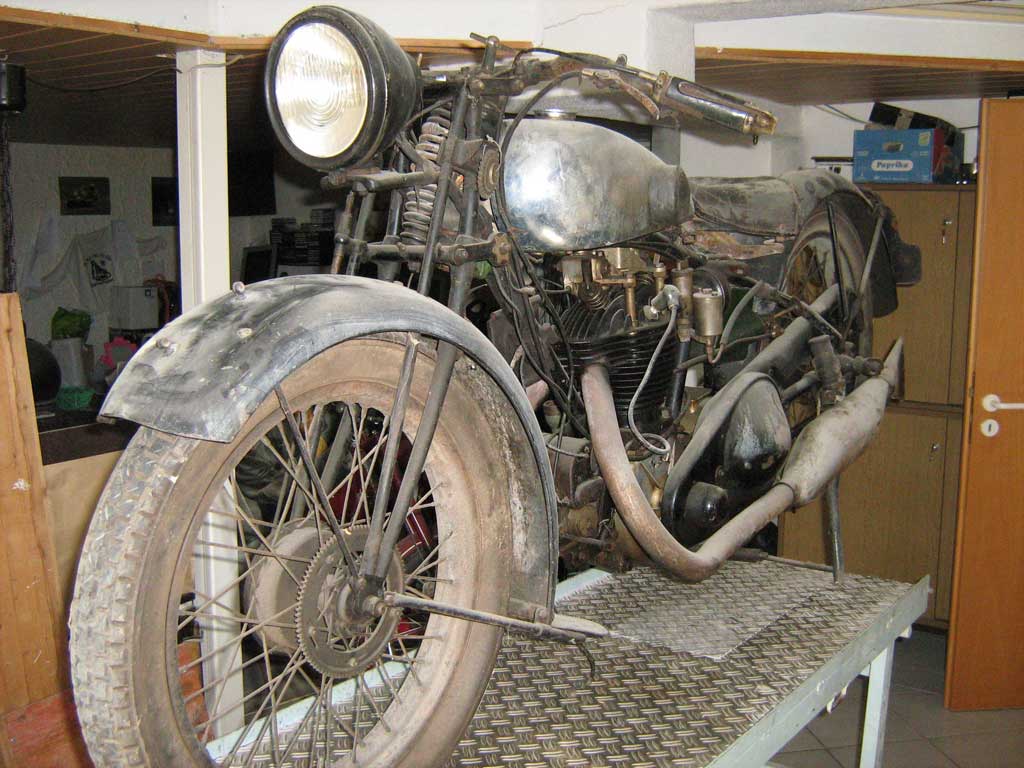

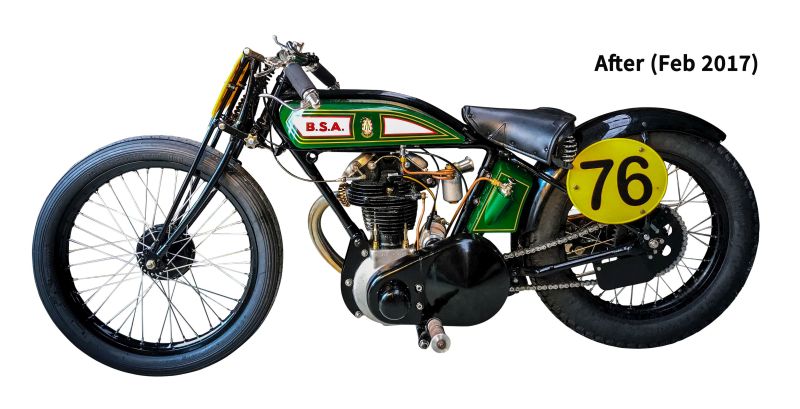

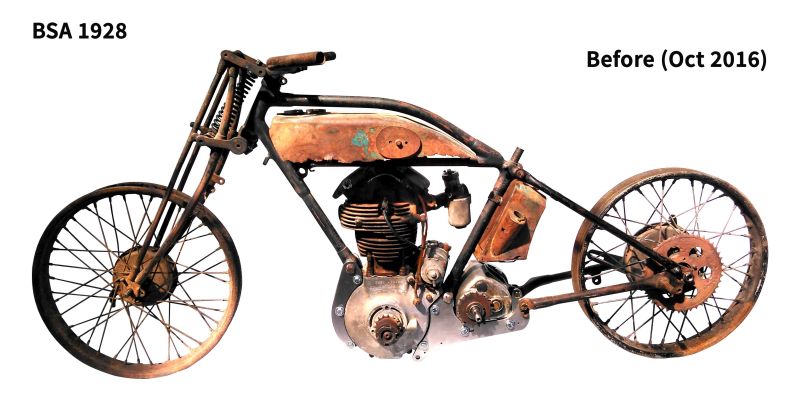

BSA L28 SS OHV 1928
BSA S28 1928
BSA H28 1928
 click |
BSA L28 OHV 1928 |
BSA Model L , H , S , SS 1924-30 Spares / BSA Ersatzteile All Parts + Post/Packing + (19%) VAT Payment with C.Card (+6%) or PayPal (+ our Charge) or Bank Transfer click pictures to enlarge |
BSA L28 SS OHV 1928 |
||
BSA S28 1928 |
BSA H28 1928 |
|||
| click |
| Valves / Ventile | Engine / Motor | Clutch , Gearbox / Kupplung , Getriebe | Wheels / Räder | Fork / Gabel | Stands , Stays / Ständer , Streben | Sundries / Verschiedenes | Electric / Elektrik |
| Valves / Ventile Top Menue |
|||||
 |
|||||
| BSA Valve Exhaust Material British Made NOS from the 1950s Groove Cotter Recess Head Dia 49mm, Shaft 8,7mm, total Length 117mm ideal for Machining ( I.E. JAP Motors, BSA etc. ) |
|||||
| each 15,00 € | |||||
| Engine / Motor Top Menue |
|||||
 |
 |
 |
 |
||

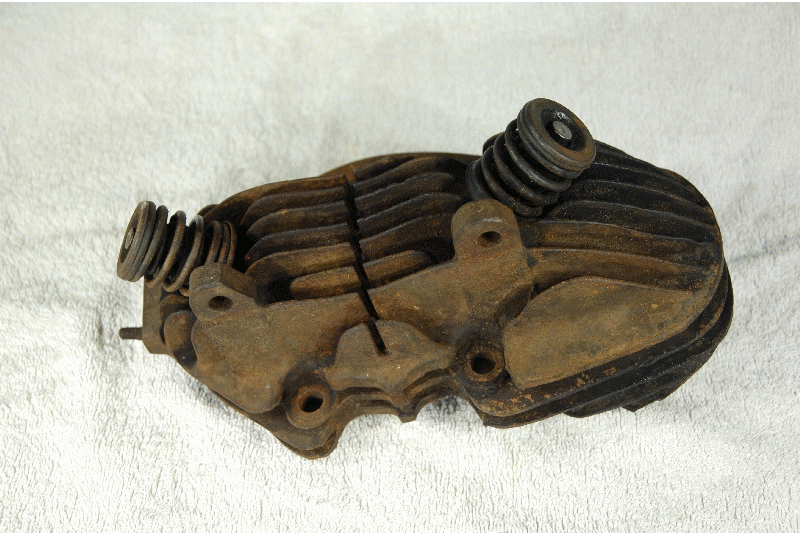

| BSA Cylinder Head Twin Port Genuine( used ) for Restoration C/W Valves etc. ( few chipped Fins around Spark Plug + two more) fits 1930 S30-19 500cc OHV Light BSA Part No. 24-1141, 24-1142 |

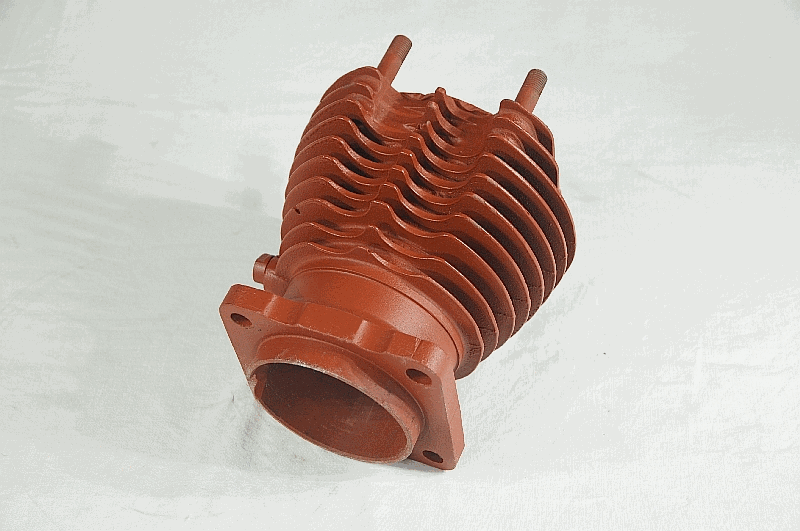

BSA Cylinder Genuine ( used ) for Restoration ( Two Small Chips out of the top Fin ) Bead Blasted, Primer Coat Standard Bore Size 80mm, now on 83.5mm, will need new Sleeve fitted. fits 1928 4.93 OHV Light Two Port, 1930 4.93 OHV S30-19 Light BSA Part No. 24-1161 |
BSA Genuine Sloper Rocker Box used Rocker surface good, includes Valve Lifter Complete, for Restoration ( Thread on valve lifter Cable Boss damaged ) fits 1929 Models 4.93 OHV Light Two & Single Port 1930 4.93 OHV S30-12-13 De Luxe, 4.93 OHV S30-19 Light 1931 4.93 OHV S31-8-9 1932 4.93 OHV De Luxe S32-8 BSA Part No. 24-516 |
BSA Rocker Box Support Sleeve Genuine ( Used ) Zink Plated fits 1930 ( + other Years ) Models OHV 500cc, S30-12-13-19, etc. BSA Part No. 24-480 |
||
| Sold 300,00 € |
280,00 € | Sold 400,00 € |
Sold Pair 60,00 € |
||
| Clutch , Gearbox / Kupplung , Getriebe Top Menue |
|||||
 |
 |
||||
| BSA Gearbox Clutch Driven Plate ( Replica ) ( A Cornucopia Product ) Fits various BSA Models 1914-23 3 1/2 HP, 2.3/4 HP 1924 2 3/4 HP SV and OHV, 3 1/2 HP 1925 3.49 HP SV OHV L25, 4.93HP S25 1926 3.49 HP SV and OHV L26, 4.93 HP S26 1927-28 ( 3 Speed ) 3.49 HP SV and OHV L27, 3.49 HP Super S27, 4.93 HP Standard 1929 ( 3 speed ) 3.49 HP SV, 3.49 HP OHV Standard, 3.49 HP OHV 2 Port Super, 4.93 HP, 5.57 HP Standard 1930 ( 3 Speed ) 2.49 SV B30-3-4, 3.49 SV L30-5, 3.49 Comm L30-6, 3.49 OHV L30-11, 4.93 SV S30-7, 5.57 SV H30-8, 4.93 SV Light S30-18 1931 ( 3 Speed ) 2.49 OHV B31-2-3, 3.49 SV L 31-4-5-6, 4.93 SV S31-7 1932 ( 3 Speed ) fits all Models, EXCEPT 4.93 OHV Deluxe S32-8, 5.57 SV Deluxe H32-9, 9.86 G32 V-Twin 1932 ( 4 Speed ) 3.49 SV Deluxe L32-4, 3.49 OHV Deluxe Blue Star L32-5, 4.99 SV W32-6, 4.99 OHV Blue Star W32-7 1933 ( 3 Speed ) 4.99 SV W.33-6 ( 4 Speed ) 2.49 OHV Blue Star Junior B33-3, 3.48 OHV R33-4-5, 4.99 SV W33-6, 4.99 OHV W33-7, 4.99 OHV Blue Star W33-8, Special W33-9 1934 ( 4 Speed ) fits all Models EXCEPT M34-12-13, G34-14, X34-0, B34-1-2 1935 ( 4 Speed ) 2.49 OHV Deluxe B35-3, 3.48 OHV Deluxe R35-4, 3.48 OHV Blue Star R35-5, TP R35-17, 4.99 SV W35-6, 4.99 OHV W35-7-8-9, 4.98,OHV J35-12 V-Twin 1936 ( 3 Speed ) 2.49 OHV B2 ( 4 Speed ) 2.49 OHV Light Deluxe B18, 2.49 OHV Deluxe B3, 3.48 OHV Deluxe R4, 3.48 OHV Comp R19, 3.48 OHV SP R17, 3.48 OHV Blue Star R20, 3.48 OHV Empire Star R5, 4.99 SV W6, 4.96 OHV Q7, 4.96 OHV Blue Star Q21, 4.96 OHV Empire Star Q8, 4.98 OHV J12 V-Twin 1937 ( 4 speed) fits all Models EXCEPT 2.49 SV B33-1-2 1, 5.95 SV Deluxe M33-10-11, G33-13 ( Two per Clutch needed ) BSA Part No. 15-296 |
BSA Gearbox Clutch Sleeve Plate ( Replica ) ( A Cornucopia Product ) Fits various BSA Models 1914-23 3 1/2 HP, 2.3/4 HP 1924 2 3/4 HP SV and OHV, 3 1/2 HP 1925 3.49 HP SV OHV L25, 4.93HP S25 1926 3.49 HP SV and OHV L26, 4.93 HP S26 1927-28 ( 3 Speed ) 3.49 HP SV and OHV L27, 3.49 HP Super S27, 4.93 HP Standard 1929 ( 3 speed ) 3.49 HP SV, 3.49 HP OHV Standard, 3.49 HP OHV 2 Port Super, 4.93 HP, 5.57 HP Standard 1930 ( 3 Speed ) 2.49 SV B30-3-4, 3.49 SV L30-5, 3.49 Comm L30-6, 3.49 OHV L30-11, 4.93 SV S30-7, 5.57 SV H30-8, 4.93 SV Light S30-18 1931 ( 3 Speed ) 2.49 OHV B31-2-3, 3.49 SV L 31-4-5-6, 4.93 SV S31-7 1932 ( 3 Speed ) fits all Models, EXCEPT 4.93 OHV Deluxe S32-8, 5.57 SV Deluxe H32-9, 9.86 G32 V-Twin 1932 ( 4 Speed ) 3.49 SV Deluxe L32-4, 3.49 OHV Deluxe Blue Star L32-5, 4.99 SV W32-6, 4.99 OHV Blue Star W32-7 1933 ( 3 Speed ) 4.99 SV W.33-6 ( 4 Speed ) 2.49 OHV Blue Star Junior B33-3, 3.48 OHV R33-4-5, 4.99 SV W33-6, 4.99 OHV W33-7, 4.99 OHV Blue Star W33-8, Special W33-9 1934 ( 4 Speed ) fits all Models EXCEPT M34-12-13, G34-14, X34-0, B34-1-2 1935 ( 4 Speed ) 2.49 OHV Deluxe B35-3, 3.48 OHV Deluxe R35-4, 3.48 OHV Blue Star R35-5, TP R35-17, 4.99 SV W35-6, 4.99 OHV W35-7-8-9, 4.98,OHV J35-12 V-Twin 1936 ( 4 Speed ) 2.49 OHV Light Deluxe B18, 2.49 OHV Deluxe B3, 3.48 OHV Deluxe R4, 3.48 OHV Comp R19, 3.48 OHV SP R17, 3.48 OHV Blue Star R20, 3.48 OHV Empire Star R5, 4.99 SV W6, 4.96 OHV Q7, 4.96 OHV Blue Star Q21, 4.96 OHV Empire Star Q8, 4.98 OHV J12 V-Twin 1937 ( 3 Speed ) 4.99 SV W33-6 ( 4 speed ) fits all Models EXCEPT 2.49 SV B33-1-2 1, 5.95 SV Deluxe M33-10-11, G33-13 ( One per Clutch needed ) BSA Part No. 15-294 |
||||
| each 22,00 € | each 22,00 € | ||||
 |
 |
 |
 |
||
| BSA L29 and S29 Models Replica BSA Steel Clutch Driving Plate Two needed on 1928 /29 Models Part No. 15-297 |
BSA 1930s Kick Start Springs Replica fits various BSA Models, we have only 4 Types in stock ! ( BSA made many more, others not Available) Spring No. 1 Dia 61.5mm, Width 11mm, 4 Coils, Inside Dia 46mm ( fits BSA B1, B2 250cc Models ) Spring No. 2 Dia 59mm, Width 10mm, 4 Coils Inside Dia 44.5mm Spring No. 3 Dia 56mm, Width 10mm, 5 Coils Inside Dia 37mm ( fits BSA 1920s V-Twins ) |
BSA Gearbox Mainshaft Bearing British Made many NOS fits the following Models Years 1924 all Models except 2.1/4 HP 1925 all Models except 2.49 HP 1926 all Models except 2.49 HP 1927-8 ( 77-4042 ) all Models except 2.49 HP 1929 all Models except 2.49 HP 1930 all Models except B30-3-4, L30-5-6 1931 all Models except B31-1-2-3 & L31-4 1932 all Models except B21-1 + Export + L32-2-3 1933 499 SV W33-6, M33-10, 9.86 SV World Tour G33-13 1934 9.86 SV G34-14 1935 9.86 SV G35-14 BSA Part No. K191 |
BSA Layshaft Bearing British Made many NOS fits the following Models Years 1924 4.1/4 HP 6 HP 8 HP 1925 5.57 HP, 7.70 H.P, 9.86 HP 1926 5.57 HP, 7.70 HP, 9.86 HP 1927-8 7.70 HP De Luxe, 9.86 HP De Luxe, 9.86 Colonial 1929 7.70 HP Light + De Luxe, 9.86 De Luxe + World Tour 1930 9.86 World Tour G30-16 1931 9.86 HP World Tour G31-12 1932 9.86 SV World Tour G32-10 1933 9.86 SV World Tour G33-13 1934 9.86 SV G34-14 1935 9.86 SV G35-14 BSA Part No. K193 |
||
| 5,95 € | ( 1 ) Sold each 18,00 € |
45,00 € | 30,00 € | ||
| Wheels / Räder Top Menue |
|||||
 |
|||||
| BSA Rear Brake, Pedal Return Spring. ( Replica ) Made from Stainless Steel fits Models 1927-28 3.49 H.P. SV OHV and OHV Super, 4.93 H.P. Standard 1929 3.49 H.P. SV OHV Standard, 4.93 H.P. and 5.57 H.P. Standard, 7.70 H.P. Light V-Twin 1930 4.93 H.P. SV Light, S30-18, 4.93 H.P. OHV light S30-19. 7.70 H.P. V-Twin, E30-14, G30-15 V-Twin BSA Part No. 15-699 |
|||||
| 45,00 € | |||||
| Fork / Gabel Top Menue |
|||||
 |
 |
 |
|||
| BSA Replica BSA Steering Head race set complete with set ball bearings fits models 1927/8 Top Bearing all except 2.49 H.P. and 3.49 H.P. Bottom Bearing fits 4.93 H.P, 5.57 H.P., 7.70 H.P. and 9.86 H.P. Frame Bearings not suitable for 1927/8 1929 Top and Bottom Bearning all except 2.49 H.P. Frame Bearing all except 2.49 H.P., de Luxe and 3.49 H.P. SV 1930 except B30-3-4, L30-5-6 1931 S31-7, H31-9-10, E31-11, G31-12 1932-35 except B32-1, L32-2-3, B33-1-2-3, X34-0, B34-1-2, X35-0, B35-3, R35-4 A Cornucopia Product Part No. 25-5112 Fork Top Bearing Part No. 25-5106 Yoke Bearing Part No. 25-5673 Frame Bearings (Two) Only sold in sets of four ( in some cases sold seperatley, depending on stocks ) |

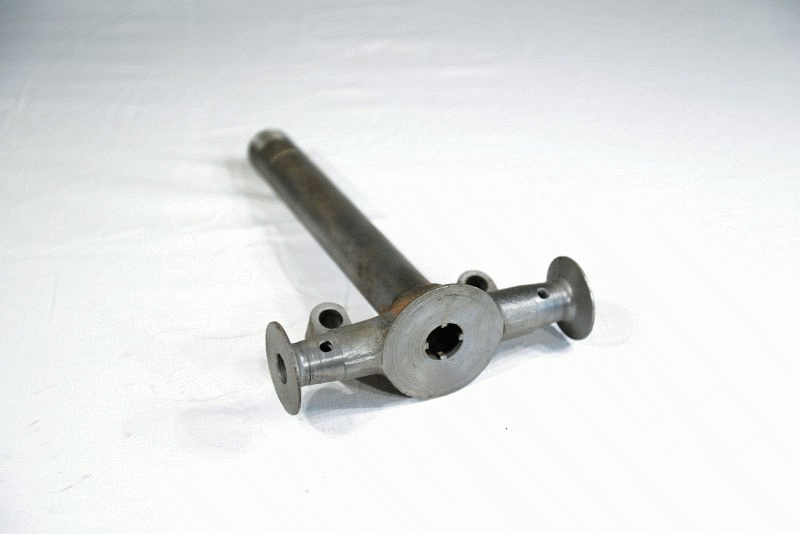

BSA Steering Stem & Yoke Genuine BSA ( used ) Bead Blasted Width 5 3/4 Inch fits 1927-28 Models 3.49 HP, SV & OHV Super & 4.93 HP Standard Models BSA Part No.15-5034 |
BSA Girder Fork Ball Head Clip Yoke ( Top Yoke ) Genuine BSA ( used ) for Restoration 5. 1/2 Inch Wide Bead Blasted, Threads good, takes one Inch H. Bars some slight Rust pitting fits 1930 Models S30-7-8-9, H 30-10, S30-12-13-19 1931 4.93 HP OHV S31-9, 4.93 SV S31-7 BSA Part No. 15-5136 |
|||
| Set + Balls Bearings 180,00 € |
200,00 € | 180,00 | |||
| Stands , Stays / Ständer , Streben Top Menue |
|||||
 |
 |
 |
 |
||

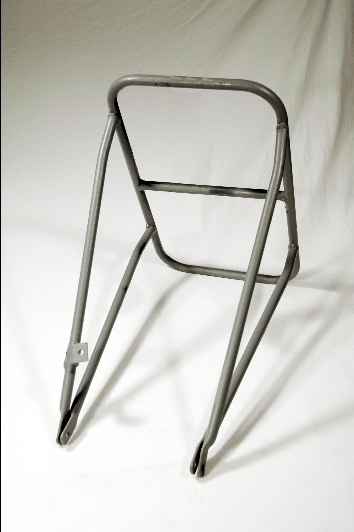

| BSA L29 and S29 Models Replica Carrier ( unpainted ) fits models 1929 L29 Standard 350cc and the 4.93HP S29 Standard SV 1930 Carrier is the same as 1929 (but Part No changes to 27-7483) Due to Fixing Brackets not needed fits Models B30-3 249cc SV; B30-4; L30-5 3.49HP SV; L30-6 NOT MADE IN INDIA A Cornucopia Product 1929 Part No 24-7485 |

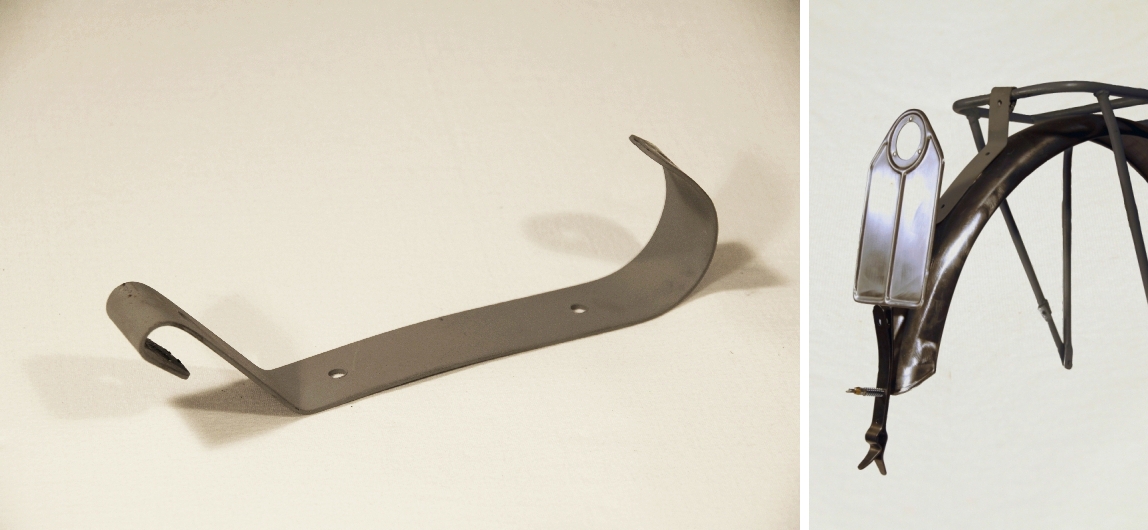

BSA L29 and S29 Models Replica Carrier Strip for Rear Number Plate ( unpainted ) fits models 1929 3.49HP OHV Standard 4.93HP and 5.57HP Standard also fits 7.70 HP Light V.Twin NOT MADE IN INDIA A Cornucopia Product Part No 15-7366 |

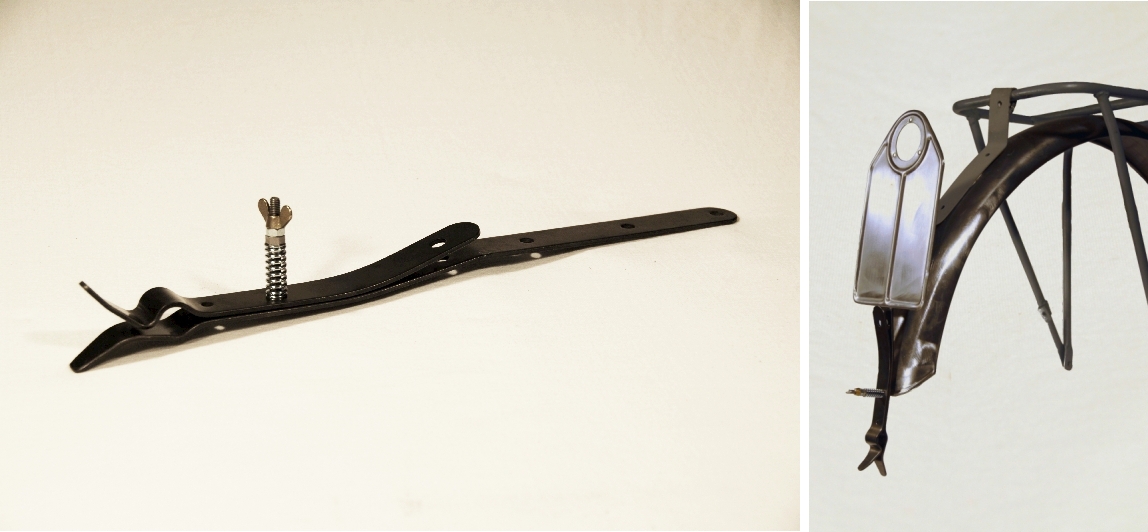

BSA L29 and S29 Models Replica Spring Steel, Rear Stand and no Plate Bracket NOT MADE IN INDIA A Cornucopia Product Part No 15-7346 + Part No 15-7385 |
BSA L29 and S29 Models Replica Rear Number Plate ( unpainted , undrilled ) fits models 1928 all with Mag Dyno Except 249cc 25-7360 Maglita Models 25-7350 are the same as 25-7355 ( Holes for rear Lamp determine Part No. ) 1929 all models NOT MADE IN INDIA A Cornucopia Product Part No 25-7355 |
||
| PLEASE NOTE MUDGUARD SHOWN IST NOT CORRECT BSA; DISPLAY ONLY | |||||
| 130,00 € | 40,00 € | 44,00 € | 50,30 € | ||
 |
 |
||||
| BSA L29 and S29 Models Front Mudguard Stand / Stay ( unpainted ) fits models Models that forks pass through Mudguard 1928 3.49cc SV and OHV + 4.93HP Standard 1929 3.49cc SV and OHV + 4.93HP and 5.57cc HP Standard + 4.93 HP OHV Light 2 Port ( NOT MADE IN INDIA A Cornucopia Product ) Part No 15-452 |
BSA BSA Rear Stand spring 8 inch 3/4 long ( Replica ) fits model 1929 3.49 H.P. OHV, 4.93 H.P., 5.57 H.P. de Luxe, 4.93 H.P. OHV Light 2 Port, 4.93 H.P. OHV single and Twin Port 1930-36 all models except X34-0, X35-0, X-0, B34-1-2; B35-1-2, B1-2, B18 1937-38 Y13. G14 V-twins 1939-40 G14 V-Twins A Cornucopia Product Part No.24-6060 |
||||
| 48,00 € | 32,00 € | ||||
| Sundries / Verschiedenes Top Menue |
|||||
 |
 |
 |
 |
||
| BSA L29 and S29 Models Replica Alloy Timing Cover Sizes 270mm long x 85mm wide undrilled, screw holes 90mm from L.Hand Edge + 90 mm fits models 1922 to 1930 that have the engine crankshaft at 90 degree to the Magneto. also in 1930 the two 500cc Models used this Cover ( the Exception being the 1928 350cc OHV de Lux Model ) Part No 15-62 |

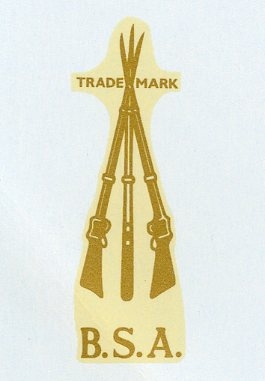

BSA L and S Models Replica BSA Transfer to fit on Rear Stand Clip ( Pilled Arms Gold ) Special Narrow Transfer |
Pillion Seat Replica |
Foot Pump ( Replica ) (fits on Chainguard or Frame ) Spezial Length to fit BSA G14, V-Twins 17 Inchs Painted Brass Construction Various Makes Models, Lengths 13 and 14 Inch in Stock Other Sizes to order |
||
| 35,00 € | 7,00 € | 60,00 € | 60,00 € | ||
 |
 |
 |
 |
||
| BSA Pre War cable Nipple ( 4 Parts ) ( Clutch and Front Brake ) ( Replica ) Fits all Models 1928-46 Part No. 26-9481 Part No. 26-9431 Part No. 25-7151 Part No. 26-9461 |
BSA L28/9 Exhaust Pipe Replica ( unchromed ) fits 1928 L28 350cc OHV Super Sports also Fits Standard L28 Models BSA Part No. 15-1293 Previously Part No. 15-1291 |
BSA Exhaust Pipe Replica unchromed fits 1929 4.93HP OHV Light Twin Port 1930 4.93 OHV Light S30-19 BSA Part No. 24-226 and 24-227 |
BSA Tool Box Spanner Genuine Mounted on Mohogany, Gold Plated BSA Part No. 15-832 |
||
| each 13,00 € | 140,00 € | Pair 230,00 € | 35,00 € | ||
 |
 |
 |
 |
||
| BSA Tool Box Spanner Genuine Gold Plated BSA Part No. 15-832 |
BSA ( 1 ) Speedo Drive, Adjusting Sleeve and Adjusting Sleeve Lock-Nut Replica ( 2 ) Speedometer Drive Gearbox Adjusting Sleeve Clip + Bolt - Nut. Replica fits Pre War Models ( 1 ) BSA Part No. 24-5510 ( 2 ) BSA Part No. 15-6989 |
BSA Speedo Brake Drum Gear and Speedo Gearbox Drive Pinion Replica ( 1 ) Hub Gears 67 or 70 Teeth ( 2 ) Speedo Gearbox Drive Pinion 22 or 23 Teeth |
BSA Rider Foot Rest Rubbers Replica 120 mm Long, Bore 13mm BSA Part No. 15-8155 Cornucopia Part No. 949B1 |
||
| 25,00 € | ( 1 ) 90,00 € ( 2 ) 18,00 € |
( 1 ) each 75,00 € ( 2 ) each 65,00 € |
Pair 40,00 € | ||
 |
 |
 |
 |
||

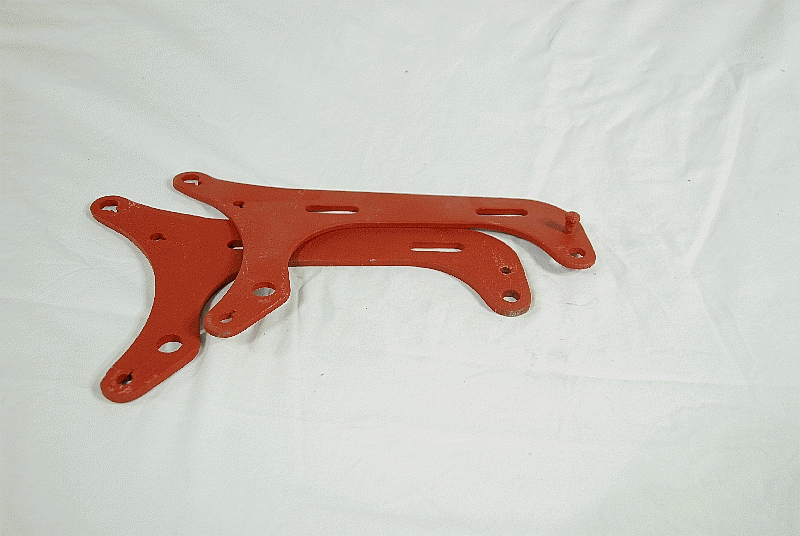

| BSA Rear Engine Yolk Plate ( Right and Left Hand, Pair ) Genuine ( used ) Bead Blasted primer coat fits 1924-26 3.49HP, 4.93HP Models L25, S25, H25, etc. BSA Part No. 24-5598-7, 24-5730- 24-5735 |
BSA Internal Twist Grip Type 51 Amal Genuine NOS fitted with Amac Rubber 1920s Chrome not perfect fits 7/8 = 22mm H. Bars |
Amal Float Chamber to fit Amal 274/5 special Parts to fit Amal Pump Type 1930 Carburettor Genuine Amal ( used ) Brass Float Chamber ( straight ) + Mixing Chamber Nut + Holding Bolt ( Float Chamber to Mixing Chamber) + Needle / Main Jet Holder for Restoration |
Amal Mixing Chanber Nut + Holding Bolt Genuine Amal ( used ) fits 276 Amal Carburettor with Pump for Restoration |
||
| Pair 60,00 € | Sold 300,00 € |
Sold 250,00 € |
80,00 € | ||
 |
|||||
| AMAL STRAIGHT PULL TWIST GRIP (Used) For Renovation. To fit one inch (25mm) H. Bars. 5 Inch, long, = 125 mm | |||||
| 120,00 € | |||||
| Electric / Elektrik Top Menue |
|||||
 |
|||||
| BSA most 1920-46 Lucas M110 Rear Lamp Replica ( NOT MADE IN INDIA, A Cornucopia Product ) |
|||||
| 128,00 € | |||||
