Ariel
Spares / Ersatzteile
All Parts + Post/Packing + (19%) VAT
Payment with C.Card (+6%)
or PayPal (+ our Charge)
or Bank Transfer


click pictures to enlarge

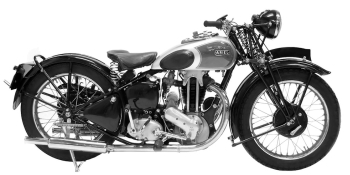

Ariel W/NG 1942 Ariel RH 1936
Valves / Ventile Engine / Motor Clutch , Gearbox / Kupplung , Getriebe Fork / Gabel Stands , Stays / Ständer , Streben Sundries / Verschiedenes Electric / Elektrik
 Valves / Ventile
Top   Menue
Ariel Square Four

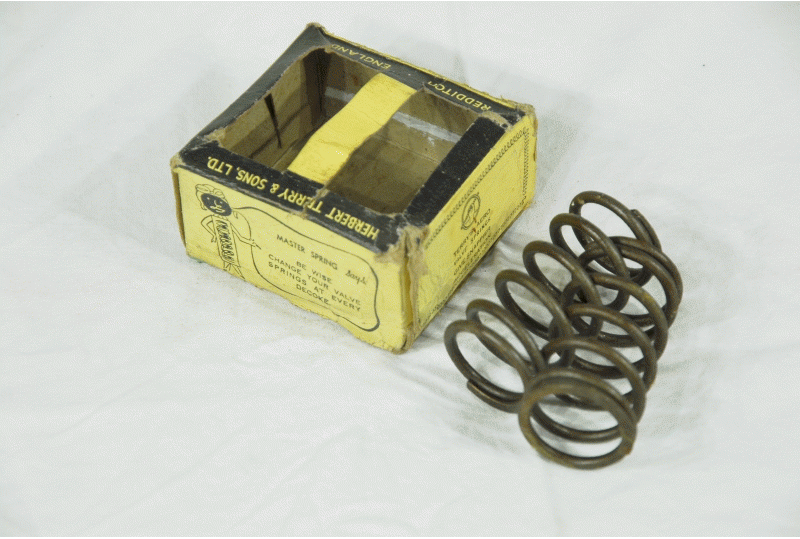

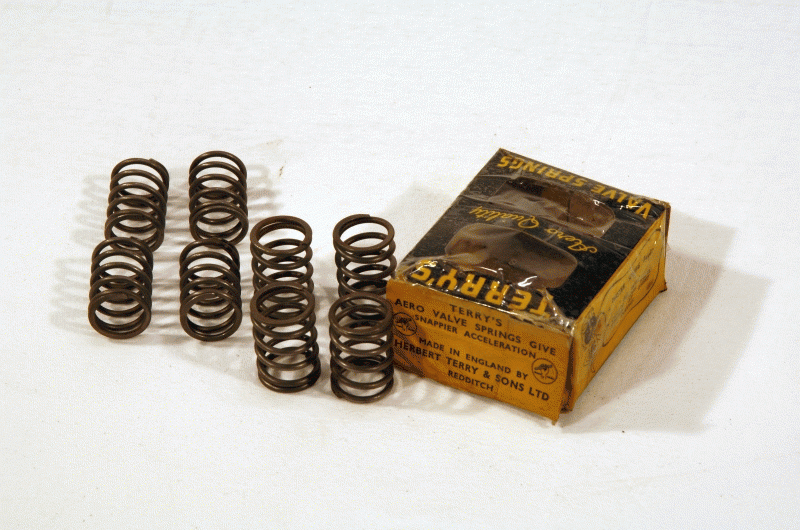

Valve Springs ( Set )
Terrys & Sons Genuine
fits 1931-36Square Four
( 500cc and 600cc )
( Limited amount in Stock )
Terrys Part No. VS18

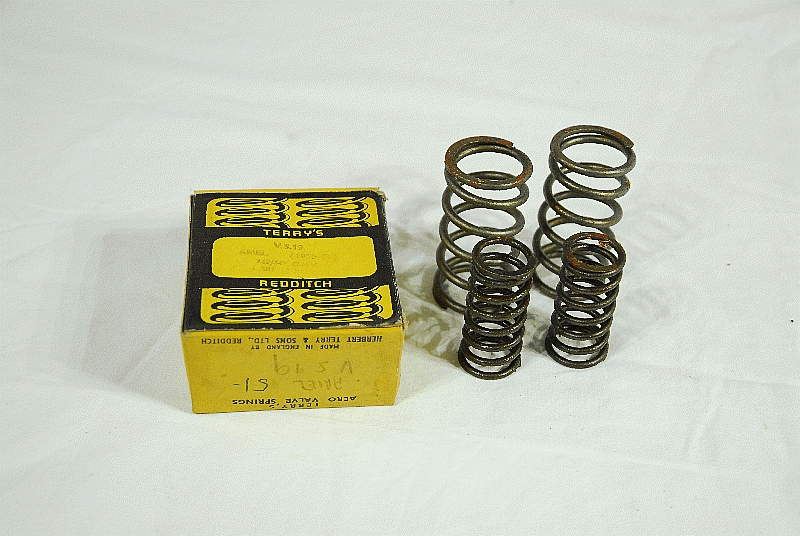

Ariel
Valve Springs
Genuine Terrys NOS
Terrys Part No. VS 19
fits 1935-50 350cc OHV, NF - NG - NH Singles
also fits 249cc OHV, Models LG - OG - LH - OH
Red Hunters 1935-40
Ariel Part No. 525-35 and 540-34.
Ariel

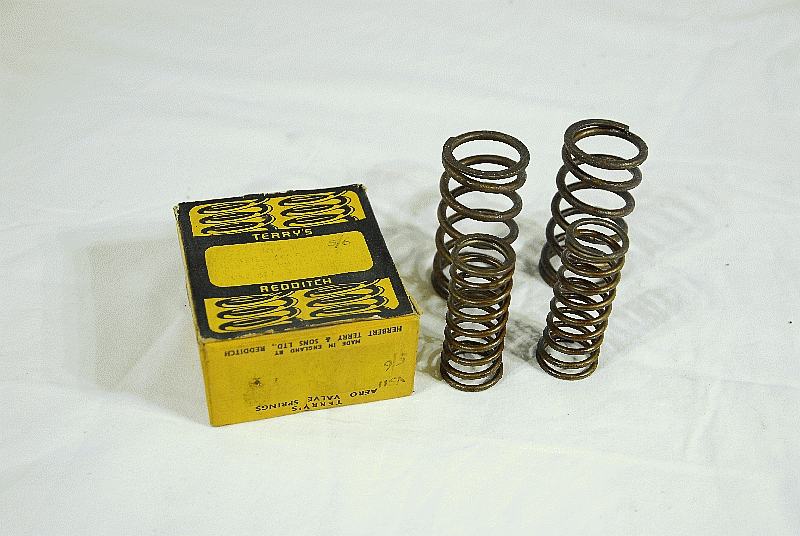

Terrys Valve Spring Set
Genuine
Two Pairs
fits 1935-50 350cc OHV Models NG, NH, Red Hunter and WNG Models
Terrys Part No. VS 19
Ariel
Terrys Valve Spring Set
Genuine
Two Pairs
fits 1932-35 250cc, 350cc OHV Models Red Hunter, MH, ME, NF, NG, NH
Terrys Part No. VS 11
Set 40,00 € 35,00 € Set 30,00 € Set 30,00 €

Ariel
Terrys Valve Spring Set
Genuine
Two Pairs
fits 1951-59 350cc OHV Red Hunter, NH
Terrys Part No. VS 469
Ariel
Terrys Valve Spring Set
Genuine
Eight Pairs
fits 1958-59 1000cc Model 4G Square Four
Terrys Part No. VS 518

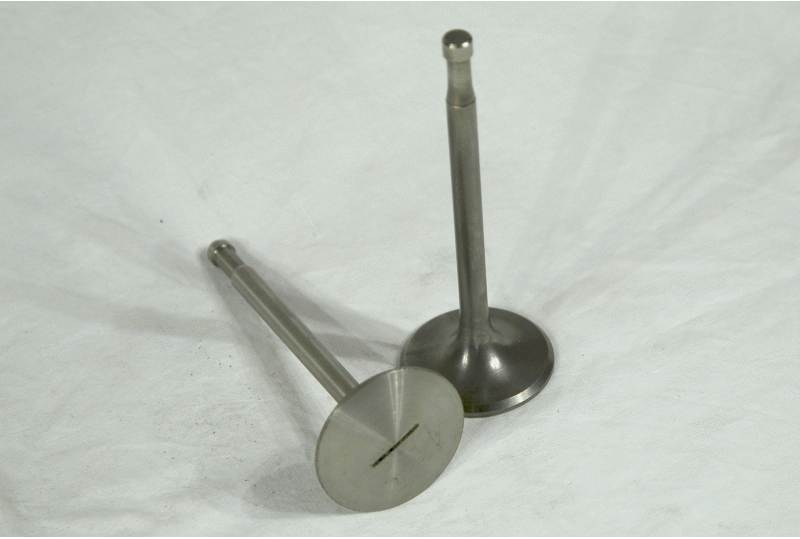

Ariel

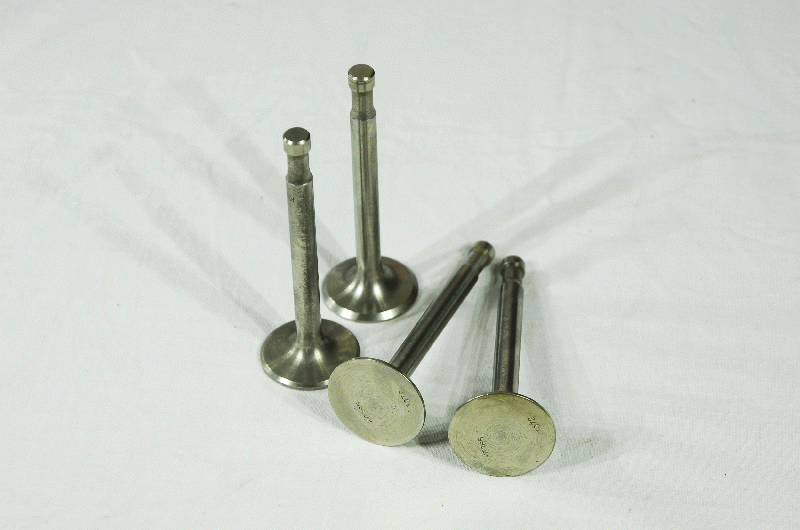

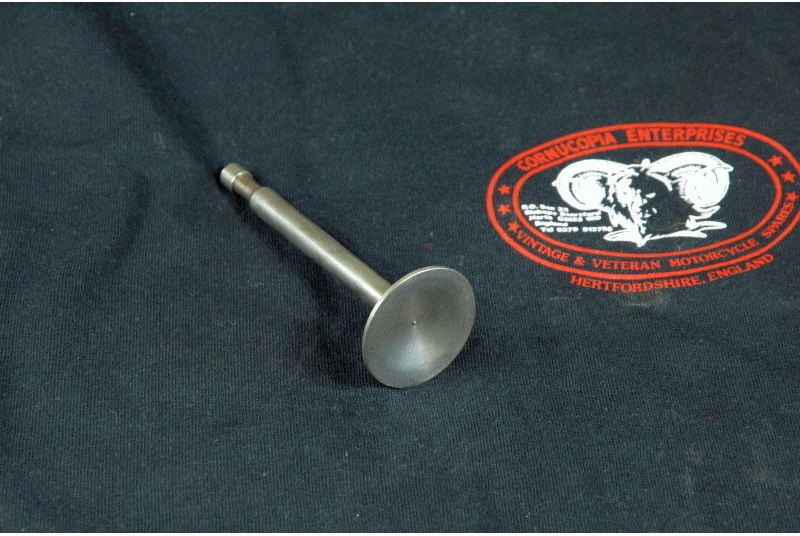

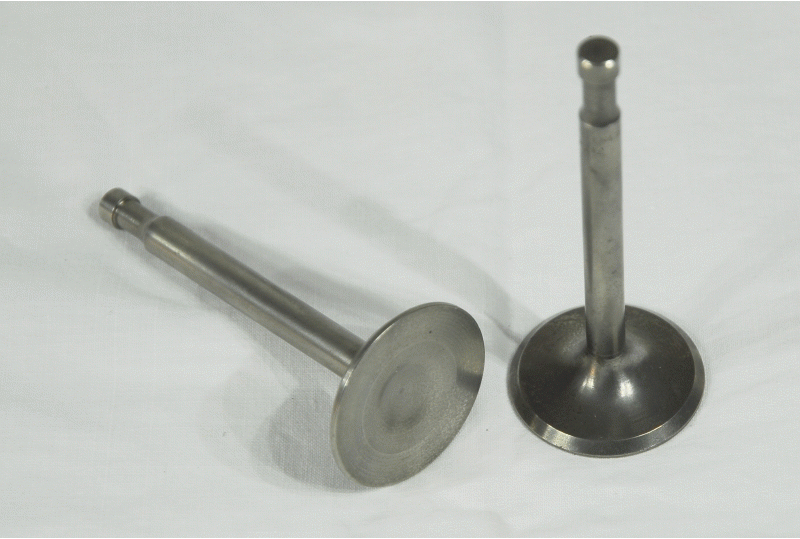

Ariel Valves Inlet and Exhaust
British Made James J.3067 EX and J.3064 IN
( NOS from the 1950s )
fits Ariel 350cc OHV NH Single, W/NG
( Inlet 1933-54, Exhaust 1935-54 )
( Can be ordered seperatley )
Ariel Part No. 423-33 and 453-35
Ariel

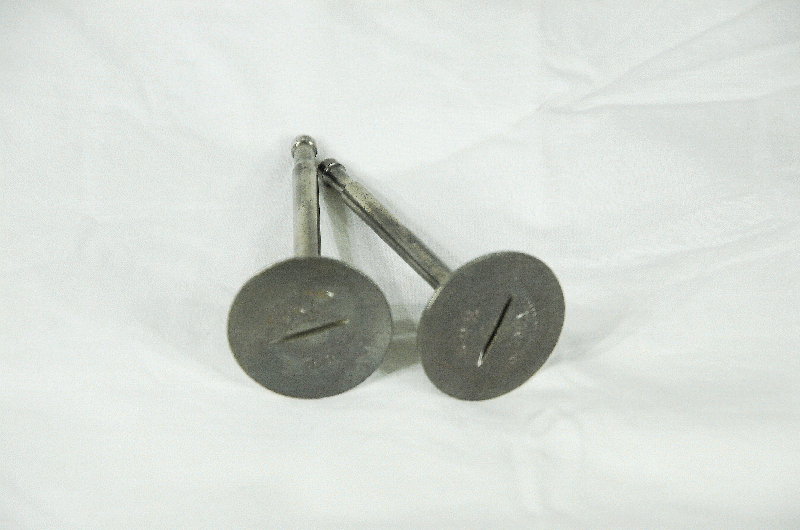

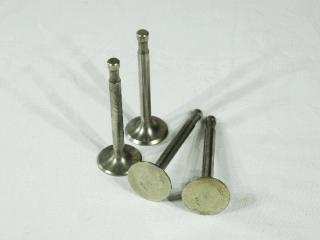

Ariel Valves Inlet and Exhaust
British Made James J.3070 ( In / Ex same )
( NOS from the 1950s )
fits 1936-51 Ariel Model VB 600cc SV
( Can be ordered seperatley )
Set 30,00 € Set 68,00 € each 15,60 € each 15,60 €

Ariel
Valves Exhaust
British made James J. No 3072
Genuine NOS from the 1950s
fits 1936-48 1000 cc
Square Four 4G, 4H
Ariel Part No. 455/37
Ariel
James Valves ( Inlet and Ex same )
British Made James J. No. 305
Genuine NOS from the 1950s
fits 1926-35 4 1/2, AB, SB, VA, VB 550cc SV

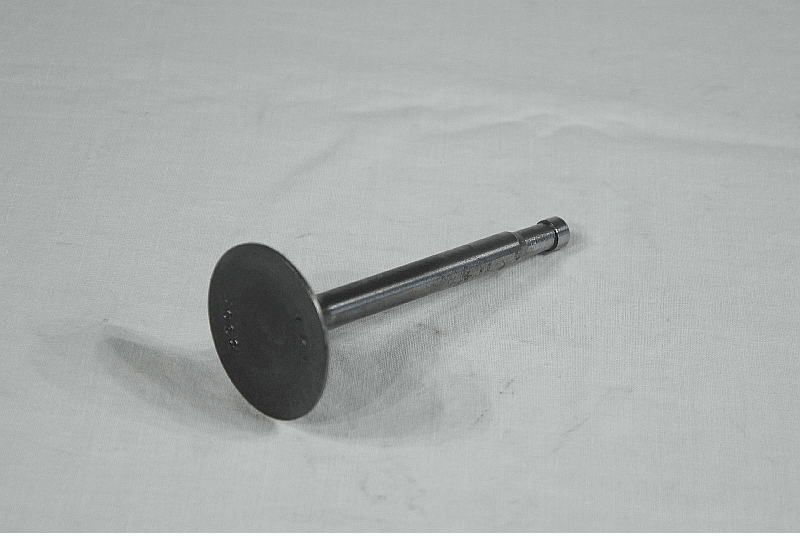

Ariel
- Exhaust Valves
British Made James Part No. 3076
fits 1947-53 KH, KG 500cc Twins
Ariel Part No K2-48 - also Inlet Valves
Head 1. 5/16. = 33,3; Stem .311 = 7,9mm; Length 3.17/32 = 89,7mm
fits 1947-54 K.G KH Twins
Ariel Part No K15-48
Ariel

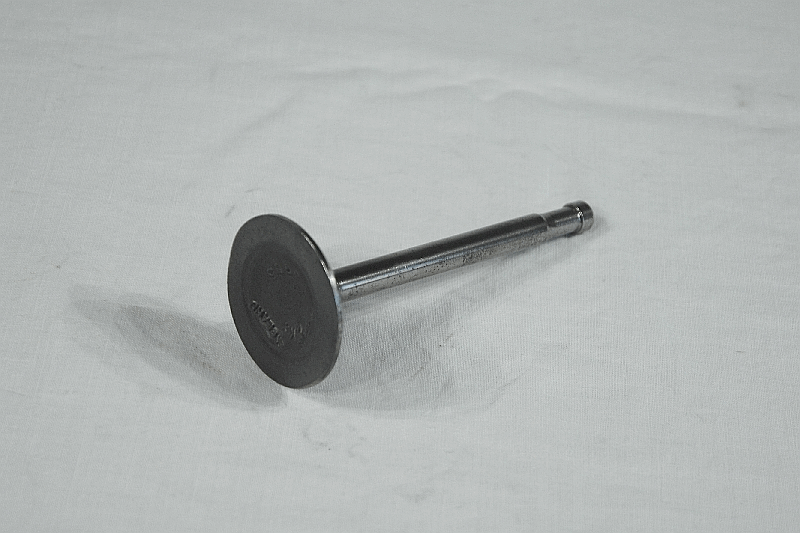

Valve Exhaust
NOS British James
Head 1. 23/32 Inch = 43,6mm, Length 3 29/32 Inch = 99,2mm,
Stem .370 Inch = 9,4mm
fits 1934-35 3 1/2, VG, VF3, 4 497cc OHV
each 14,00 € each 18.00 € each 14,00 € 20,00 €

Ariel
Valve Inlet
NOS British James
Head 1. 23/32 Inch = 43,6mm, Length 4 Inch = 101,6mm, Stem .343 Inch = 8,71mm
fits 1935-54 497cc OHV Models VH, VG, VGH
Ariel Part No. 415/35, A7489

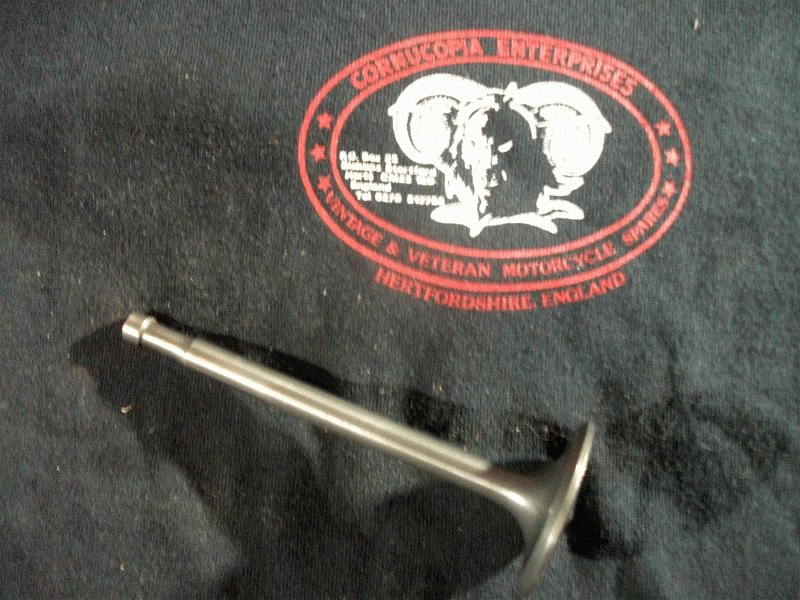

Ariel
Exhaust Valve
British Made NOS, James or Tranco 3084 & 4485
Head Dia 1 15/32 = 37,3mm, Stem .341 = 8,66mm, Length 3 7/8= 98,4mm ( under Valve Seat )
fits 1956-59 NH 50cc, Alloy Head Models
Ariel Part No. 453-56
Ariel

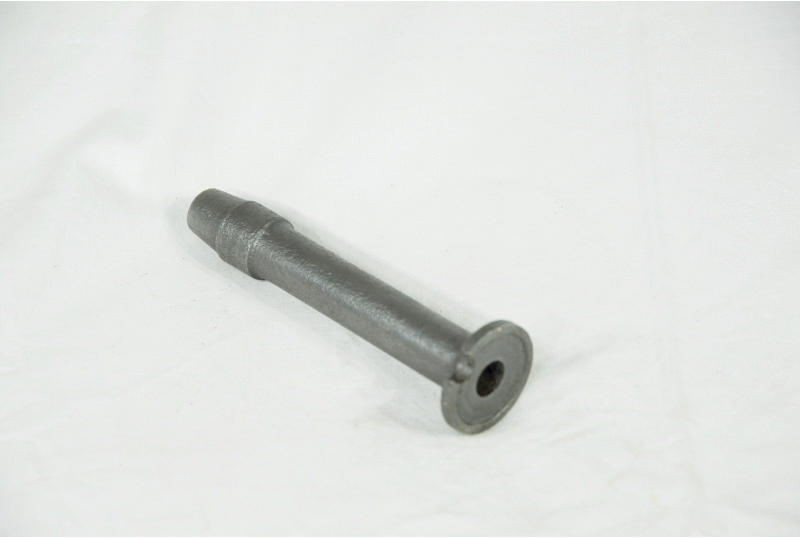

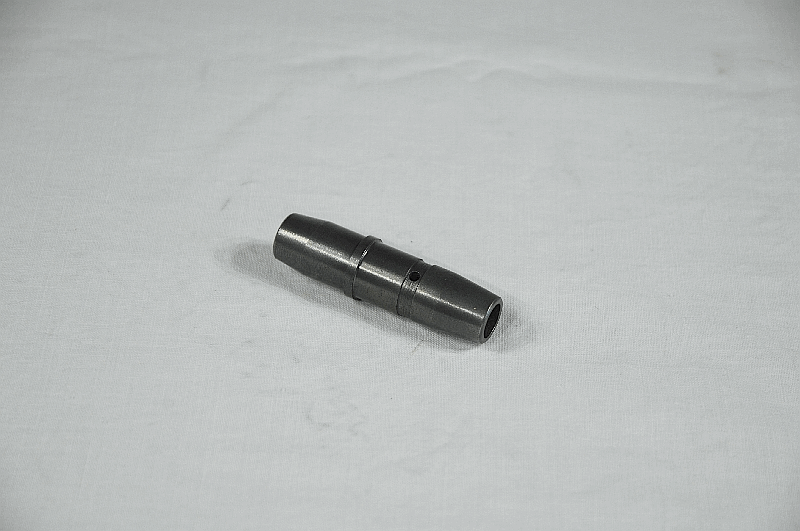

Valve Guide Inlet & Exhaust
NOS British James NOS
fits 1929-54 597cc & 550cc SV Models 4 1/4, AB, SB, VA, VB
Ariel Part No. 460/29
Ariel
Valve Guide Exhaust
NOS British James
fits 1936-54 497cc OHV Models VH, VG
Ariel Part No. 491/35
20,00 € 15,00 € each 10,00 € each 12,00 €
  Engine / Motor
Top   Menue
Ariel
( 1 ) Used Alloy Cylinder Head ( for Restoration )
with used Rockers, Shaft and V. Guides.
+ Pair New Valves In / Ex
fits Ariel Colt LH 197cc
( This Machine only built for one year 1954 ! )
Bead Blasted, needs some repair on broken fins
Valve seats good.
( 2 ) Used Ariel Colt L.H. Engine Cover 1954
( 3 ) James In / Ex Valves
British Made
fit 1954 Ariel Colt LH
J.3080 Inlet - J.3081 Exhaust
Ariel

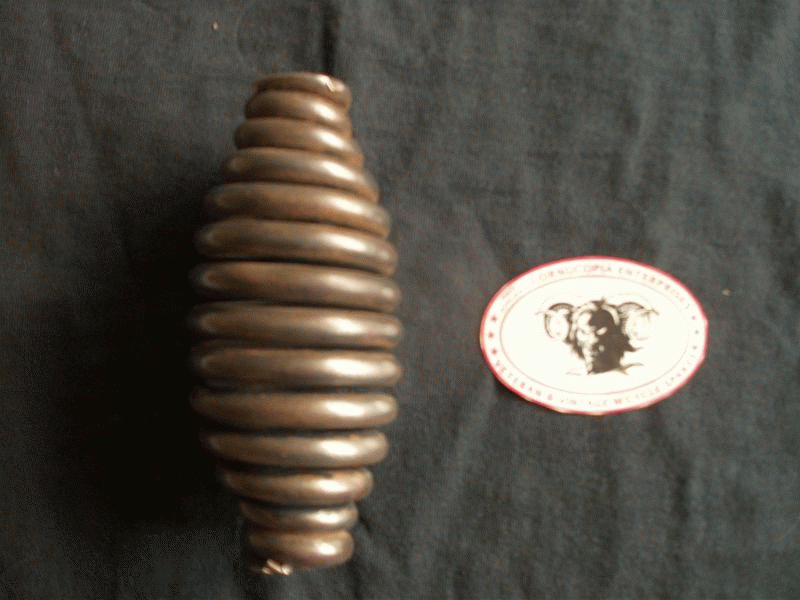

Crankshaft Shock Absorber Spring
Replica
fits 1941-45 350cc Model W/NG OHV Single
( and Various other models)
Ariel Part No. 1260-30
Ariel

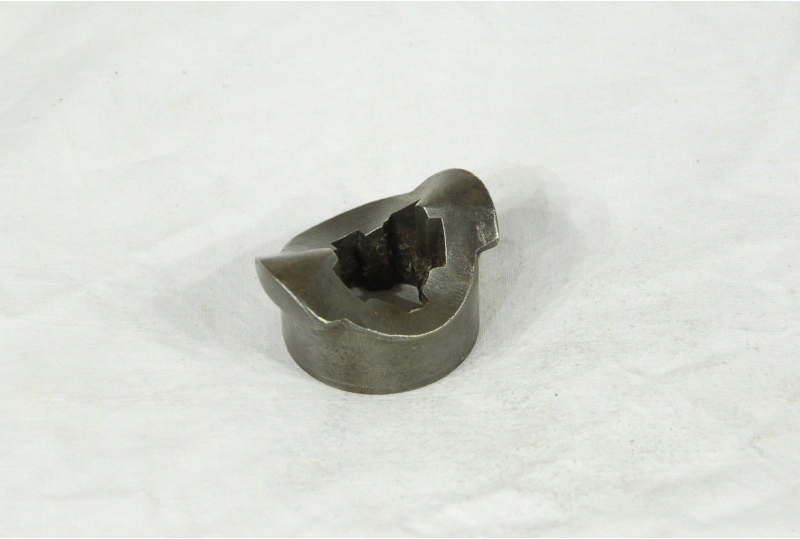

Crankshaft Sliding Member 1 17 / 32 in Outside Dia
Genuine NOS
fits 1941-45 350cc Model W/NG OHV Single
( and Various other Models)
Ariel Part No.1272-41
Ariel
Exhaust Cam + Camshaft Sprocket
Genuine ( Used )
both in usable condition,
( Fibre Teeth not chipped )
fits 1947-53 KH, KG 500cc Twins
Ariel Part No.K27-48, K13-48
( 1 ) 100,00 €
( 2 ) 30,00 €
( 3 ) each 12,00 €
28,00 € 45,00 € both 80,00 €

Ariel
Cylinder Head
Inlet bore size 23.6 mm
Genuine ( Used )
Bead blasted + Primer Coat
less Rockers, less all Valve Gear
Threads all good, no broken fins
Valve seats need grinding,
but in useable condition, not sunken
fits 1947-53 500cc KH, KG
Ariel Part No. K2-48

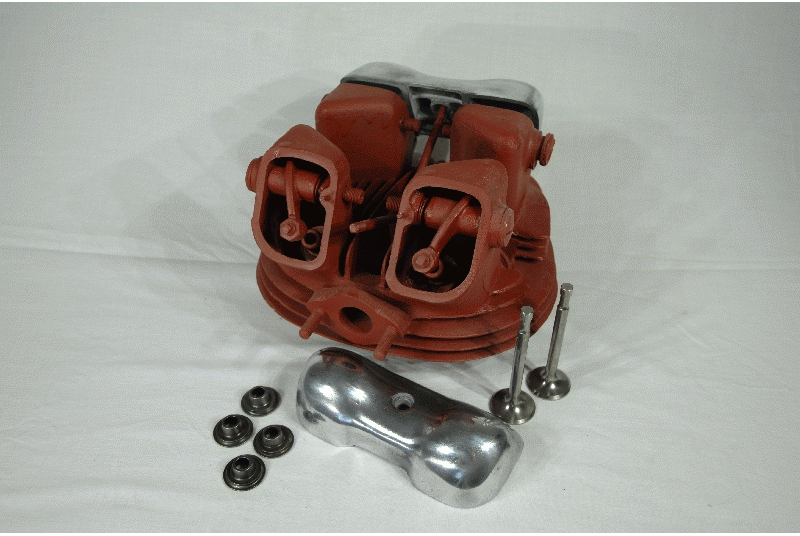

Ariel
Cylinder Head
Inlet bore size 23.6mm
Genuine ( Used )
Bead blasted + Primer coat
includes used Rockers,
Valve Caps, used Valve Guides,
( But may need replacing ),
used polished Alloy Rocker Covers +
Set new of Inlet K15-48 & Exhaust Valves K2-48
Threads all good, no broken fins
Valve seats, need grinding, but in useable condition, not sunken
fits 1947-53 500cc KH, KG
Ariel Part No. K2-48
Ariel

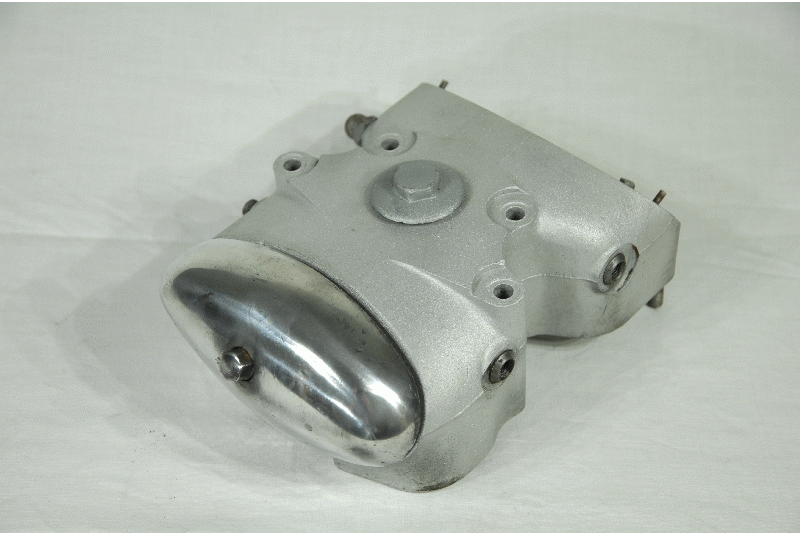

Rocker Box
Including Rockers
Genuine Ariel ( Used)
Bead Blasted, Polished Alloy
fits 350cc, 500cc OHV Singles
also Models W/NG etc.
( 1 ) Inlet Ariel Part No. 845-38
( 2 ) Exhaust Part No. 850-38
( 3 ) Inlet Rocker Pt No 911-38 NOS
Ariel
Rocker Cover
includes Rockers Spindels etc.
Genuine ( used )
Bead Blasted
One Polished Alloy Tappet Cover
fits Ariel Huntmaster 650cc Twin
80,00 € 120,00 € ( 1 ) 40,00 €
( 2 ) 50,00 €
( 3 ) 20,00 €
60,00 €

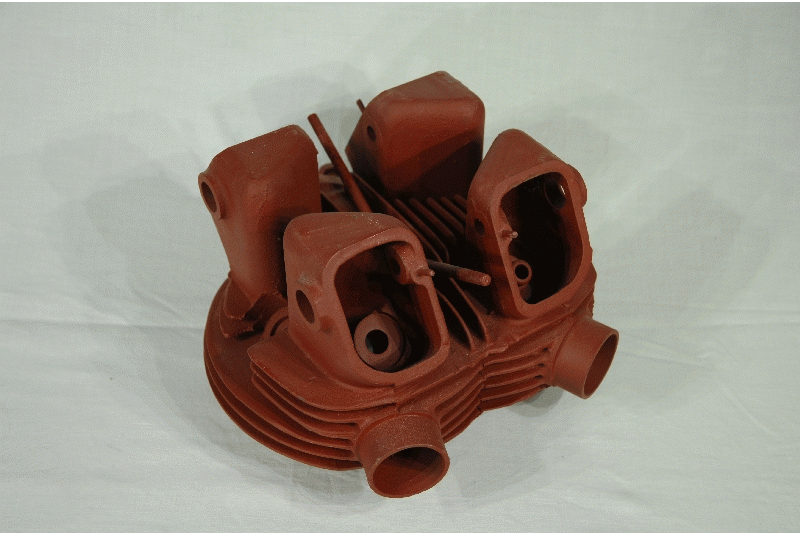

Ariel

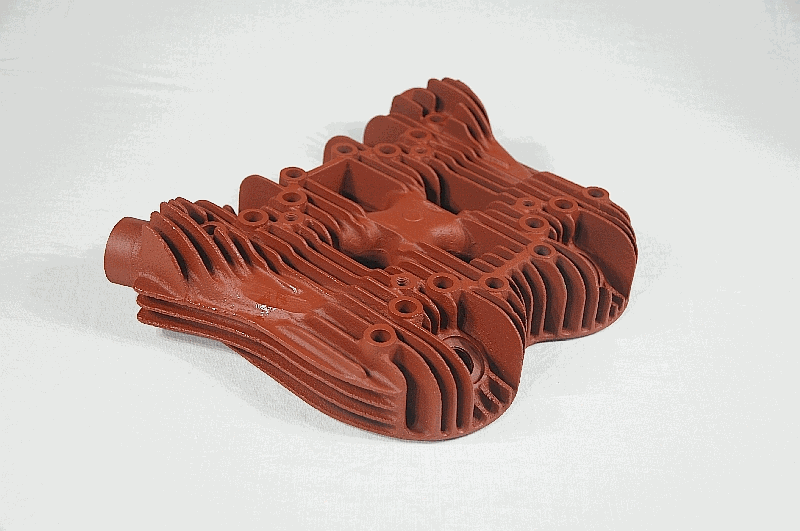

Cylinder Head
Genuine ( used )
Bead Blasted, Primer Coat
for Restoration
few Damaged Fins
fits 1936 600cc OHC Square Four
Ariel Part No. 48-36
Ariel

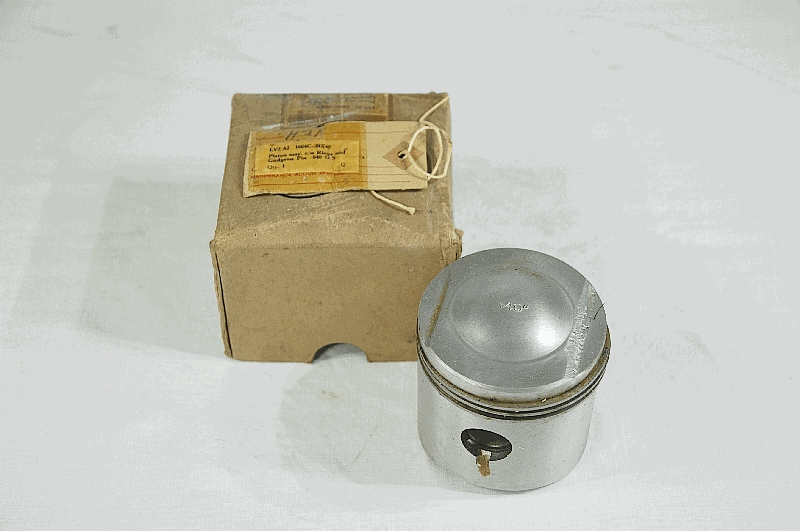

Piston
Genuine NOS
complete with Rings + Pin + 40 Thou = 1mm Over Size
Ariel Part No. LV7/A1 1664C-39X40 ( WD Part No. )
fits WNG 350cc OHV

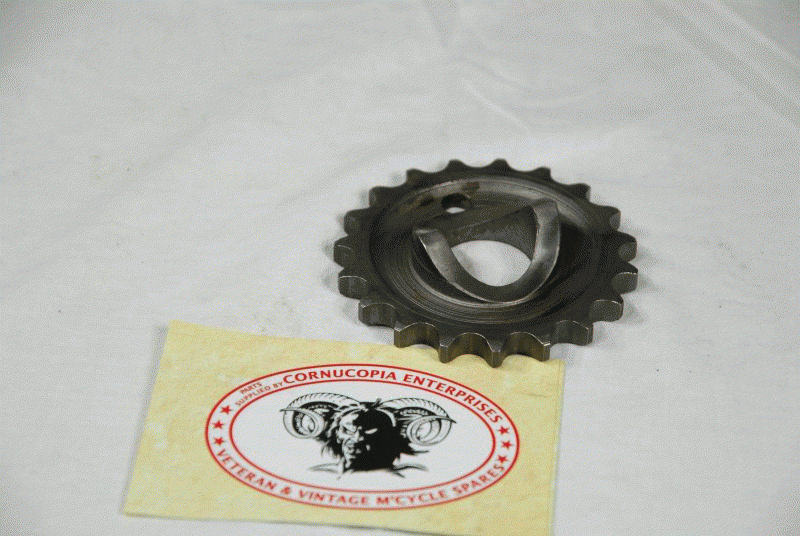

Ariel
Engine Sprockets 19 Teeth
Cam Lobe Thickness 7,5 mm
( 1 ) NOS ( with some Storage Marks )
( 2 ) good used ( very little Wear )
all 1/2 x 5/16 Chain Size )
fits 1938 Singles 350cc-500cc
Ariel Part No. 1335-30

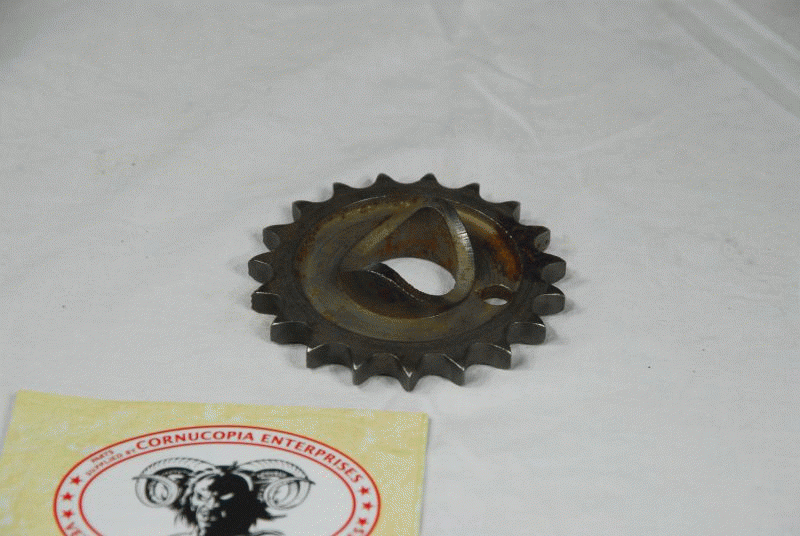

Ariel
Engine Sprockets 19 Teeth
NOS
Cam Lobe Thickness 5,31 mm
( all 1/2 x 5/16 Chain Size )
fits ? Model
150,00 € 50,00 € ( 1 ) 60,00 €
( 2 ) 40,00 €
60,00 €
  Clutch , Gearbox / Kupplung , Getriebe
Top   Menue

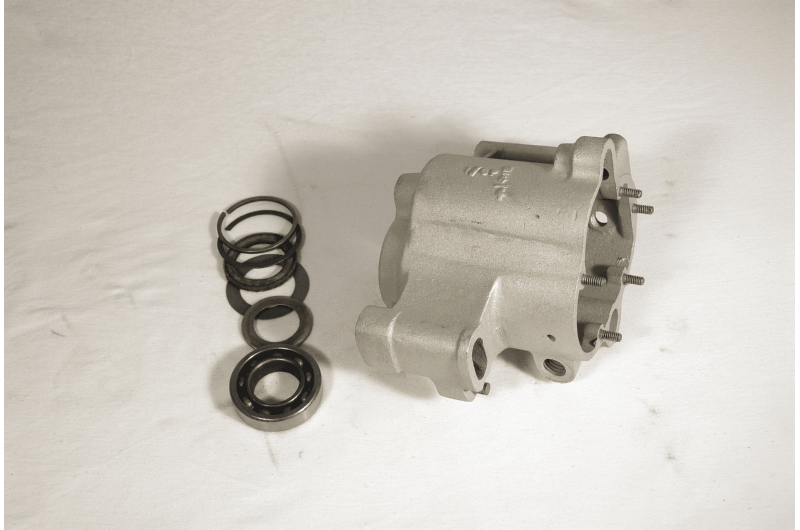

Ariel
Rear Gearbox Section Type CPSL
Genuine Ariel NOS
includes Mainshaft Bearing 3176-33 + washer + retaining ring
( fitted over 70 Years ago, could be usable ? but highly unlikely )
Bead blasted
( all internal Gears , Shafts etc. for this gearbox, in stock new and used ) Just Ask !
Ariel No. 3001-33C
Ariel
Clutch Centre Tab Washer
Genuine NOS
fits 1941-45 350cc Model W/NG OHV Single
( and Various other Models ) Ariel Part No. 3388-41

49,00 € 8,00 €
  Fork / Gabel
Top   Menue
52 53 54
Ariel
Middle Link
stamped D10-145 ( Girder Fork Bottom Link ) +
Middle Link 4633-39 - D10-144
NOS good used
Threaded L/S Hole, Plan Hole,
Bead Blasted
fits 1939-42 WNG 350cc + other Models
Ariel
Middle Link
used
matched Pair,
Bead Blasted
( Bottom Link ) possibly Part No. 4630-34, 4633-34
same Size as Type with check Spring Bracket
fits 1934-38 various Models

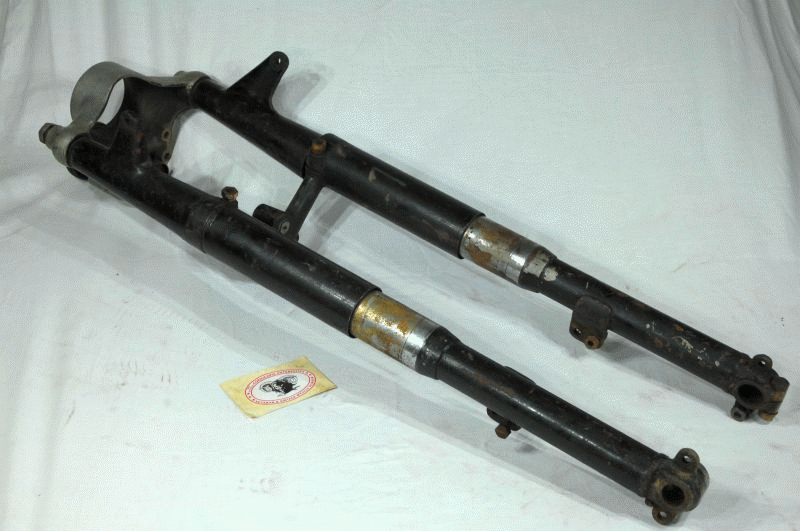

Ariel
Tele Forks complete Set
for Restoration
Handle Bar Clamp + U Bolts Missing,
Alloy Top Yolk, Speedo Type
Bottom Yoke is Steering Lock Type,
takes Alloy Full Wheel Hubs,

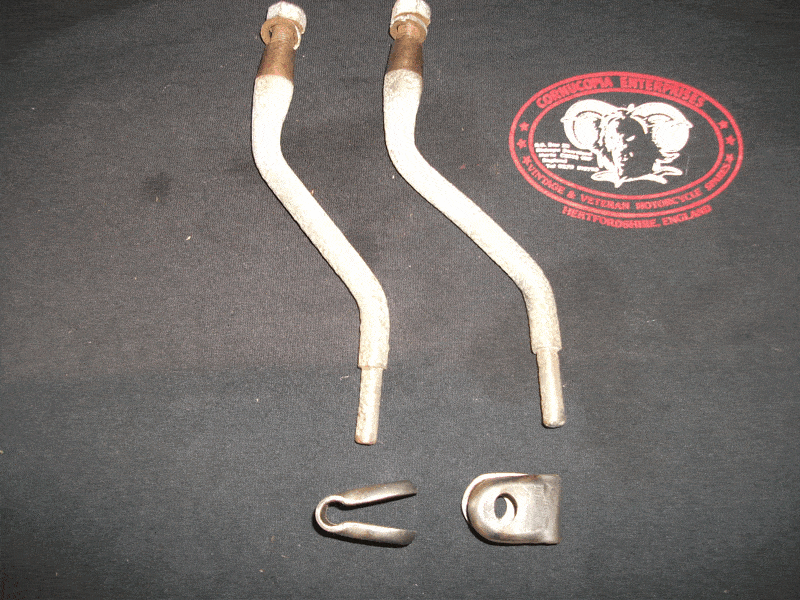

includes Head Lamp Brackets,
Damper Knob
fits 1955 many Models

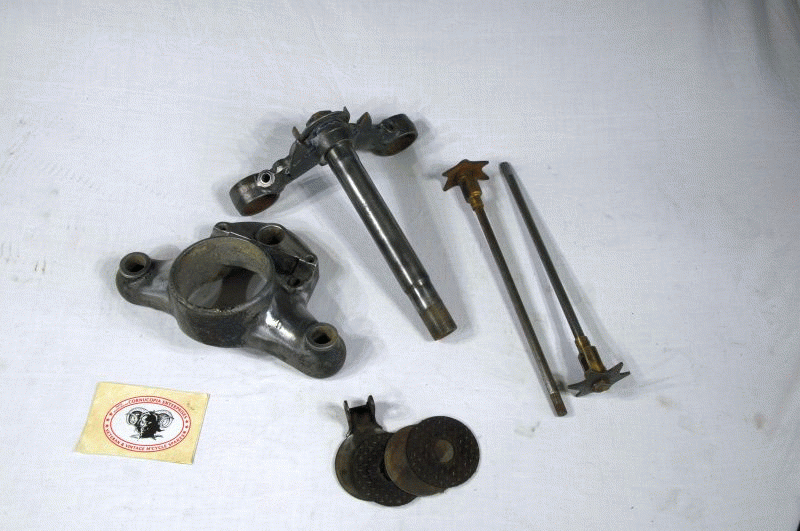

Ariel
many more Tele Fork Parts in Stock
( used )
Yokes, Fork Legs, Bottoms, Damper Parts

just ask ?
Pair 200,00 € Pair 160,00 € 300,00 € various Prices
  Stands , Stays / Ständer , Streben
Top   Menue

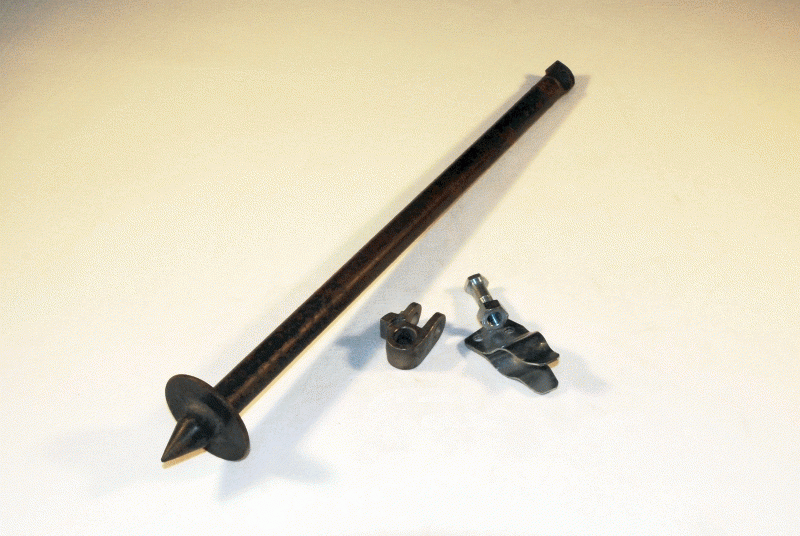

Ariel Model W/NG 350cc

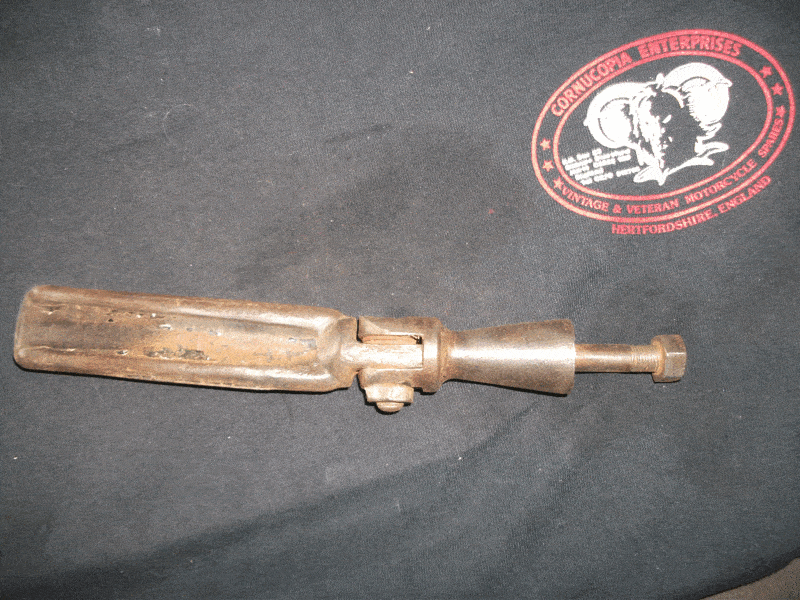

Ariel W.D. ( War Dept ) Field Prop Stand
( 1 ) Prop Stand Leg ( NOS )
Ariel Part No. 2450-40
( 2 ) Swivel Lug ( Replica )
( Fits between Leg and Frame )
Ariel Part No. 2460-40
( 3 ) Spring Clip for Stand Leg ( 2 Parts ) ( Replica )
Ariel Part No. 2462-40 and 2463-40
( 4 ) Swivel Lug Bolt + Nut ( Replica )
Ariel Part No. 0865

(1) 170,00 €
(2) 45,00 €
(3) 17,00 €
(4) 5,00 €

  Sundries / Verschiedenes
Top   Menue
Ariel

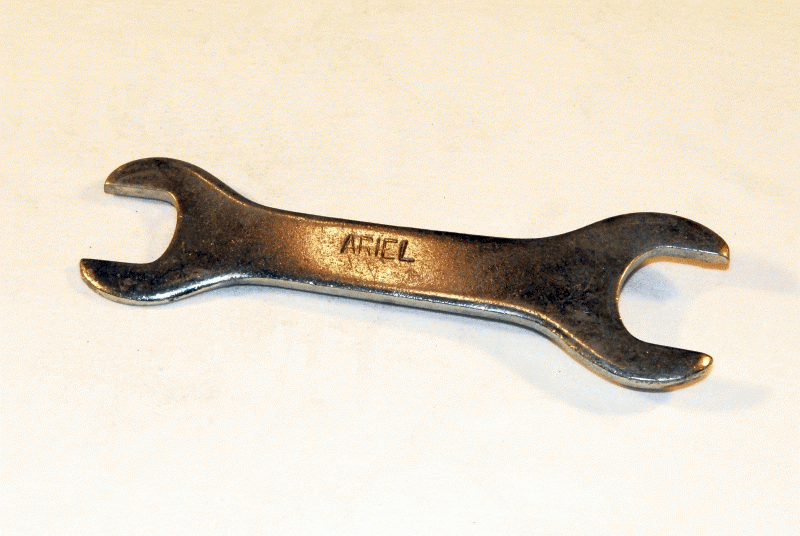

Genuine Ariel ( NOS ) Spanner
( Modern Zink Plated )
To fit Steering Head Nuts and
Wheel Cones
fits Single Cylinder Models 250cc
1937-39 Square Four Models
1936-38 Other Singles
Ariel Part No. 6606-27 and
Ariel Part No. 6606-30

(P.S. Modern Spanners are too large to fit bettween Bearings)
Smiths Chrome Glass Rim
(Free Standing) Smiths Rev Counter or Speedo
(Replica)
Ariel

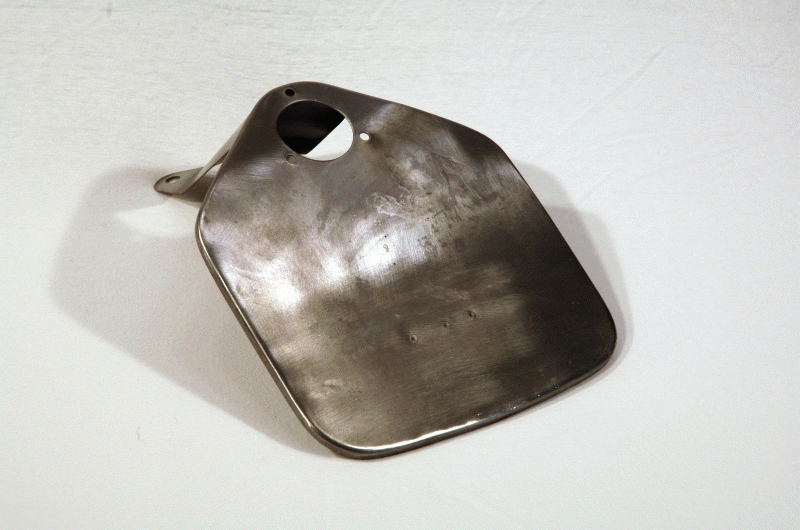

Rear Number Plate unpainted
(Replica)
fits 1948-52 all Models
fits 1948-49 Singles
500cc Twins Plunger Models
Ariel Part No. 5647-48
Ariel
Foot Rest Support ( Length 12.5cm )
Genuine NOS
fits 1939 250cc Singles
1936-39 Singles
1937-38 Square Fours
1939 Square Four ( Left H.Side only)
( Two Needed on most models)
Ariel Part No. 5375-29
15,00 € 16,80 € 65,00 € Pair 60,00 €

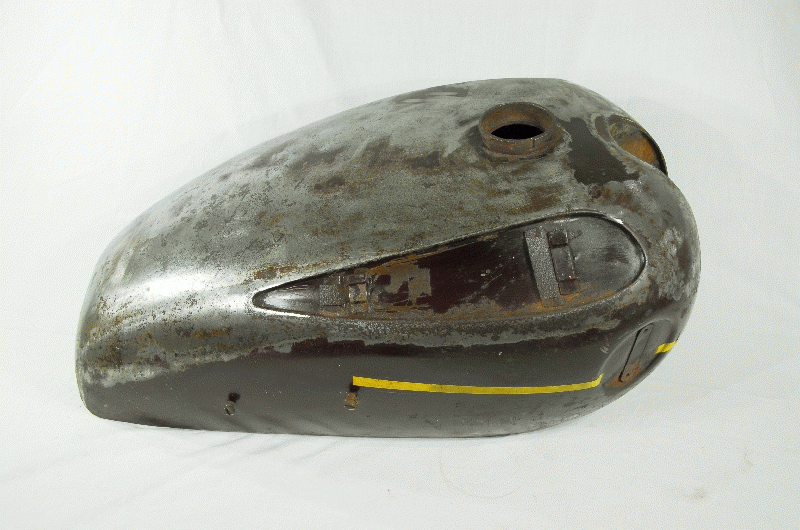

Ariel
Petrol Tank ( Used )
Genuine
Leak Tested, Dents Removed, needs Painting
includes Side Chrome Strips ( Used )
fits 1956 500cc KH Twin
( This Tank only made for one year, Very Rare )
Ariel

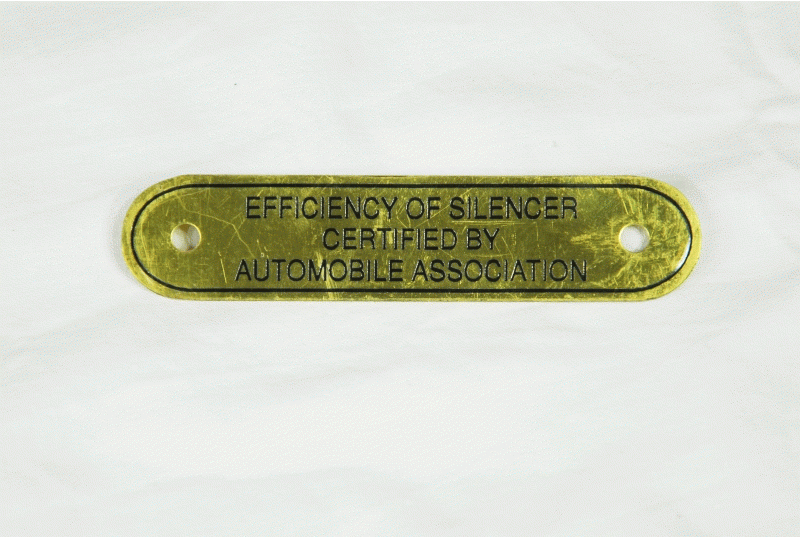

Replica Silencer Badge ( Brass )
with script
( Efficiency of Silencer Certified by Automobile Association )
fits 1928-30 Models
Ariel Part No. E8 / 750
Ariel WNG
Vokes Tubular Air Filter Brass Lable
Replica
fits Military Petrol Tank
Ariel
Speedo , Brake Drum Gear and
Speedo Gearbox Drive Pinion
Replica
fits Models WNG, NG and Others
( 1 ) Hub Gear 43 Teeth Part No. P52233
( 2 ) Speedo Gearbox Drive Pinion 14 Teeth Part No. P/M 50215
Sold
220,00 €
10,00 € 12,00 € ( 1 ) 70,00 €
( 2 ) 52,00 €

Ariel

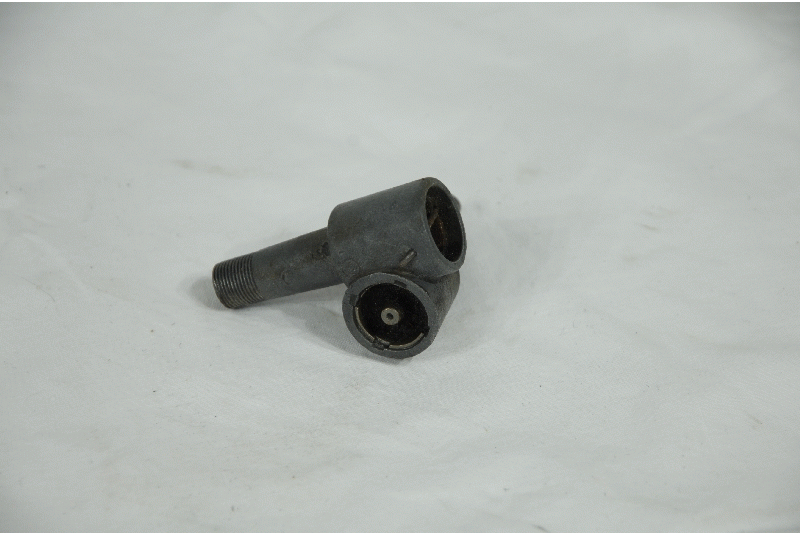

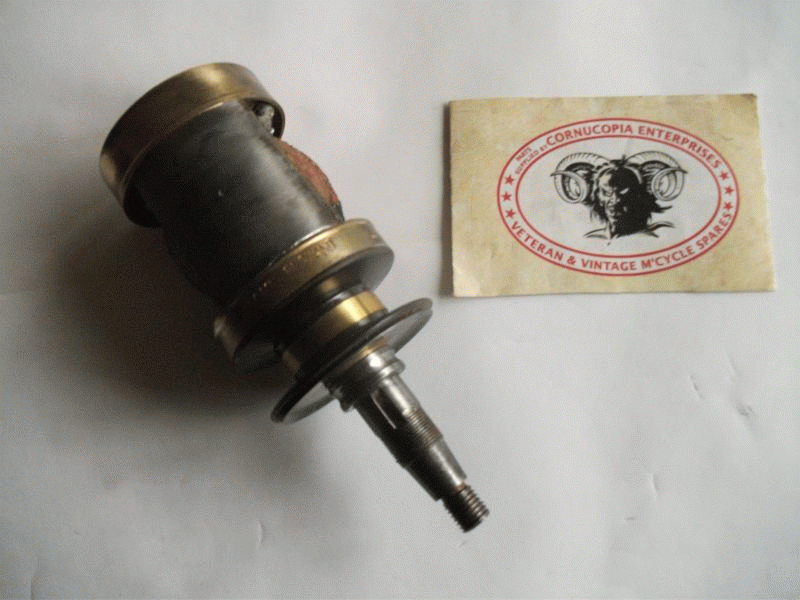

Smiths Speedo Drive Gearbox
Genuine NOS
fits Models WNG, NG and Others
Ariel

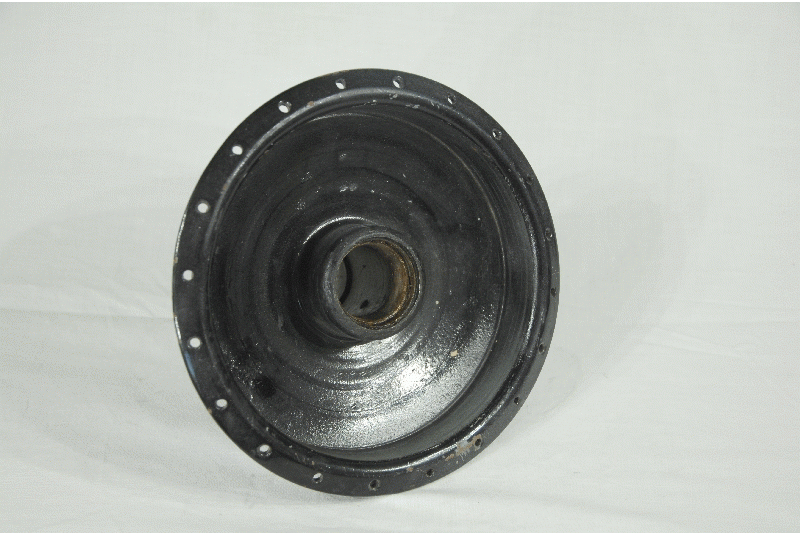

Front Hub, Bare
Genuine ( used )
Bead Blasted, primer coat
Drum Surface good
fits 1928 Models 500cc Models and Others
Ariel Part No. C14 / 23
various conditions, in stock

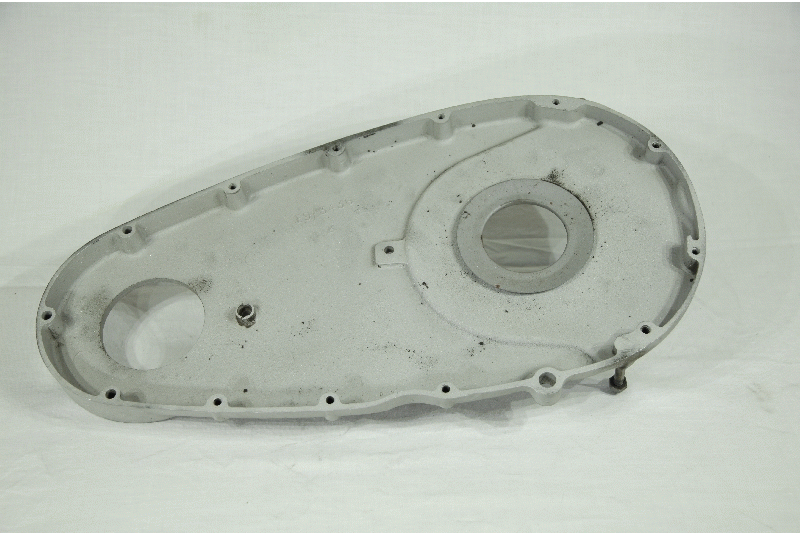

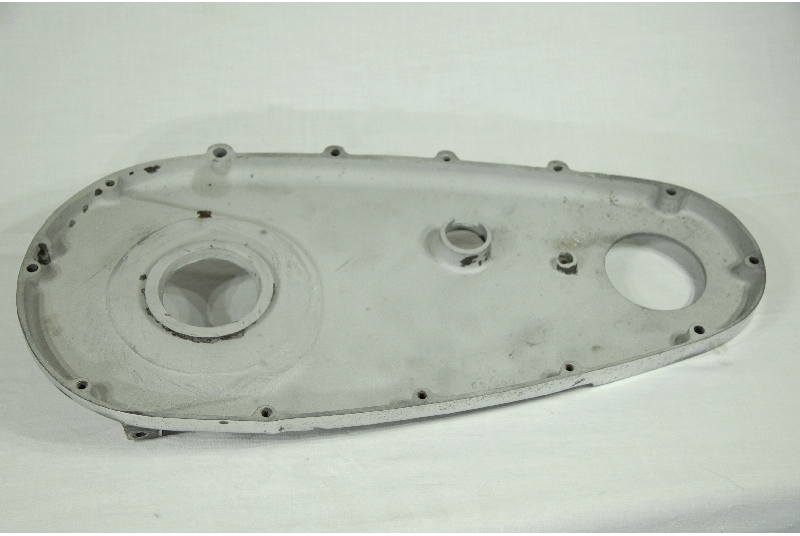

Ariel

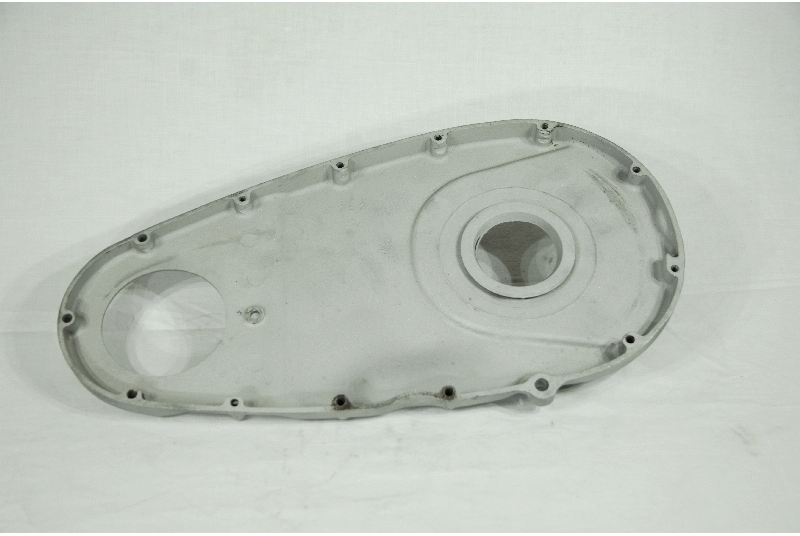

Inner Primary Chaincase
Genuine ( Used )
Bead Blasted , Polished
( Cast No. on Chaincase E.9 600 )
fits 1936-55 Singles Rigid, Plunger
( Many more, various models,
various conditions, in stock, just ask ! )

Ariel Part No. 5711.36

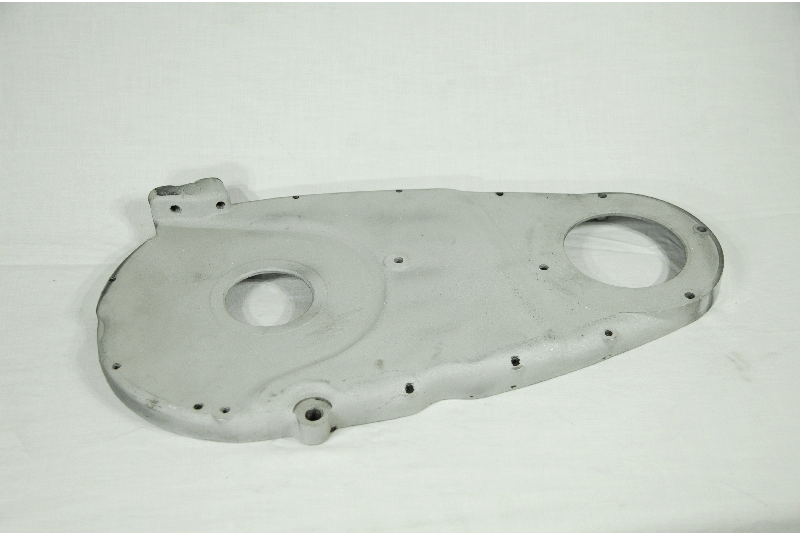

Ariel

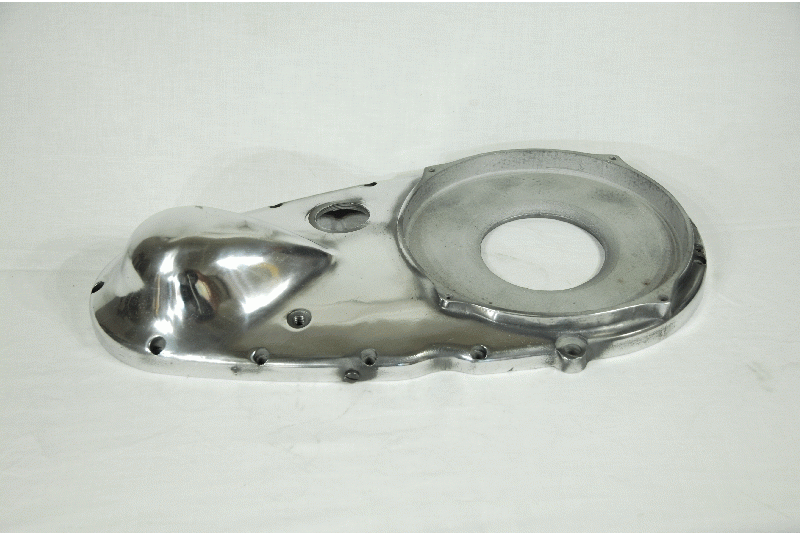

Outer Primary Chaincase
Genuine ( Used )
Bead Blasted, Polished
( Cast No. on Chaincase E9 / 3001 )
fits 1955 onwards Swing Arm Singles NH, VH, HS
( Many more, various models,
various conditions, in stock, just ask ! )
100,00 € 100,00 €
to 200,00 €
100,00 € 110,00 €

Ariel
Outer Primary Chaincase
Genuine ( Used )
Bead Blasted, Polished
( Cast No. on Chaincase E9 / 731 )
fits 1939-55 Singles Rigid, Plunger, K.H, Twins
( Many more, various models,
various conditions, in stock, just ask ! )

Ariel Part No. 5710-39
Ariel
Inner Primary Chaincase
Genuine ( Used )
Bead Blasted, Polished
Cast No. on Chaincase K400
( Various Types In stock )
fits 650cc Huntmaster Twins
Ariel
Inner Primary Chaincase
Genuine ( Used )
Bead Blasted, Polished
Cast No. on Chaincase K252
( Various Types In stock )
fits 650cc Huntmaster Twins
Ariel
Inner Primary Chaincase
Genuine (Used )
Bead Blasted, Polished
( Cast No. on Chaincase E.9 3436 )
fits Swing Arm Singles 350cc, 500cc
110,00 € 100,00 € 100,00 € 100,00 €

Ariel
Primary Chain Case Dome
Genuine ( used )
for Restoration
Bead Blasted, Primer Coat
Various in Stock
( Some deeper than others )
fits 1939-46 Models WNG 350cc etc.
Ariel Part No. 5702-39
Ariel
High level Ex Pipe
Replica
fits approx 1954-56 Ariel 500cc HT5 Trials
( For models with Alloy Head, Push over Type Fitting )
Ariel
Lower Chain Guard
Replica
fits 1954-55 Huntmaster Twins & Singles
Ariel Part No. 5722-54
Ariel
Petrol Cap Ariel
Genuine Ariel ( used )
needs Rechroming
( limited Amount )
Part No. 5012C.30
50,00 - 70,00 € unchromed 90,00 €
chromed 160,00 €
70,00 € 70,00 €
  Electric / Elektrik
Top   Menue
Ariel
Genuine Lucas Points Assy (NOS)
fits Ariel 600cc 1936-39
Ariel Square Fours 1936-39, 1946-38
Lucas Part No. 470533
Lucas Part No. 470542

Also fitted to the following Motorcycles fitted with MSL1 Magneto
1936 BSA Y13 V-Twin
1936 BSA 498cc
1936 Norton 350cc, 490cc and 596cc
1936 Brough Superior SS100 V-Twin
1947-50 Douglas 350cc Twin
1936 Royal Enfield 350ccSV and 570cc SV
1938 Royal Enfield 600cc OHV Twin
1936 O.K.Supream Mag Dyno Models
1937-48 Scott Twin Cylinder
1946-47 Vincent HRD V. Twin
1948 Zenith V.Twin
Lucas
Dummy Battery Case
( With King of the Road Logo )
Replica British Made
( Customer supplies and fits own Batery inside case )
fits most British Models
4 3/4 Inch x 3 5/8 In x 6 1/4 Inch ( High )
Lucas
Magneto Slip Ring
Genuine NOS
fits 1937-53 all Single Cylinder
Mag/Dyno Units, Models N1, MSL1,MO1/L
M20 / WNG, 16H, 3HW
Lucas Part No. 454496, 452467, 454495
Lucas
Switch Knob ( Handle )
Genuine
fits Lucas Head Lamp Switch Pt No U39, 31340 A
fits 1936-57 all 6 / 7 Inch Lucas H.Lamps
Lucas Part No. 351567
70,00 € 47,00 € 30,00 € 9,00 €

16
Lucas
Military H.Lamp Switch + Fixing Clip
Genuine NOS
( used together with Convoy Rear Lamp )
has extra T. Position, for the Tail Lamp
Lucas Part No. MT3/LU/351590
Ariel
Distributor Cap
Replica
fits 1931-34 500cc 4F31, 600cc 4F632 Square Fours ( limited Amount )
Ariel Part No. 1038-33
Lucas
Distributor Cap
Genuine NOS
fits 1936 1000cc Ariel 4G Square Fours
( limited Amount )
Lucas Part No. 400316
Lucas
Ammeters Model CZU27, 36184B
Genuine Lucas
used need Renovation
Type with Bulb Holder at rear
Limited amount in stock
80,00 € 240,00 € 100,00 € each 80,00 €

38 38a
Lucas
Convoy Tail Lamp
Genuine, NOS
stamped L-WD-MCTIA
Lucas
Convoy Tail Lamp
Genuine, used
for Restoration
( without Part Nos. )
limited Stocks

80,00 € 65,00 €
